Resistors / Metal Film Resistors / RNF14FTC3K32
Datasheets

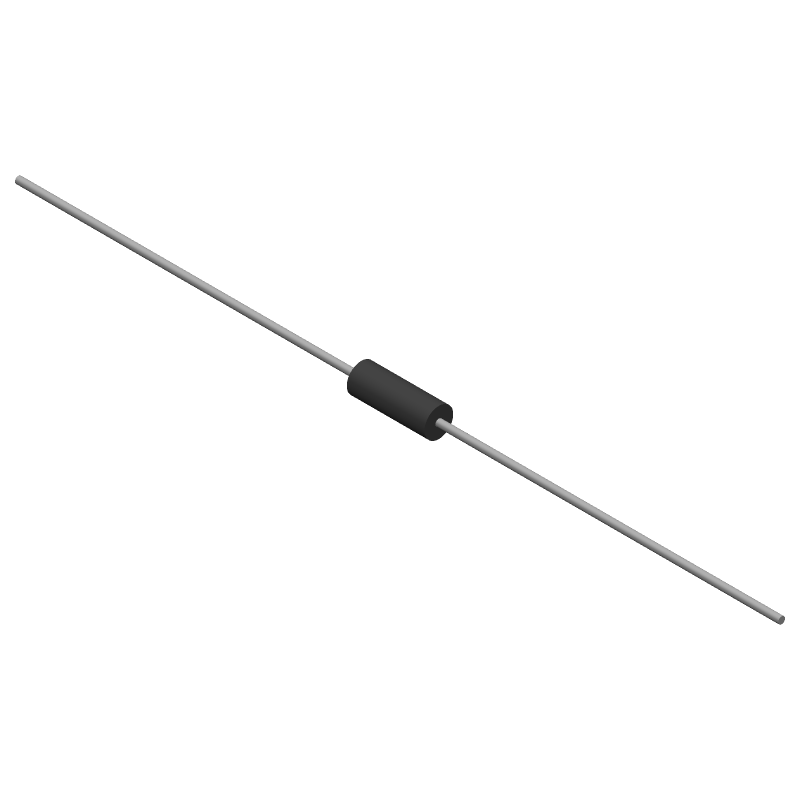

RNF14FTC3K32 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

Part Details for RNF14FTC3K32 by SEI Stackpole Electronics Inc

Results Overview of RNF14FTC3K32 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

RNF14FTC3K32 Information

RNF14FTC3K32 by SEI Stackpole Electronics Inc is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RNF14FTC3K32

Part # Distributor Description Stock Price Buy
DISTI # RNF14FTC3K32-ND
DigiKey RES 3.32K OHM 1% 1/4W AXIAL Min Qty: 5000 Lead time: 22 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.0155
$0.0155 Buy Now
DISTI # RNF14FTC3K32
Avnet Americas Res Metal Film 3.32K Ohm 1% 1/4W ?50ppm/?C Conformal AXL Thru-Hole T/R - Tape and Reel (Alt: RNF14FTC3K32) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0193
  • 10,000 $0.0190
  • 20,000 $0.0187
  • 30,000 $0.0184
  • 40,000 $0.0181
$0.0181 / $0.0193 Buy Now
DISTI # 708-RNF14FTC3K32
Mouser Electronics Metal Film Resistors - Through Hole RES, MF, 1/4W, 3.32 Kohm, 1%, 50 ppm RoHS: Compliant 0
  • 5,000 $0.0160
$0.0160 Order Now
Onlinecomponents.com General Purpose Metal Film Resistor - 3.32 kohm ±1% - 0.25W - Body: 6.35 x 2.35mm Dia - Thru Hole RoHS: Compliant 0
  • 5,000 $0.0214
  • 10,000 $0.0200
  • 20,000 $0.0188
  • 40,000 $0.0183
$0.0183 / $0.0214 Buy Now
NAC RESISTOR, METAL FILM, 1/4W, 3.32 Kohm, 1%, 50 ppm - Metal Film Resistor - Standard RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 0
  • 5,000 $0.0430
  • 25,000 $0.0370
  • 125,000 $0.0325
$0.0325 / $0.0430 Buy Now

Part Details for RNF14FTC3K32

RNF14FTC3K32 Part Data Attributes

Parametric Data
RNF14FTC3K32 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RNF14FTC3K32 SEI Stackpole Electronics Inc Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.90
Factory Lead Time 22 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature FLAME PROOF, PRECISION
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.56 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.35 mm
Package Length 6.35 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method TR, 12 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 3320 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 250 V

Alternate Parts for RNF14FTC3K32

This table gives cross-reference parts and alternative options found for RNF14FTC3K32. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RNF14FTC3K32, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RNF1/4T23.32K1%R SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT RNF14FTC3K32 vs RNF1/4T23.32K1%R
RNF14FBC3K32 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT RNF14FTC3K32 vs RNF14FBC3K32
NMR25F3321TR NIC Components Corp Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED RNF14FTC3K32 vs NMR25F3321TR
RN55C3321F SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, -50,50ppm/Cel, RNF14FTC3K32 vs RN55C3321F
PRNF14FAC3K32 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, -50,50ppm/Cel, RNF14FTC3K32 vs PRNF14FAC3K32
RNF1/4T23.32K1%A SEI Stackpole Electronics Inc Check for Price RESISTOR, METAL FILM, 0.25W, 1%, 50ppm, 3320ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT RNF14FTC3K32 vs RNF1/4T23.32K1%A
RNF14FNC3K32 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, -50,50ppm/Cel, RNF14FTC3K32 vs RNF14FNC3K32
NMR25F3321TRF NIC Components Corp Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT RNF14FTC3K32 vs NMR25F3321TRF
RNF1/4T23.32K1%T SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, -50,50ppm/Cel, RNF14FTC3K32 vs RNF1/4T23.32K1%T
PRNF14FNC3K32 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 3320ohm, 250V, 1% +/-Tol, -50,50ppm/Cel, RNF14FTC3K32 vs PRNF14FNC3K32

RNF14FTC3K32 Related Parts

RNF14FTC3K32 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RNF14FTC3K32 can be found in the Stackpole Electronics Inc. application note AN-114, which provides detailed guidelines for PCB layout and land pattern design.

  • RNF14FTC3K32 has a high power rating, and proper thermal management is crucial. Engineers should ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the component temperature within the recommended operating range.

  • While the datasheet specifies the maximum operating voltage, engineers should derate the voltage by 10-15% to ensure reliable operation and to account for voltage spikes or transients.

  • RNF14FTC3K32 is designed for general-purpose use, but it may not be suitable for high-frequency applications (>100 kHz) due to its internal construction and materials. Engineers should consult with Stackpole Electronics Inc. or consider alternative components for high-frequency designs.

  • To ensure reliability in humid environments, engineers should consider conformal coating, potting, or encapsulation to protect the component from moisture. Additionally, they should follow proper storage and handling procedures to prevent moisture absorption.
