Resistors / Thin Film Resistors / RNCF0805DTE20R0
Datasheets

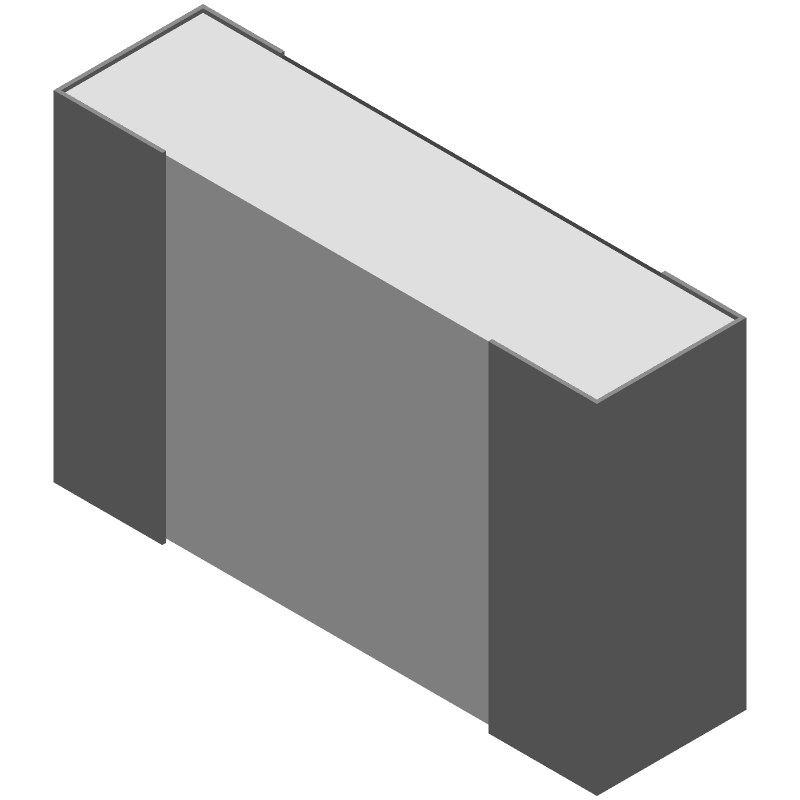

RNCF0805DTE20R0 by: SEI Stackpole Electronics Inc

Fixed Resistor, Thin Film, 0.25W, 20ohm, 150V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RNCF0805DTE20R0 by SEI Stackpole Electronics Inc

Results Overview of RNCF0805DTE20R0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RNCF0805DTE20R0 Information

RNCF0805DTE20R0 by SEI Stackpole Electronics Inc is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RNCF0805DTE20R0

Part # Distributor Description Stock Price Buy
DISTI # 738-RNCF0805DTE20R0CT-ND
DigiKey RES SMD 20 OHM 0.5% 1/4W 0805 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 97052
In Stock
  • 1 $0.1000
  • 10 $0.0270
  • 50 $0.0240
  • 100 $0.0226
  • 500 $0.0198
  • 1,000 $0.0187
  • 5,000 $0.0178
  • 10,000 $0.0140
  • 15,000 $0.0134
  • 25,000 $0.0127
  • 35,000 $0.0127
  • 50,000 $0.0126
$0.0126 / $0.1000 Buy Now
DISTI # RNCF0805DTE20R0
Avnet Americas - Tape and Reel (Alt: RNCF0805DTE20R0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel 45000 Factory Stock
  • 5,000 $0.0152
  • 10,000 $0.0150
  • 20,000 $0.0148
  • 30,000 $0.0145
  • 40,000 $0.0143
$0.0143 / $0.0152 Buy Now
DISTI # 708-RNCF0805DTE20R0
Mouser Electronics Thin Film Resistors - SMD 20Ohms 0805 25ppm 0.5% Precision AEC-Q200 RoHS: Compliant 19258
  • 1 $0.1000
  • 10 $0.0260
  • 100 $0.0250
  • 500 $0.0210
  • 5,000 $0.0170
  • 10,000 $0.0130
  • 25,000 $0.0120
$0.0120 / $0.1000 Buy Now
Onlinecomponents.com Precision Thin Film Chip Resistor - 20 ohm ±0.5% - SMD 0805 - Tape&Reel RoHS: Compliant 45000 Factory Stock
  • 5,000 $0.0171
  • 10,000 $0.0160
  • 20,000 $0.0150
  • 40,000 $0.0146
$0.0146 / $0.0171 Buy Now
DISTI # 68393868
Verical Res Thin Film 0805 20 Ohm 0.5% 0.25W(1/4W) ±25ppm/°C Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Americas - 45000
  • 5,000 $0.0684
  • 20,000 $0.0625
  • 30,000 $0.0581
  • 40,000 $0.0548
$0.0548 / $0.0684 Buy Now
NAC RESISTOR PRECISION, 20 ohm, 0805, 0.5%, 25 ppm - Thin Film - Precision RoHS: Compliant Min Qty: 1 Package Multiple: 5000 45000
  • 5,000 $0.0400
  • 25,000 $0.0340
  • 125,000 $0.0300
$0.0300 / $0.0400 Buy Now
Master Electronics Precision Thin Film Chip Resistor - 20 ohm ±0.5% - SMD 0805 - Tape&Reel RoHS: Compliant 45000 Factory Stock
  • 5,000 $0.0171
  • 10,000 $0.0160
  • 20,000 $0.0150
  • 40,000 $0.0146
$0.0146 / $0.0171 Buy Now

Part Details for RNCF0805DTE20R0

RNCF0805DTE20R0 Part Data Attributes

Parametric Data
RNCF0805DTE20R0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RNCF0805DTE20R0 SEI Stackpole Electronics Inc Fixed Resistor, Thin Film, 0.25W, 20ohm, 150V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 20 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.5%
Working Voltage 150 V

RNCF0805DTE20R0 Related Parts

RNCF0805DTE20R0 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RNCF0805DTE20R0 is a rectangular pad with a size of 0.8mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.

  • Yes, RNCF0805DTE20R0 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the self-resonant frequency (SRF) of the component, which is around 2.5 GHz, and ensure that the operating frequency is below the SRF to avoid resonance issues.

  • The TCR of RNCF0805DTE20R0 is ±100 ppm/°C, which means that the resistance value may change by ±1% over a 10°C temperature range. This can affect the overall accuracy and stability of the circuit, especially in precision applications. Engineers should consider the TCR when designing the circuit and ensure that the component is operated within the specified temperature range.

  • Yes, RNCF0805DTE20R0 is compatible with lead-free soldering processes, including reflow and wave soldering. The component is designed to withstand the higher temperatures associated with lead-free soldering, and the manufacturer recommends a peak reflow temperature of 260°C.

  • To prevent damage and ensure reliability, RNCF0805DTE20R0 should be stored in a dry, cool place, away from direct sunlight and moisture. The component should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent electrostatic discharge (ESD) damage.
