RNCF0603BTS21K5 Information
RNCF0603BTS21K5 by SEI Stackpole Electronics Inc is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RNCF0603BTS21K5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
738-RNCF0603BTS21K5CT-ND
|
DigiKey | RES 21.5K OHM 0.1% 1/10W 0603 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1037 / $0.3500 | Buy Now |
|
DISTI #
RNCF0603BTS21K5
|
Avnet Americas | - Tape and Reel (Alt: RNCF0603BTS21K5) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.0979 / $0.1016 | Buy Now |
|
DISTI #
708-RNCF0603BTS21K5
|
Mouser Electronics | Thin Film Resistors - SMD RES PREC, 21.5 Kohm, 0603, 0.1%, 15 ppm RoHS: Compliant | 0 |
|
$0.1030 | Order Now |
|
|
Onlinecomponents.com | Precision Thin Film Chip Resistor - 21.5 kohm ±0.1% - SMD 0603 - Tape&Reel RoHS: Compliant | 0 |
|
$0.0980 / $0.1140 | Buy Now |
|
|
NAC | RESISTOR PRECISION, 21.5 Kohm, 0603, 0.1%, 15 ppm - Thin Film - Precision RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | 0 |
|
$0.2000 / $0.2670 | Buy Now |
Part Details for RNCF0603BTS21K5

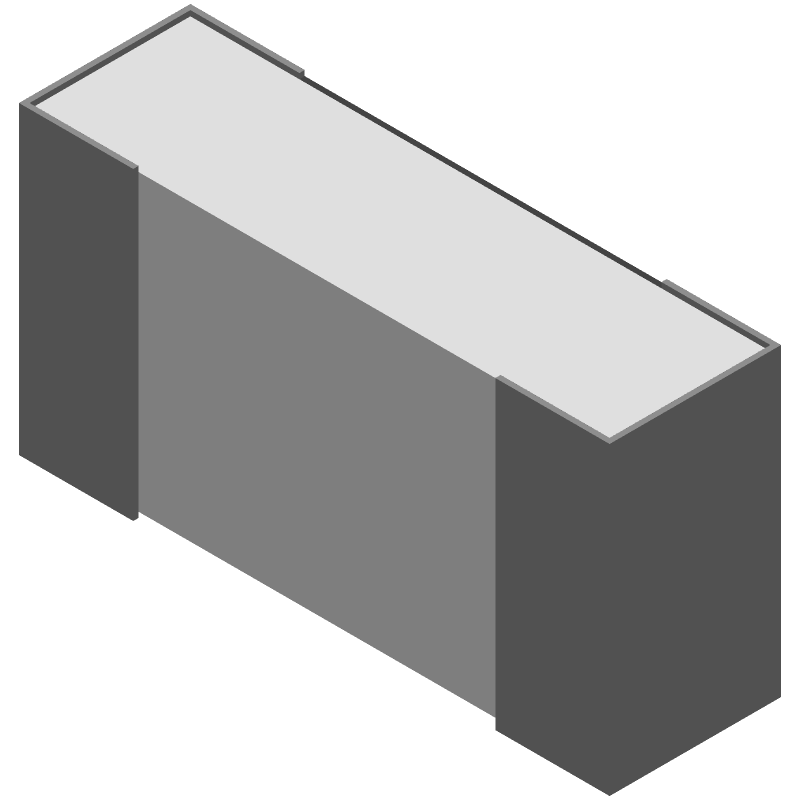

RNCF0603BTS21K5 CAD Models
RNCF0603BTS21K5 Part Data Attributes
|
|
RNCF0603BTS21K5
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RNCF0603BTS21K5
SEI Stackpole Electronics Inc
Fixed Resistor, Thin Film, 0.1W, 21500ohm, 75V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 0603, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.55 mm | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 21500 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 15 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.1% | |
| Working Voltage | 75 V |
RNCF0603BTS21K5 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the RNCF0603BTS21K5 is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
The RNCF0603BTS21K5 is a general-purpose resistor and may not be suitable for high-frequency applications due to its self-resonant frequency and parasitic inductance. For high-frequency applications, consider using a resistor with a higher frequency rating.
-
The RNCF0603BTS21K5 has a maximum operating temperature of 155°C. While it can tolerate high temperatures, prolonged exposure to temperatures above 125°C may affect its reliability and lifespan.
-
The RNCF0603BTS21K5 has an MSL rating of 1, which means it can withstand normal humidity levels and does not require special handling or storage.
-
Yes, the RNCF0603BTS21K5 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
