Resistors / Thin Film Resistors / RNCF0402DTE22K0
Datasheets

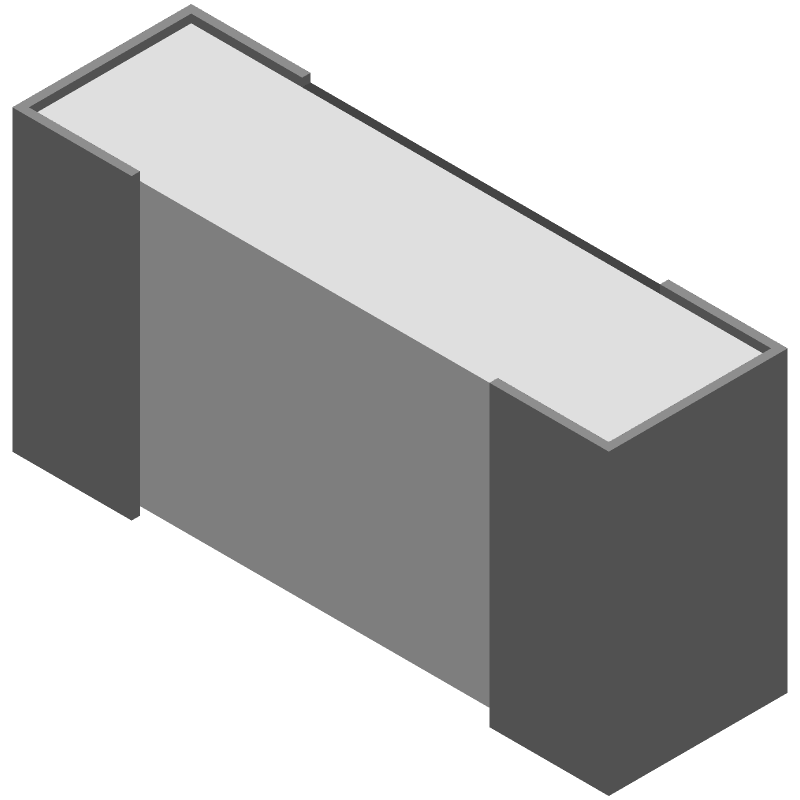

RNCF0402DTE22K0 by: SEI Stackpole Electronics Inc

Fixed Resistor, Thin Film, 0.063W, 22000ohm, 25V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP

Part Details for RNCF0402DTE22K0 by SEI Stackpole Electronics Inc

Results Overview of RNCF0402DTE22K0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RNCF0402DTE22K0 Information

RNCF0402DTE22K0 by SEI Stackpole Electronics Inc is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RNCF0402DTE22K0

Part # Distributor Description Stock Price Buy
DISTI # 738-RNCF0402DTE22K0CT-ND
DigiKey RES SMD 22K OHM 0.5% 1/10W 0402 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 13389
In Stock
  • 1 $0.1000
  • 10 $0.0220
  • 50 $0.0194
  • 100 $0.0183
  • 500 $0.0161
  • 1,000 $0.0152
  • 5,000 $0.0134
  • 10,000 $0.0137
  • 20,000 $0.0131
  • 30,000 $0.0128
  • 50,000 $0.0124
  • 70,000 $0.0122
  • 100,000 $0.0119
  • 250,000 $0.0114
  • 500,000 $0.0111
$0.0111 / $0.1000 Buy Now
DISTI # RNCF0402DTE22K0
Avnet Americas - Tape and Reel (Alt: RNCF0402DTE22K0) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Container: Reel 40000 Factory Stock
  • 10,000 $0.0134
  • 20,000 $0.0134
  • 40,000 $0.0133
  • 60,000 $0.0132
  • 80,000 $0.0132
$0.0132 / $0.0134 Buy Now
DISTI # 708-RNCF0402DTE22K0
Mouser Electronics Thin Film Resistors - SMD RES PREC, 22 Kohm, 0402, 0.5%, 25 ppm RoHS: Compliant 0
  • 10,000 $0.0120
  • 20,000 $0.0110
  • 50,000 $0.0100
$0.0100 / $0.0120 Order Now
Onlinecomponents.com Precision Thin Film Chip Resistor - 22 kohm ±0.5% - SMD 0402 - Tape&Reel RoHS: Compliant 40000 Factory Stock
  • 10,000 $0.0143
  • 20,000 $0.0133
  • 40,000 $0.0125
  • 80,000 $0.0122
$0.0122 / $0.0143 Buy Now
DISTI # 79008505
Verical Res Thin Film 0402 22K Ohm 0.5% 0.1W(1/10W) ±25ppm/°C Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Americas - 40000
  • 10,000 $0.0980
$0.0980 Buy Now
NAC RESISTOR PRECISION, 22 Kohm, 0402, 0.5%, 25 ppm - Thin Film - Precision RoHS: Compliant Min Qty: 1 Package Multiple: 10000 40000
  • 10,000 $0.0330
  • 50,000 $0.0290
  • 250,000 $0.0250
$0.0250 / $0.0330 Buy Now
Master Electronics Precision Thin Film Chip Resistor - 22 kohm ±0.5% - SMD 0402 - Tape&Reel RoHS: Compliant 40000 Factory Stock
  • 10,000 $0.0143
  • 20,000 $0.0133
  • 40,000 $0.0125
  • 80,000 $0.0122
$0.0122 / $0.0143 Buy Now

Part Details for RNCF0402DTE22K0

RNCF0402DTE22K0 Part Data Attributes

Parametric Data
RNCF0402DTE22K0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RNCF0402DTE22K0 SEI Stackpole Electronics Inc Fixed Resistor, Thin Film, 0.063W, 22000ohm, 25V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.3 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 22000 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.5%
Working Voltage 50 V

RNCF0402DTE22K0 Related Parts

RNCF0402DTE22K0 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RNCF0402DTE22K0 is a rectangular pad with a size of 0.5mm x 0.3mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.

  • While the RNCF0402DTE22K0 is rated for operation up to 150°C, it's not recommended for continuous operation above 125°C. Prolonged exposure to high temperatures can affect the resistor's stability and reliability.

  • Handle the RNCF0402DTE22K0 by the edges or the body, avoiding touching the termination pads. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.

  • The maximum power rating for RNCF0402DTE22K0 is 0.063W. Exceeding this rating can cause the resistor to overheat, leading to reduced reliability or even failure.

  • While the RNCF0402DTE22K0 is designed to operate in a variety of environments, it's not recommended for use in extremely high-humidity environments (above 95% RH). Moisture can affect the resistor's stability and reliability.
