Resistors / Thin Film Resistors / RN73C2A8K66BTDF
Datasheets
RN73C2A8K66BTDF by: TE Connectivity

Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT

Part Details for RN73C2A8K66BTDF by TE Connectivity

Results Overview of RN73C2A8K66BTDF by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research

RN73C2A8K66BTDF Information

RN73C2A8K66BTDF by TE Connectivity is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RN73C2A8K66BTDF

Part # Distributor Description Stock Price Buy
DISTI # 99W9312
Newark Surface Mount Thin Film Resistor, Rn73 Series, 8.66 Kohm, 100 Mw, - 0.1%, 100 V Rohs Compliant: Yes |Te Connectivity RN73C2A8K66BTDF RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 1000
  • 1,000 $0.3480
  • 2,000 $0.3350
$0.3350 / $0.3480 Buy Now
DISTI # 26M2606
Newark Surface Mount Chip Resistor, Thin Film, Rn73 Series, 8.66 Kohm, 100 Mw, 0.1%, 100 V Rohs Compliant: Yes |Te Connectivity RN73C2A8K66BTDF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 171
  • 1 $0.9220
  • 10 $0.6580
  • 25 $0.6170
  • 50 $0.5040
  • 100 $0.4640
$0.4640 / $0.9220 Buy Now
DISTI # 20R8581
Newark Resistor, Thin Film, 8.66Kohm, 100Mw 0.1%, Resistance:8.66Kohm, Resistance Tolerance:± 0.1%, Power Rating:100Mw, Resistor Case/Package:0805 [2012 Metric], Resistor Technology:Thin Film, Resistor Type:Precision, Voltage Rating:100V Rohs Compliant: Yes |Holsworthy Te Connectivity RN73C2A8K66BTDF RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $0.3730
  • 2,000 $0.3580
$0.3580 / $0.3730 Buy Now
DISTI # A103520CT-ND
DigiKey RES SMD 8.66KOHM 0.1% 1/10W 0805 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 336
In Stock
  • 1 $0.7800
  • 10 $0.6520
  • 50 $0.5712
  • 100 $0.5339
  • 500 $0.4512
  • 1,000 $0.3363
  • 2,000 $0.3336
$0.3336 / $0.7800 Buy Now
DISTI # 1676458-2
Avnet Americas SMD Chip Resistor, 8.66 kOhm, ? 0.1%, 100 mW, 0805 [2012 Metric], Thin Film, High Precision High Stability - Tape and Reel (Alt: 1676458-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 3 Days Container: Reel 0
  • 1,000 $0.3107
  • 2,000 $0.3091
  • 4,000 $0.3075
  • 6,000 $0.3059
  • 8,000 $0.3043
$0.3043 / $0.3107 Buy Now
DISTI # 279-RN73CA-8.66K
Mouser Electronics Thin Film Resistors - SMD 0.1W .1% 10PPM 8.66K RoHS: Compliant 522
  • 1 $1.0300
  • 10 $0.7190
  • 50 $0.5520
  • 100 $0.4890
  • 500 $0.4230
  • 1,000 $0.3170
$0.3170 / $1.0300 Buy Now
TE Connectivity RN 0805 8K66 0.1% 10PPM 1KRL Resistance Value: 8.66K Ω Resistor Type: Precision Resistor Element Type: Thin Film Package Size Code: 0805 Power Rating: .1 W Surface Mount Resistor | 8.66K Ω Precision Resistor Thin Film 0805 | Part Number: RN73C2A8K66BTDF | Internal Number: 1676458-2 | TE Connectivity RoHS: Compliant Min Qty: 1 336
  • 1 $1.2500
  • 10 $1.2200
  • 25 $1.1800
  • 50 $1.1400
  • 100 $1.1100
  • 250 $1.0700
  • 500 $1.0400
$1.0400 / $1.2500 Buy Now
Onlinecomponents.com RN 0805 8K66 0.1% 10PPM 1KRL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant 0
  • 1,000 $0.3787
  • 3,000 $0.3574
  • 5,000 $0.3476
  • 8,000 $0.3424
  • 10,000 $0.3293
  • 15,000 $0.3205
  • 25,000 $0.2987
  • 50,000 $0.2740
$0.2740 / $0.3787 Buy Now
DISTI # 1676458-2
Avnet Abacus SMD Chip Resistor 866 kOhm 01 100 mW 0805 2012 Metric Thin Film High Precision High Stability (Alt: 1676458-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics RN 0805 8K66 0.1% 10PPM 1KRL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant 0
  • 1,000 $0.3787
  • 3,000 $0.3574
  • 5,000 $0.3476
  • 8,000 $0.3424
  • 10,000 $0.3293
  • 15,000 $0.3205
  • 25,000 $0.2987
  • 50,000 $0.2740
$0.2740 / $0.3787 Buy Now

Part Details for RN73C2A8K66BTDF

RN73C2A8K66BTDF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

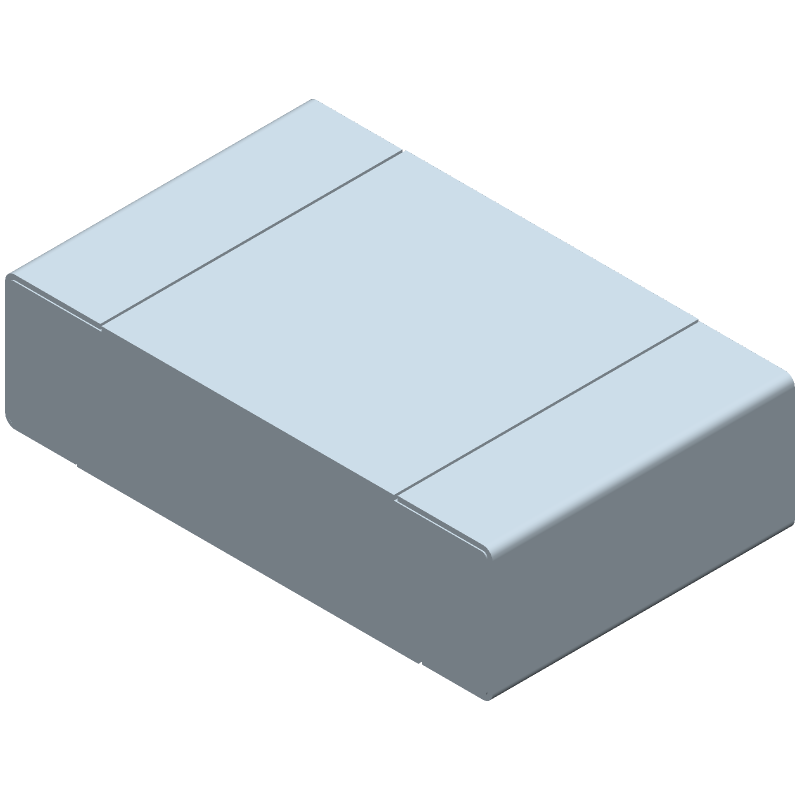

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RN73C2A8K66BTDF Part Data Attributes

Parametric Data
RN73C2A8K66BTDF TE Connectivity
Buy Now Datasheet
Compare Parts:
RN73C2A8K66BTDF TE Connectivity Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TYCO ELECTRONICS COMPONENTS
Package Description CHIP, ROHS COMPLIANT
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Additional Feature PRECISION
Construction RECTANGULAR PACKAGE
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR
Physical Dimension 2mm x 1.25mm x .55mm
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Resistance 8660 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 10 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 100 V

Alternate Parts for RN73C2A8K66BTDF

This table gives cross-reference parts and alternative options found for RN73C2A8K66BTDF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RN73C2A8K66BTDF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UPTF0805-10W-N-8661AT-1K VENKEL LTD Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.05% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP RN73C2A8K66BTDF vs UPTF0805-10W-N-8661AT-1K
AR05BTRC6X8661N Token Electronics Industry Co Ltd Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 0805, RN73C2A8K66BTDF vs AR05BTRC6X8661N
RN73C2A8K66BTDG TE Connectivity Check for Price RESISTOR, THIN FILM, 0.1W, 0.1%, 10ppm, 8660ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT RN73C2A8K66BTDF vs RN73C2A8K66BTDG
RN73C2ATD8661A MERITEK Electronics Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.05% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP RN73C2A8K66BTDF vs RN73C2ATD8661A
AR08058K66+-0.05%TCR10 SRT Resistor Technology Gmbh Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.05% +/-Tol, 10ppm/Cel, 0805, RN73C2A8K66BTDF vs AR08058K66+-0.05%TCR10
RN73C2A8K66BTD TE Connectivity Check for Price RESISTOR, THIN FILM, 0.1W, 0.1%, 10ppm, 8660ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT RN73C2A8K66BTDF vs RN73C2A8K66BTD
RN73C2AB8661B MERITEK Electronics Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP RN73C2A8K66BTDF vs RN73C2AB8661B
RN73C2A8K66ATDG TE Connectivity Check for Price RESISTOR, THIN FILM, 0.1W, 0.05%, 10ppm, 8660ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT RN73C2A8K66BTDF vs RN73C2A8K66ATDG
CAR08058.66KOHMS0.1%10PPM Riedon Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 0805, RN73C2A8K66BTDF vs CAR08058.66KOHMS0.1%10PPM
AR05BPC6X8661N Token Electronics Industry Co Ltd Check for Price Fixed Resistor, Thin Film, 0.1W, 8660ohm, 100V, 0.1% +/-Tol, -10,10ppm/Cel, 0805, RN73C2A8K66BTDF vs AR05BPC6X8661N

RN73C2A8K66BTDF Related Parts

RN73C2A8K66BTDF Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RN73C2A8K66BTDF is between 250°C to 260°C, with a maximum peak temperature of 260°C for 10 seconds.

  • Yes, RN73C2A8K66BTDF is compatible with lead-free soldering. It meets the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.

  • The operating temperature range for RN73C2A8K66BTDF is -55°C to 125°C, making it suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics.

  • Yes, RN73C2A8K66BTDF is suitable for high-frequency applications up to 1 GHz, making it a good choice for use in RF and microwave circuits.

  • The power rating for RN73C2A8K66BTDF is 250 mW, making it suitable for use in low-power applications such as signal conditioning, filtering, and impedance matching.
