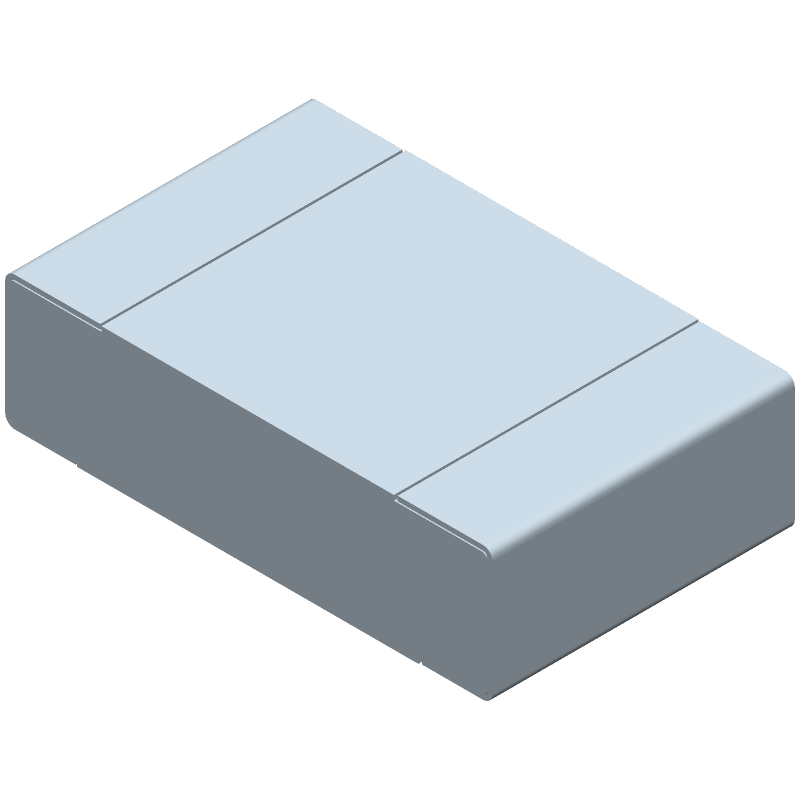

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RN73C2A1K07BTDF by TE Connectivity
Results Overview of RN73C2A1K07BTDF by TE Connectivity
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
RN73C2A1K07BTDF Information
RN73C2A1K07BTDF by TE Connectivity is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RN73C2A1K07BTDF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AC3546
|
Newark | Rn 0805 1K07 0.1% 10Ppm 1Krl |Holsworthy Te Connectivity RN73C2A1K07BTDF RoHS: Not Compliant Min Qty: 211 Package Multiple: 1 Date Code: 0 Container: Reel | 1000 |
|
$0.4640 / $0.5610 | Buy Now |
|
DISTI #
99AC4251
|
Newark | Res, 1K07, 0.1%, 0.1W, 0805, Thin Film, Resistor Case Style:0805 [2012 Metric], Resistance:1.07Kohm, Product Range:Rn73 Series, Voltage Rating:100V, Resistor Element Material:Thin Film, Power Rating:100Mw, Resistance Tolerance:± Rohs Compliant: Yes |Te Connectivity RN73C2A1K07BTDF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 730 |
|
$0.4640 / $0.9130 | Buy Now |
|
DISTI #
20R7496
|
Newark | Rn 0805 1K07 0.1% 10Ppm 1Krl |Holsworthy Te Connectivity RN73C2A1K07BTDF RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3630 / $0.4090 | Buy Now |
|
DISTI #
A103346CT-ND
|
DigiKey | RES SMD 1.07KOHM 0.1% 1/10W 0805 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
427 In Stock |
|
$0.3336 / $0.6800 | Buy Now |
|
DISTI #
1676220-2
|
Avnet Americas | SMD Chip Resistor, 1.07 kOhm, ? 0.1%, 100 mW, 0805 [2012 Metric], Thin Film, High Precision High Stability - Tape and Reel (Alt: 1676220-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 2 Days Container: Reel | 0 |
|
$0.3043 / $0.3657 | Buy Now |
|
DISTI #
279-RN73C2A1K07BTDF
|
Mouser Electronics | Thin Film Resistors - SMD RN 0805 1K07 0.1% 10PPM 1KRL RoHS: Compliant | 1275 |
|
$0.3170 / $0.9900 | Buy Now |
|
|
TE Connectivity | RN 0805 1K07 0.1% 10PPM 1KRL Resistance Value: 1.07K Ω Resistor Type: Precision Resistor Element Type: Thin Film Package Size Code: 0805 Power Rating: .1 W Surface Mount Resistor | 1.07K Ω Precision Resistor Thin Film 0805 | Part Number: RN73C2A1K07BTDF | Internal Number: 1676220-2 | TE Connectivity RoHS: Compliant Min Qty: 1 | 427 |
|
$1.0400 / $1.2500 | Buy Now |
|
|
Onlinecomponents.com | RN 0805 1K07 0.1% 10PPM 1KRL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant |
1000 Partner Stock |
|
$0.2795 / $0.3863 | Buy Now |
|
DISTI #
17419603
|
Verical | Res Thin Film 0805 1.07K Ohm 0.1% 0.1W(1/10W) ±10ppm/°C Pad SMD T/R Medical RoHS: Compliant Min Qty: 110 Package Multiple: 1 | Americas - 1000 |
|
$0.5700 | Buy Now |
|
DISTI #
RN73C2A1K07BTDF
|
IBS Electronics | RES THIN FILM 0805 1.07K OHM 0.1% 0.1W(1/10W) ±, 10PPM/C PAD SMD T/R MEDICAL Min Qty: 244 Package Multiple: 1 | 1000 |
|
$0.5000 / $0.5750 | Buy Now |
Part Details for RN73C2A1K07BTDF
RN73C2A1K07BTDF CAD Models
RN73C2A1K07BTDF Part Data Attributes
|
|
RN73C2A1K07BTDF
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
RN73C2A1K07BTDF
TE Connectivity
Fixed Resistor, Thin Film, 0.1W, 1070ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 8 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | PRECISION | |
| Manufacturer Series | RN73 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | TR | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 1070 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 10 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.1% | |
| Working Voltage | 100 V |
RN73C2A1K07BTDF Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for RN73C2A1K07BTDF is 260°C for 10 seconds.
-
Yes, RN73C2A1K07BTDF is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds.
-
Yes, RN73C2A1K07BTDF is suitable for high-frequency applications up to 1 GHz due to its low inductance and capacitance.
-
Yes, RN73C2A1K07BTDF is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The power rating of RN73C2A1K07BTDF at 70°C is 0.25 W.
