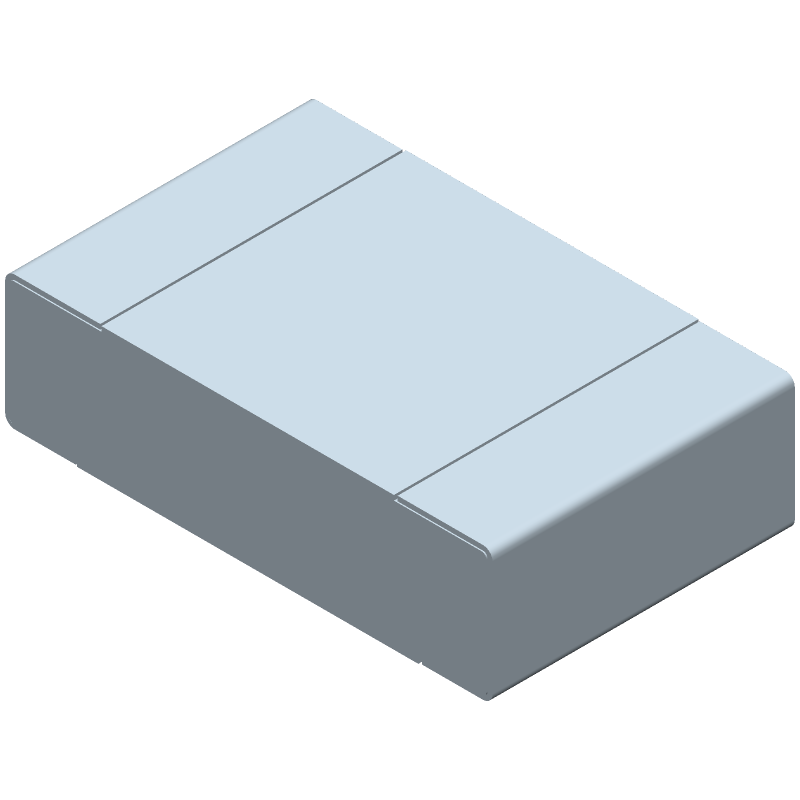

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RN73C2A118RBTDF by TE Connectivity
Results Overview of RN73C2A118RBTDF by TE Connectivity
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
RN73C2A118RBTDF Information
RN73C2A118RBTDF by TE Connectivity is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RN73C2A118RBTDF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44AJ0518
|
Newark | Rn 0805 118R 0.1% 10Ppm 1Krl |Holsworthy Te Connectivity RN73C2A118RBTDF RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.4080 | Buy Now |
|
DISTI #
20R7665
|
Newark | Rn 0805 118R 0.1% 10Ppm 1Krl |Holsworthy Te Connectivity RN73C2A118RBTDF RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3630 / $0.4090 | Buy Now |
|
DISTI #
A103291CT-ND
|
DigiKey | RES SMD 118 OHM 0.1% 1/10W 0805 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
296 In Stock |
|
$0.3363 / $0.7200 | Buy Now |
|
DISTI #
1676161-2
|
Avnet Americas | SMD Chip Resistor, 118 Ohm, ? 0.1%, 100 mW, 0805 [2012 Metric], Thin Film, High Precision High Stability - Tape and Reel (Alt: 1676161-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 3 Days Container: Reel | 0 |
|
$0.3043 / $0.3107 | Buy Now |
|
DISTI #
279-RN73C2A118RBTDF
|
Mouser Electronics | Thin Film Resistors - SMD RN 0805 118R 0.1% 10PPM 1KRL RoHS: Compliant | 636 |
|
$0.3170 / $1.0200 | Buy Now |
|
|
TE Connectivity | RN 0805 118R 0.1% 10PPM 1KRL Resistance Value: 118 Ω Resistor Type: Precision Resistor Element Type: Thin Film Package Size Code: 0805 Power Rating: .1 W Surface Mount Resistor | 118 Ω Precision Resistor Thin Film 0805 | Part Number: RN73C2A118RBTDF | Internal Number: 1676161-2 | TE Connectivity RoHS: Compliant Min Qty: 1 | 296 |
|
$1.0400 / $1.2500 | Buy Now |
|
|
Onlinecomponents.com | RN 0805 118R 0.1% 10PPM 1KRL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant | 0 |
|
$0.2740 / $0.3787 | Buy Now |
|
DISTI #
1676161-2
|
Avnet Abacus | SMD Chip Resistor 118 Ohm 01 100 mW 0805 2012 Metric Thin Film High Precision High Stability (Alt: 1676161-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | RN 0805 118R 0.1% 10PPM 1KRL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant | 0 |
|
$0.2740 / $0.3787 | Buy Now |
Part Details for RN73C2A118RBTDF
RN73C2A118RBTDF CAD Models
RN73C2A118RBTDF Part Data Attributes
|
|
RN73C2A118RBTDF
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
RN73C2A118RBTDF
TE Connectivity
Fixed Resistor, Thin Film, 0.1W, 118ohm, 100V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TYCO ELECTRONICS COMPONENTS | |
| Package Description | CHIP, ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 14 Weeks, 3 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | PRECISION | |
| Manufacturer Series | RN73 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | TR | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 118 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 10 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.1% | |
| Working Voltage | 100 V |
