Resistors / Thin Film Resistors / RN73C1J10KBTDF
Datasheets
RN73C1J10KBTDF by: TE Connectivity

Fixed Resistor, Thin Film, 0.063W, 10000ohm, 50V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for RN73C1J10KBTDF by TE Connectivity

Results Overview of RN73C1J10KBTDF by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RN73C1J10KBTDF Information

RN73C1J10KBTDF by TE Connectivity is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RN73C1J10KBTDF

Part # Distributor Description Stock Price Buy
DISTI # 06AC6223
Newark Res, 10K, 0.1%, 0.063W, 0603, Thin Film, Resistor Case Style:0603 [1608 Metric], Resistance:10Kohm, Product Range:Rn73 Series, Voltage Rating:50V, Resistor Element Material:Thin Film, Power Rating:63Mw, Resistance Tolerance:± 0.1%, Rohs Compliant: Yes |Te Connectivity RN73C1J10KBTDF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1753
  • 1 $0.9220
  • 10 $0.6560
  • 25 $0.6490
  • 50 $0.5090
  • 100 $0.4640
$0.4640 / $0.9220 Buy Now
DISTI # 22R2565
Newark Surface Mount Thin Film Resistor, Rn73 Series, 10 Kohm, 63 Mw, - 0.1%, 50 V |Holsworthy Te Connectivity RN73C1J10KBTDF RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $0.4090
  • 2,000 $0.3960
  • 4,000 $0.3860
  • 6,000 $0.3730
  • 10,000 $0.3630
$0.3630 / $0.4090 Buy Now
DISTI # 1712-RN73C1J10KBTDFCT-ND
DigiKey RES SMD 10K OHM 0.1% 1/16W 0603 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2736
In Stock
  • 1 $0.6800
  • 10 $0.5680
  • 50 $0.4974
  • 100 $0.4707
  • 500 $0.3886
  • 1,000 $0.3363
$0.3363 / $0.6800 Buy Now
DISTI # 4-1614349-2
Avnet Americas - Tape and Reel (Alt: 4-1614349-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 2 Days Container: Reel 0
  • 1,000 $0.3107
  • 2,000 $0.3091
  • 4,000 $0.3075
  • 6,000 $0.3059
  • 8,000 $0.3043
$0.3043 / $0.3107 Buy Now
DISTI # 279-RN73C1J10KBTDF
Mouser Electronics Thin Film Resistors - SMD RN 0603 10K 0.1% 10PPM RoHS: Compliant 48
  • 1 $0.9900
  • 10 $0.6960
  • 50 $0.5350
  • 100 $0.4740
  • 500 $0.3510
  • 1,000 $0.3170
$0.3170 / $0.9900 Buy Now
Onlinecomponents.com RN 0603 10K 0.1% 10PPM 1K RL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant 0
  • 1,000 $0.3787
  • 3,000 $0.3574
  • 5,000 $0.3476
  • 8,000 $0.3424
  • 10,000 $0.3293
  • 15,000 $0.3205
  • 25,000 $0.2987
  • 50,000 $0.2740
$0.2740 / $0.3787 Buy Now
DISTI # 4-1614349-2
Avnet Abacus TE 416143492 Res Thin Film 0603 10K Ohm 01 116W 10ppmC Molded SMD TR (Alt: 4-1614349-2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics RN 0603 10K 0.1% 10PPM 1K RL<br/>Thin Film Precision SMD<br/>Fixed Resistor RoHS: Compliant 0
  • 1,000 $0.3787
  • 3,000 $0.3574
  • 5,000 $0.3476
  • 8,000 $0.3424
  • 10,000 $0.3293
  • 15,000 $0.3205
  • 25,000 $0.2987
  • 50,000 $0.2740
$0.2740 / $0.3787 Buy Now

Part Details for RN73C1J10KBTDF

RN73C1J10KBTDF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

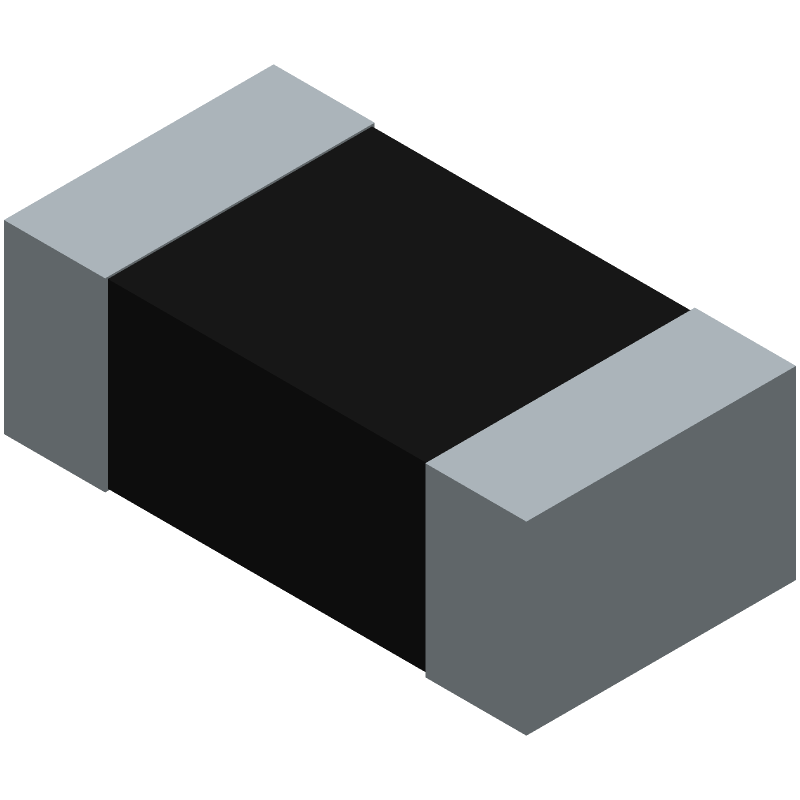

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RN73C1J10KBTDF Part Data Attributes

Parametric Data
RN73C1J10KBTDF TE Connectivity
Buy Now Datasheet
Compare Parts:
RN73C1J10KBTDF TE Connectivity Fixed Resistor, Thin Film, 0.063W, 10000ohm, 50V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TYCO ELECTRONICS COMPONENTS
Package Description CHIP, ROHS COMPLIANT
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 8 Weeks, 2 Days
Samacsys Manufacturer TE Connectivity
Additional Feature PRECISION
Construction RECTANGULAR PACKAGE
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR
Physical Dimension 1.6mm x .8mm x .4mm
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Resistance 10000 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 10 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 50 V

Alternate Parts for RN73C1J10KBTDF

This table gives cross-reference parts and alternative options found for RN73C1J10KBTDF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RN73C1J10KBTDF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RN73C1J10KBTG TE Connectivity $0.8994 Fixed Resistor, Thin Film, 0.063W, 10000ohm, 50V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RN73C1J10KBTDF vs RN73C1J10KBTG
400102309R1002B1 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.1W, 10000ohm, 50V, 0.1% +/-Tol, -10,10ppm/Cel, 0603, RN73C1J10KBTDF vs 400102309R1002B1
AR03BTRC6C6Y1002N Token Electronics Industry Co Ltd Check for Price Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.1% +/-Tol, -10,10ppm/Cel, 0603, RN73C1J10KBTDF vs AR03BTRC6C6Y1002N
RN73C1J10KATDF TE Connectivity Check for Price RESISTOR, THIN FILM, 0.063W, 0.05%, 10ppm, 10000ohm, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT RN73C1J10KBTDF vs RN73C1J10KATDF
AR03BTRC6C5Y1002 Token Electronics Industry Co Ltd Check for Price Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.1% +/-Tol, -10,10ppm/Cel, 0603, RN73C1J10KBTDF vs AR03BTRC6C5Y1002
AR03ABBY1002N Viking Tech Corp Check for Price Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.05% +/-Tol, -10,10ppm/Cel, 0603, RN73C1J10KBTDF vs AR03ABBY1002N
AR03ABBY1002 Viking Tech Corp Check for Price Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.05% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP RN73C1J10KBTDF vs AR03ABBY1002
RV0603Y1002BG Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 10000ohm, 50V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RN73C1J10KBTDF vs RV0603Y1002BG
PFRR0603Y1002WB Vishay Sfernice Check for Price RESISTOR, THIN FILM, 0.1 W, 0.05 %, 10 ppm, 10000 ohm, SURFACE MOUNT, 0603, CHIP, HALOGEN FREE RN73C1J10KBTDF vs PFRR0603Y1002WB
NTR06B1002BTRF NIC Components Corp Check for Price Fixed Resistor, Thin Film, 0.063W, 10000ohm, 50V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP RN73C1J10KBTDF vs NTR06B1002BTRF

RN73C1J10KBTDF Related Parts

RN73C1J10KBTDF Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RN73C1J10KBTDF is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, RN73C1J10KBTDF is compatible with lead-free soldering and is RoHS compliant.

  • The power rating of RN73C1J10KBTDF is 0.25W.

  • Yes, RN73C1J10KBTDF is suitable for high-frequency applications up to 500MHz.

  • Yes, RN73C1J10KBTDF is available in tape and reel packaging for automated assembly.
