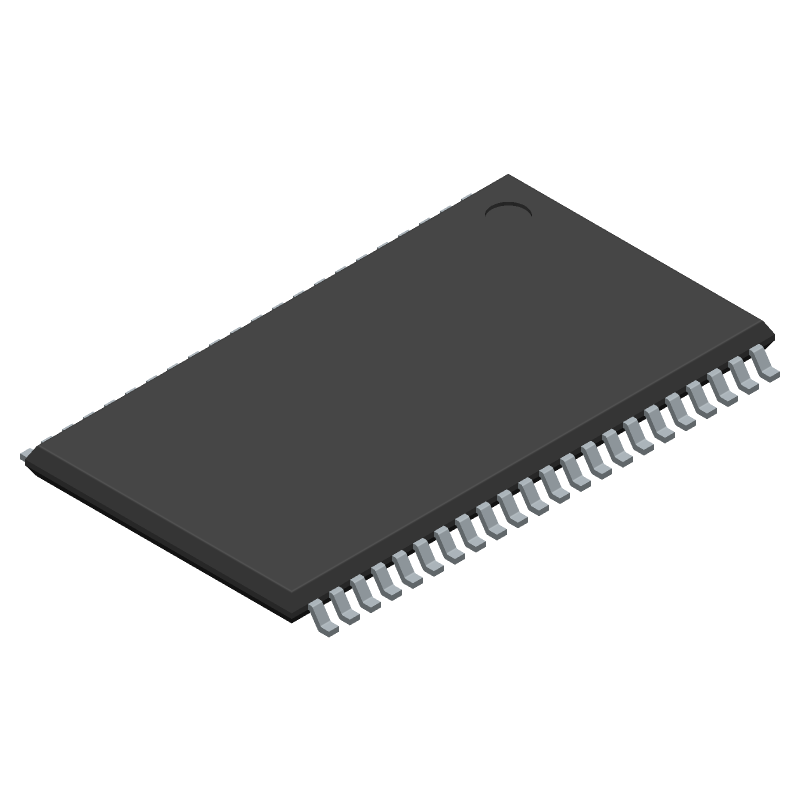

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RMLV0816BGSB-4S2#AA0 by Renesas Electronics Corporation
Results Overview of RMLV0816BGSB-4S2#AA0 by Renesas Electronics Corporation
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
RMLV0816BGSB-4S2#AA0 Information
RMLV0816BGSB-4S2#AA0 by Renesas Electronics Corporation is an SRAM.
SRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for RMLV0816BGSB-4S2#AA0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RMLV0816BGSB-4S2#AA0-ND
|
DigiKey | IC SRAM 8MBIT PARALLEL 44TSOP II Min Qty: 1 Lead time: 12 Weeks Container: Tray |
999 In Stock |
|
$11.1527 / $13.8700 | Buy Now |
|
DISTI #
RMLV0816BGSB-4S2#AA0
|
Avnet Americas | SRAM, Asynchronous SRAM, LPSRAM, 8 Mbit, 512K x 16bit, TSOP-II, 44 Pins, 2.4 V - Trays (Alt: RMLV0816BGSB-4S2#AA0) RoHS: Compliant Min Qty: 135 Package Multiple: 1 Lead time: 26 Weeks, 1 Days Container: Tray | 0 |
|
$20.8000 | Buy Now |
|
DISTI #
968-V0816BGSB4S2#AA0
|
Mouser Electronics | SRAM 8Mb 3V Adv.SRAM x16 TSOP44, 45ns, WTR RoHS: Compliant | 751 |
|
$7.2000 / $9.4300 | Buy Now |
|
DISTI #
69695389
|
Verical | SRAM Chip Async Single 3V/3.3V 8M-bit 512K x 16 55ns 44-Pin TSOP-II Tray RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2330 | Americas - 60 |
|
$9.1100 / $9.4400 | Buy Now |
|
DISTI #
RMLV0816BGSB4S2AA
|
TME | IC: SRAM memory, 8MbSRAM, 512kx16bit, 2.7÷3.6V, 45s, TSOP44 II Min Qty: 1 | 0 |
|
$4.6100 / $9.0200 | RFQ |
|
DISTI #
RMLV0816BGSB-4S2#AA0
|
IBS Electronics | RMLV0816BGSB SERIES 8 MB (512K X 16) 3.6 V 45 NS ADVANCED LPSRAM - TSOPII-44 Min Qty: 405 Package Multiple: 1 | 0 |
|
$4.0560 / $4.2120 | Buy Now |
|
|
NexGen Digital | 4 |
|
RFQ | ||
|
DISTI #
RMLV0816BGSB-4S2#AA0
|
Avnet Silica | SRAM Asynchronous SRAM LPSRAM 8 Mbit 512K x 16bit TSOPII 44 Pins 24 V (Alt: RMLV0816BGSB-4S2#AA0) RoHS: Compliant Min Qty: 135 Package Multiple: 135 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
RMLV0816BGSB-4S2#AA0
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray | 60 |
|
$7.9800 / $9.4400 | Buy Now |
|
|
Vyrian | Memory ICs | 285 |
|
RFQ |
Part Details for RMLV0816BGSB-4S2#AA0
RMLV0816BGSB-4S2#AA0 CAD Models
RMLV0816BGSB-4S2#AA0 Part Data Attributes
|
|
RMLV0816BGSB-4S2#AA0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
RMLV0816BGSB-4S2#AA0
Renesas Electronics Corporation
8Mb Advanced LPSRAM (512k word x 16bit), TSOP(44), /Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TSOP(44) | |
| Package Description | TSOP2-44 | |
| Pin Count | 44 | |
| Manufacturer Package Code | PTSB0044GD | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 26 Weeks, 1 Day | |
| Samacsys Manufacturer | Renesas Electronics | |
| Access Time-Max | 45 ns | |
| Additional Feature | IT ALSO OPERATES AT 2.4 TO 2.7 V SUPPLY VOLTAGE, IT ALSO HAVE ACCESS TIME 55 NS | |
| I/O Type | COMMON | |
| JESD-30 Code | R-PDSO-G44 | |
| Length | 18.41 mm | |
| Memory Density | 8388608 bit | |
| Memory IC Type | STANDARD SRAM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 44 | |
| Number of Words | 524288 words | |
| Number of Words Code | 512000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512KX16 | |
| Output Characteristics | 3-STATE | |
| Output Enable | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP2 | |
| Package Equivalence Code | TSOP44,.46,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Parallel/Serial | PARALLEL | |
| Seated Height-Max | 1.2 mm | |
| Standby Current-Max | 0.00001 A | |
| Standby Voltage-Min | 1.5 V | |
| Supply Current-Max | 0.03 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.4 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Width | 10.16 mm |
Alternate Parts for RMLV0816BGSB-4S2#AA0
This table gives cross-reference parts and alternative options found for RMLV0816BGSB-4S2#AA0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMLV0816BGSB-4S2#AA0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IS62WV51216EBLL-45BLI | Integrated Silicon Solution Inc | $4.2608 | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, VFBGA-48 | RMLV0816BGSB-4S2#AA0 vs IS62WV51216EBLL-45BLI |
| IS62WV51216HBLL-45BLI | Integrated Silicon Solution Inc | $4.4485 | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, MINIBGA-48 | RMLV0816BGSB-4S2#AA0 vs IS62WV51216HBLL-45BLI |
| IS62WV51216HBLL-45TLI | Integrated Silicon Solution Inc | $4.4962 | Standard SRAM, 512KX16, 45ns, CMOS, PDSO44, TSOP2-44 | RMLV0816BGSB-4S2#AA0 vs IS62WV51216HBLL-45TLI |
| AS6C8016B-45ZIN | Alliance Memory Inc | $5.3624 | Standard SRAM, 512KX16, 45ns, CMOS, PDSO44, TSOP2-44 | RMLV0816BGSB-4S2#AA0 vs AS6C8016B-45ZIN |
| CY62157H30-45BVXI | Cypress Semiconductor | Check for Price | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, 6 X 8 MM, 1 MM HEIGHT, LEAD FREE, VFBGA-48 | RMLV0816BGSB-4S2#AA0 vs CY62157H30-45BVXI |
| CY62157H30-45BVXIT | Cypress Semiconductor | Check for Price | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, VFBGA-48 | RMLV0816BGSB-4S2#AA0 vs CY62157H30-45BVXIT |
| IS62WV51216HBLL-45TL | Integrated Silicon Solution Inc | Check for Price | Standard SRAM, 512KX16, 45ns, CMOS, PDSO44, TSOP2-44 | RMLV0816BGSB-4S2#AA0 vs IS62WV51216HBLL-45TL |
| IS62WV51216HBLL-45BI | Integrated Silicon Solution Inc | Check for Price | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, MINIBGA-48 | RMLV0816BGSB-4S2#AA0 vs IS62WV51216HBLL-45BI |
| IS65WV51216EBLL-45BA3 | Integrated Silicon Solution Inc | Check for Price | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, 6 X 8 MM, MO-207, VFBGA-48 | RMLV0816BGSB-4S2#AA0 vs IS65WV51216EBLL-45BA3 |
| IS62WV51216EBLL-45BI | Integrated Silicon Solution Inc | Check for Price | Standard SRAM, 512KX16, 45ns, CMOS, PBGA48, 6 X 8 MM, MO-207, VFBGA-48 | RMLV0816BGSB-4S2#AA0 vs IS62WV51216EBLL-45BI |
RMLV0816BGSB-4S2#AA0 Frequently Asked Questions (FAQ)
-
Renesas recommends following the PCB layout guidelines in the datasheet and application notes. For thermal management, ensure a minimum of 1mm clearance around the package, and use thermal vias to dissipate heat. A heat sink or thermal pad can also be used for high-power applications.
-
Follow the PCB layout guidelines, use a multi-layer board with a solid ground plane, and add EMI filters or shielding if necessary. Ensure proper decoupling and bypassing of power supplies, and use a common mode choke or ferrite bead to reduce EMI.
-
Renesas recommends following the power-up and power-down sequences outlined in the datasheet and application notes. Ensure a slow and controlled power ramp-up and ramp-down to prevent damage or latch-up.
-
Use a logic analyzer or oscilloscope to monitor signals and identify issues. Check the device's status registers and error flags for diagnostic information. Consult the datasheet, application notes, and Renesas support resources for troubleshooting guides and FAQs.
-
Renesas provides reliability data and lifespan expectations in the datasheet and quality/reliability reports. The device is designed to meet industry standards for reliability and lifespan, but actual performance may vary depending on application, environment, and usage.
