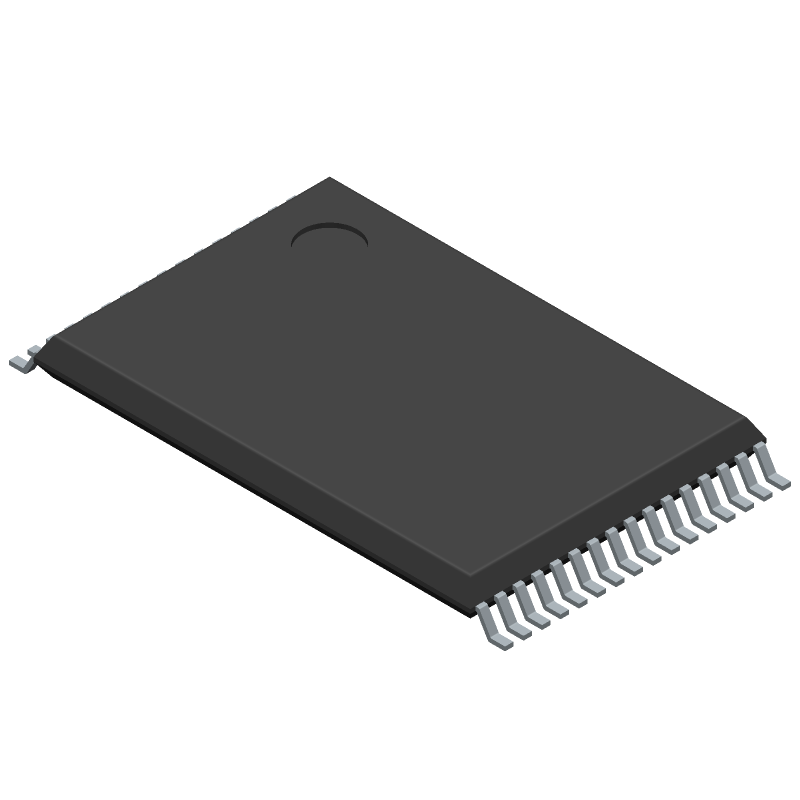

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RMLV0408EGSA-4S2#KA1 by Renesas Electronics Corporation
Results Overview of RMLV0408EGSA-4S2#KA1 by Renesas Electronics Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
RMLV0408EGSA-4S2#KA1 Information
RMLV0408EGSA-4S2#KA1 by Renesas Electronics Corporation is an SRAM.
SRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for RMLV0408EGSA-4S2#KA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AK8559
|
Newark | Sram, 4Mbit, -40 To 85Deg C Rohs Compliant: Yes |Renesas RMLV0408EGSA-4S2#KA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 22 |
|
$8.0000 / $10.5200 | Buy Now |
|
DISTI #
RMLV0408EGSA-4S2#KA1CT-ND
|
DigiKey | IC SRAM 4MBIT PARALLEL 32TSOP I Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4077 In Stock |
|
$2.9890 / $3.8100 | Buy Now |
|
DISTI #
RMLV0408EGSA-4S2#K
|
Avnet Americas | SRAM 4MB 3V X8 STSOP32 45NS -40TO85C - Tape and Reel (Alt: RMLV0408EGSA-4S2#K) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$12.0000 | Buy Now |
|
DISTI #
968-V0408EGSA4S2#KA1
|
Mouser Electronics | SRAM SRAM 4MB 3V X8 STSOP32 45NS -40TO85C RoHS: Compliant | 1063 |
|
$3.1500 / $4.4100 | Buy Now |
|
DISTI #
65154716
|
Verical | SRAM Chip Async Single 3V/3.3V 4M-bit 512K x 8 45ns RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2237 | Americas - 936 |
|
$6.9103 | Buy Now |
|
DISTI #
RMLV0408EGSA-4S2#KA1
|
Avnet Asia | SRAM 4MB 3V X8 STSOP32 45NS -40TO85C (Alt: RMLV0408EGSA-4S2#KA1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
RMLV0408EGSA-4S2#KA1
|
Avnet Silica | SRAM 4MB 3V X8 STSOP32 45NS 40TO85C (Alt: RMLV0408EGSA-4S2#KA1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
RMLV0408EGSA-4S2#KA1
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 936 |
|
$3.7400 | Buy Now |
|
|
Win Source Electronics | IC SRAM 4MBIT PARALLEL 32TSOP I | 7180 |
|
$5.2136 / $7.8203 | Buy Now |
Part Details for RMLV0408EGSA-4S2#KA1
RMLV0408EGSA-4S2#KA1 CAD Models
RMLV0408EGSA-4S2#KA1 Part Data Attributes
|
|
RMLV0408EGSA-4S2#KA1
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
RMLV0408EGSA-4S2#KA1
Renesas Electronics Corporation
4Mb Advanced LPSRAM (512-kword x 8-bit), sTSOP(32), /Embossed Tape
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | sTSOP(32) | |
| Pin Count | 32 | |
| Manufacturer Package Code | PTSA0032KJ | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A002 | |
| HTS Code | 8542.32.00.41 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Access Time-Max | 45 ns | |
| I/O Type | COMMON | |
| JESD-30 Code | R-PDSO-G32 | |
| Length | 11.8 mm | |
| Memory Density | 4194304 bit | |
| Memory IC Type | STANDARD SRAM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 32 | |
| Number of Words | 524288 words | |
| Number of Words Code | 512000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512KX8 | |
| Output Characteristics | 3-STATE | |
| Output Enable | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP1 | |
| Package Equivalence Code | TSSOP32,.56,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Parallel/Serial | PARALLEL | |
| Seated Height-Max | 1.2 mm | |
| Standby Current-Max | 0.0003 A | |
| Standby Voltage-Min | 3 V | |
| Supply Current-Max | 0.025 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 8 mm |
Alternate Parts for RMLV0408EGSA-4S2#KA1
This table gives cross-reference parts and alternative options found for RMLV0408EGSA-4S2#KA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMLV0408EGSA-4S2#KA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RMLV0408EGSA-4S2#AA1 | Renesas Electronics Corporation | Check for Price | 4Mb Advanced LPSRAM (512-kword x 8-bit), sTSOP(32), /Tray | RMLV0408EGSA-4S2#KA1 vs RMLV0408EGSA-4S2#AA1 |
| RMLV0408EGSA-4S2 | Renesas Electronics Corporation | Check for Price | STANDARD SRAM | RMLV0408EGSA-4S2#KA1 vs RMLV0408EGSA-4S2 |
| RMLV0408EGSA-4S2#AA0 | Renesas Electronics Corporation | Check for Price | 4Mb Advanced LPSRAM (512-kword x 8-bit), sTSOP(32), /Tray | RMLV0408EGSA-4S2#KA1 vs RMLV0408EGSA-4S2#AA0 |
RMLV0408EGSA-4S2#KA1 Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and minimizing the distance between the device and the heat sink. A 4-layer PCB with a dedicated thermal layer is recommended.
-
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal design guidelines, use a heat sink with a thermal interface material, and ensure good airflow around the device. Additionally, consider using a thermal monitoring and shutdown mechanism to prevent overheating.
-
The input capacitor should be a low-ESR ceramic capacitor with a value of 4.7uF to 10uF, and a voltage rating of 10V or higher. The capacitor should be placed as close to the VIN pin as possible, and the PCB layout should minimize the distance between the capacitor and the VIN pin.
-
To optimize the output capacitor selection, consider the output voltage ripple, output current, and output capacitor ESR. A low-ESR ceramic capacitor with a value of 4.7uF to 10uF and a voltage rating of 2.5V or higher is recommended. The output capacitor should be placed as close to the VOUT pin as possible.
-
The input voltage should be within the recommended range of 2.5V to 5.5V, with a maximum input voltage of 6V. The input voltage should be stable and free of noise, and the input voltage transient response should be within the recommended specifications.
