RMCF1206JT15R0 Information
RMCF1206JT15R0 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RMCF1206JT15R0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RMCF1206JT15R0CT-ND
|
DigiKey | RES 15 OHM 5% 1/4W 1206 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
32360 In Stock |
|
$0.0029 / $0.1000 | Buy Now |
|
DISTI #
RMCF1206JT15R0
|
Avnet Americas | - Tape and Reel (Alt: RMCF1206JT15R0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.0028 | Buy Now |
|
DISTI #
708-RMCF1206JT15R0
|
Mouser Electronics | Thick Film Resistors - SMD 15Ohms 1206 0.25W 5% Std Power RoHS: Compliant | 9720 |
|
$0.0030 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_07139674
|
Arrow Electronics | Res Thick Film 1206 15 Ohm 5% 0.25W(1/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 1732 Container: Cut Strips | Americas - 2677 |
|
$0.0029 / $0.0998 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Resistor - 15 ohm ±5% - 0.25W - SMD 1206 - Tape&Reel RoHS: Compliant | 0 |
|
$0.0036 / $0.0062 | Buy Now |
|
DISTI #
27187280
|
Verical | Res Thick Film 1206 15 Ohm 5% 0.25W(1/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 | Americas - 30000 |
|
$0.0102 / $0.0120 | Buy Now |
|
DISTI #
RMCF1206JT15R0
|
IBS Electronics | RMCF1206JT15R0 BY STACKPOLE ELECTRONICS IS A 1206 THICK FILM CHIP RESISTOR WITH 15Ω, RESISTANCE 5% TOLERANCE 0.25W POWER RATING 200PPM/C TEMPERATURE COEFFICIENT SUITABLE FOR AUTOMOTIVE APPLICATIONS AND AEC-Q200 QUALIFIED. Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.0036 / $0.0041 | Buy Now |
|
|
NAC | RESISTOR, 1206, 15 ohm, 5%, 0.25W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 30000 |
|
$0.0060 / $0.0070 | Buy Now |
Part Details for RMCF1206JT15R0

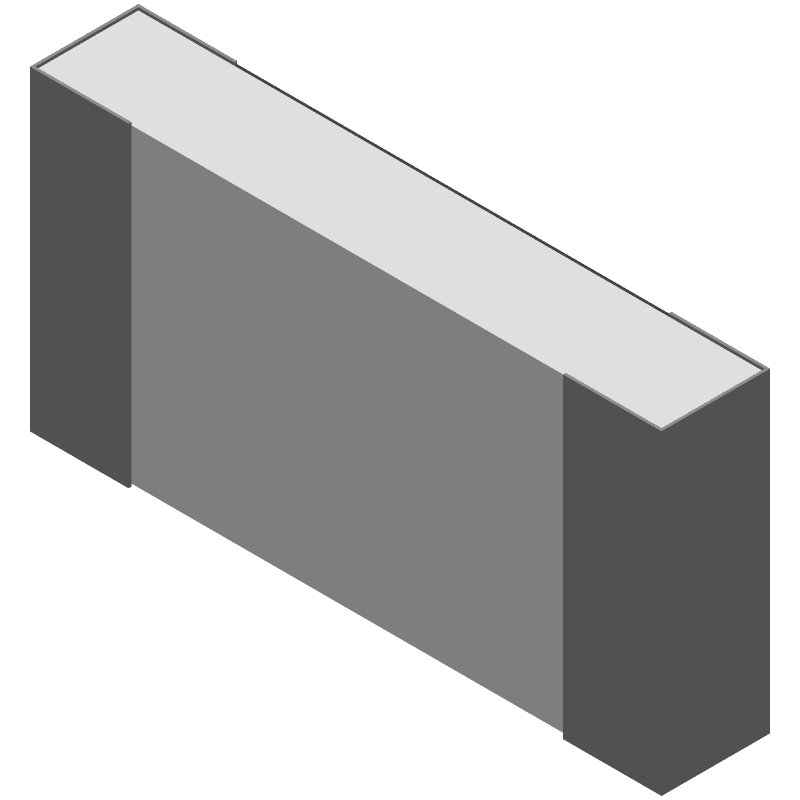

RMCF1206JT15R0 CAD Models
RMCF1206JT15R0 Part Data Attributes
|
|
RMCF1206JT15R0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RMCF1206JT15R0
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 15ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 15 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 200 V |
