RMCF0805JTR100 by: SEI Stackpole Electronics Inc

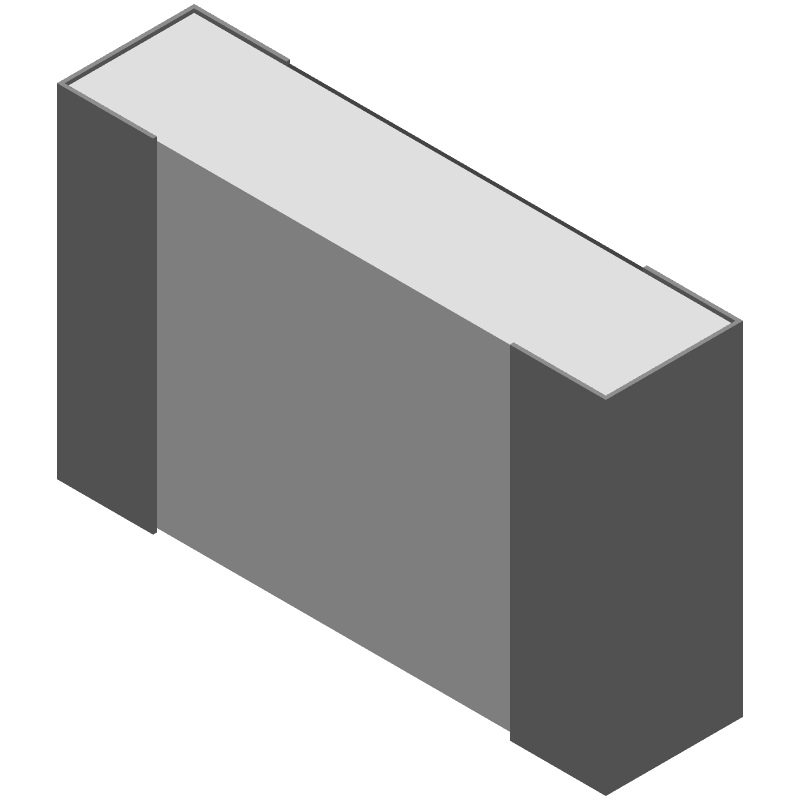

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 0.1ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RMCF0805JTR100 by SEI Stackpole Electronics Inc

Results Overview of RMCF0805JTR100 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0805JTR100 Information

RMCF0805JTR100 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0805JTR100

Part # Distributor Description Stock Price Buy
DISTI # 738-RMCF0805JTR100CT-ND
DigiKey RES 0.1 OHM 5% 1/8W 0805 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3259
In Stock
  • 1 $0.2100
  • 10 $0.1090
  • 50 $0.0738
  • 100 $0.0638
  • 500 $0.0480
  • 1,000 $0.0434
  • 5,000 $0.0361
  • 10,000 $0.0339
  • 15,000 $0.0329
  • 25,000 $0.0318
  • 35,000 $0.0311
  • 50,000 $0.0305
  • 125,000 $0.0292
  • 250,000 $0.0285
$0.0285 / $0.2100 Buy Now
DISTI # RMCF0805JTR100
Avnet Americas - Tape and Reel (Alt: RMCF0805JTR100) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel 100000 Factory Stock
  • 5,000 $0.0333
  • 10,000 $0.0333
  • 20,000 $0.0333
  • 30,000 $0.0333
  • 40,000 $0.0333
$0.0333 Buy Now
DISTI # 708-RMCF0805JTR100
Mouser Electronics Thick Film Resistors - SMD RES, 0805, 0.1 ohm, 5%, 0.125W RoHS: Compliant 0
  • 5,000 $0.0360
  • 10,000 $0.0320
  • 25,000 $0.0300
  • 50,000 $0.0280
$0.0280 / $0.0360 Order Now
Onlinecomponents.com Thick Film Resistor - 0.1 ohm ±5% - 0.125W - SMD 0805 - Tape&Reel RoHS: Compliant 100000 Factory Stock
  • 5,000 $0.0436
  • 10,000 $0.0407
  • 20,000 $0.0381
  • 40,000 $0.0372
$0.0372 / $0.0436 Buy Now
DISTI # 28957809
Verical Res Thick Film 0805 0.1 Ohm 5% 0.125W(1/8W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Americas - 100000
  • 5,000 $0.2058
$0.2058 Buy Now
NAC RESISTOR, 0805, 0.1 ohm, 5%, 0.125W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 100000
  • 5,000 $0.1020
  • 25,000 $0.0870
  • 125,000 $0.0762
$0.0762 / $0.1020 Buy Now
Master Electronics Thick Film Resistor - 0.1 ohm ±5% - 0.125W - SMD 0805 - Tape&Reel RoHS: Compliant 100000 Factory Stock
  • 5,000 $0.0436
  • 10,000 $0.0407
  • 20,000 $0.0381
  • 40,000 $0.0372
$0.0372 / $0.0436 Buy Now

Part Details for RMCF0805JTR100

RMCF0805JTR100 Part Data Attributes

Parametric Data
RMCF0805JTR100 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0805JTR100 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.125W, 0.1ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 0.1 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 150 V

RMCF0805JTR100 Related Parts

RMCF0805JTR100 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RMCF0805JTR100 is a rectangular pad with a size of 0.8mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.

  • Yes, RMCF0805JTR100 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, it's essential to consider the component's parasitic inductance and capacitance when designing high-frequency circuits.

  • RMCF0805JTR100 is rated for operation up to 125°C, with a derating of 1.25% per °C above 80°C. While it can withstand high temperatures, it's crucial to consider the component's power rating and ensure that it does not exceed the maximum allowed power dissipation at elevated temperatures.

  • Yes, RMCF0805JTR100 is compatible with lead-free soldering processes, including RoHS and WEEE compliance. The component's terminations are made of a tin-silver-copper alloy, which is suitable for lead-free soldering.

  • The typical tolerance for the resistance value of RMCF0805JTR100 is ±1%. However, it's essential to check the specific tolerance for the particular batch or lot, as it may vary depending on the manufacturing process and quality control.
