Resistors / Fixed Resistors / RMCF0805JT3K00
Datasheets
RMCF0805JT3K00 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RMCF0805JT3K00 by SEI Stackpole Electronics Inc

Results Overview of RMCF0805JT3K00 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0805JT3K00 Information

RMCF0805JT3K00 by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0805JT3K00

Part # Distributor Description Stock Price Buy
DISTI # RMCF0805JT3K00CT-ND
DigiKey RES 3K OHM 5% 1/8W 0805 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 119362
In Stock
  • 1 $0.1000
  • 10 $0.0220
  • 50 $0.0126
  • 100 $0.0101
  • 500 $0.0064
  • 1,000 $0.0054
  • 5,000 $0.0034
  • 10,000 $0.0022
  • 15,000 $0.0022
  • 25,000 $0.0022
  • 35,000 $0.0022
  • 50,000 $0.0022
  • 125,000 $0.0021
  • 250,000 $0.0021
  • 500,000 $0.0020
$0.0020 / $0.1000 Buy Now
DISTI # RMCF0805JT3K00
Avnet Americas Res Thick Film 0805 3K Ohm 5% 1/8W ?100ppm/?C Molded SMD SMD Paper T/R - Tape and Reel (Alt: RMCF0805JT3K00) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel 60000 Factory Stock
  • 5,000 $0.0019
  • 10,000 $0.0019
  • 20,000 $0.0019
  • 30,000 $0.0019
  • 40,000 $0.0019
$0.0019 Buy Now
DISTI # 708-RMCF0805JT3K00
Mouser Electronics Thick Film Resistors - SMD 3KOhms 0805 0.125W 5% Std Power AEC-Q200 RoHS: Compliant 72940
  • 1 $0.1000
  • 10 $0.0110
  • 100 $0.0090
  • 500 $0.0060
  • 1,000 $0.0050
  • 5,000 $0.0030
  • 10,000 $0.0020
$0.0020 / $0.1000 Buy Now
DISTI # V72:2272_07142579
Arrow Electronics Res Thick Film 0805 3K Ohm 5% 0.125W(1/8W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2125 Container: Cut Strips Americas - 919
  • 1 $0.0430
  • 10 $0.0047
  • 100 $0.0039
  • 250 $0.0038
  • 500 $0.0019
$0.0019 / $0.0430 Buy Now
Future Electronics RMCF Series 0805 3 kOhm 0.125 W ±5 % ±100 ppm/°C SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks Container: Reel 25000
Reel
  • 5,000 $0.0020
  • 20,000 $0.0019
  • 50,000 $0.0019
  • 125,000 $0.0018
  • 200,000 $0.0017
$0.0017 / $0.0020 Buy Now
Onlinecomponents.com Thick Film Resistor - 3 kohm ±5% - 0.125W - SMD 0805 - Tape&Reel RoHS: Compliant 60000 Factory Stock
  • 5,000 $0.0020
  • 10,000 $0.0019
  • 20,000 $0.0018
  • 40,000 $0.0017
$0.0017 / $0.0020 Buy Now
DISTI # 32029783
Verical Res Thick Film 0805 3K Ohm 5% 0.125W(1/8W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 15000 Package Multiple: 5000 Americas - 60000
  • 15,000 $0.0085
  • 30,000 $0.0078
  • 45,000 $0.0073
  • 60,000 $0.0069
$0.0069 / $0.0085 Buy Now
Bristol Electronics   9600
RFQ
Quest Components   7680
  • 1 $0.0390
  • 770 $0.0130
  • 3,847 $0.0078
$0.0078 / $0.0390 Buy Now
Future Electronics RMCF Series 0805 3 kOhm 0.125 W �5 % �100 ppm/�C SMT Thick Film Chip Resistor Min Qty: 5000 Package Multiple: 5000 25000
null
  • 5,000 $0.0021
  • 20,000 $0.0020
  • 50,000 $0.0019
  • 125,000 $0.0019
  • 200,000 $0.0018
$0.0018 / $0.0021 Buy Now
NAC RESISTOR, 0805, 3 Kohm, 5%, 0.125W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 60000
  • 5,000 $0.0050
  • 125,000 $0.0040
$0.0040 / $0.0050 Buy Now
LCSC 125mW Thick Film Resistors 150V 200ppm/ 5% 3k 0805 Chip Resistor - Surface Mount ROHS 1300
  • 100 $0.0077
  • 1,000 $0.0061
  • 5,000 $0.0052
  • 10,000 $0.0047
  • 50,000 $0.0042
  • 100,000 $0.0040
$0.0040 / $0.0077 Buy Now
Master Electronics Thick Film Resistor - 3 kohm ±5% - 0.125W - SMD 0805 - Tape&Reel RoHS: Compliant 60000 Factory Stock
  • 5,000 $0.0020
  • 10,000 $0.0019
  • 20,000 $0.0018
  • 40,000 $0.0017
$0.0017 / $0.0020 Buy Now

Part Details for RMCF0805JT3K00

RMCF0805JT3K00 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

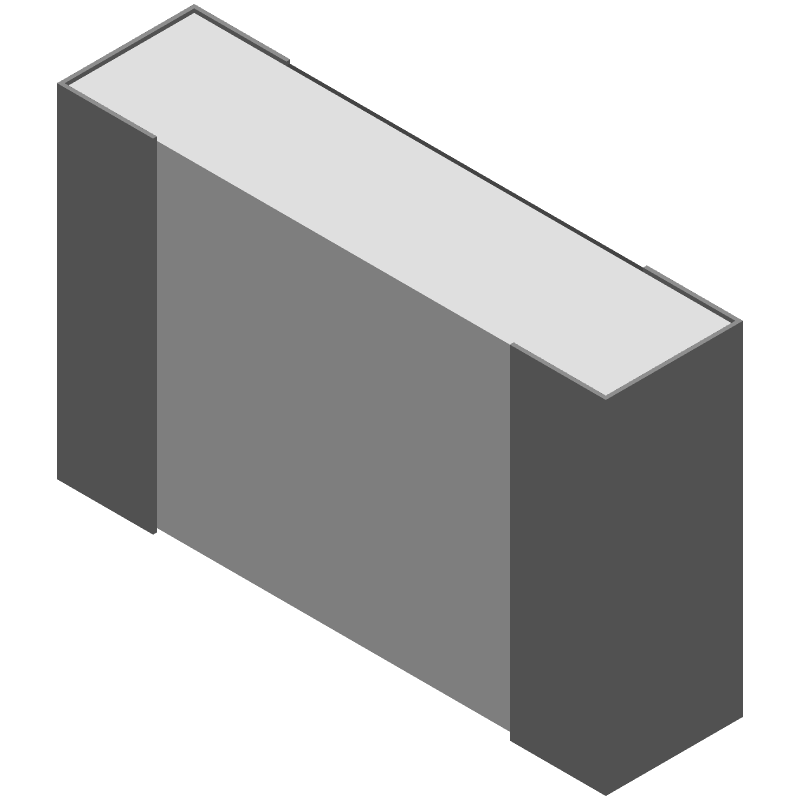

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RMCF0805JT3K00 Part Data Attributes

Parametric Data
RMCF0805JT3K00 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0805JT3K00 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 3000 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 150 V

Alternate Parts for RMCF0805JT3K00

This table gives cross-reference parts and alternative options found for RMCF0805JT3K00. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMCF0805JT3K00, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RK73B2ALTC302J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RMCF0805JT3K00 vs RK73B2ALTC302J
CR0805-10W-302JSNT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3000ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RMCF0805JT3K00 vs CR0805-10W-302JSNT
CR0805-8W-302JPT VENKEL LTD Check for Price Fixed Resistor, 0.125W, 3000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, RMCF0805JT3K00 vs CR0805-8W-302JPT
RK73K2ATD3.0KOHMJ KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RMCF0805JT3K00 vs RK73K2ATD3.0KOHMJ
RC0805JRG133K0 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP RMCF0805JT3K00 vs RC0805JRG133K0
WR08X302JT Walsin Technology Corporation Check for Price RESISTOR, 0.125W, 5%, 200ppm, 3000ohm, SURFACE MOUNT, 0805, CHIP RMCF0805JT3K00 vs WR08X302JT
CR0805-10W-302JPT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3000ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RMCF0805JT3K00 vs CR0805-10W-302JPT-13
ST0805J3K0D50 Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Ruthenium Oxide, 0.125W, 3000ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RMCF0805JT3K00 vs ST0805J3K0D50
MC0805-302-JTW RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RMCF0805JT3K00 vs MC0805-302-JTW
RK73A2ATTD302J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3000ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RMCF0805JT3K00 vs RK73A2ATTD302J

RMCF0805JT3K00 Related Parts

RMCF0805JT3K00 Frequently Asked Questions (FAQ)

  • The operating temperature range of the RMCF0805JT3K00 is -55°C to 155°C.

  • Yes, the RMCF0805JT3K00 is suitable for high-frequency applications due to its low inductance and high-frequency stability.

  • The power rating of the RMCF0805JT3K00 is 0.125W.

  • Yes, the RMCF0805JT3K00 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The tolerance of the RMCF0805JT3K00 is ±5%.
