RMCF0805FT24K0 Information
RMCF0805FT24K0 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RMCF0805FT24K0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RMCF0805FT24K0CT-ND
|
DigiKey | RES 24K OHM 1% 1/8W 0805 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
44588 In Stock |
|
$0.0029 / $0.1000 | Buy Now |
|
DISTI #
RMCF0805FT24K0
|
Avnet Americas | - Tape and Reel (Alt: RMCF0805FT24K0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 220000 Factory Stock |
|
$0.0024 | Buy Now |
|
DISTI #
708-RMCF0805FT24K0
|
Mouser Electronics | Thick Film Resistors - SMD 24KOhms 0805 0.125W 1% Std Power AEC-Q200 RoHS: Compliant | 12510 |
|
$0.0030 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_07140329
|
Arrow Electronics | Res Thick Film 0805 24K Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2143 Container: Cut Strips | Americas - 12 |
|
$0.0055 | Buy Now |
|
|
Onlinecomponents.com | Thick Film Resistor - 24 kohm ±1% - 0.125W - SMD 0805 - Tape&Reel RoHS: Compliant | 220000 Factory Stock |
|
$0.0036 / $0.0052 | Buy Now |
|
DISTI #
27462684
|
Verical | Res Thick Film 0805 24K Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 10000 Package Multiple: 5000 | Americas - 220000 |
|
$0.0082 / $0.0103 | Buy Now |
|
|
NAC | RESISTOR, 0805, 24 Kohm, 1%, 0.125W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 220000 |
|
$0.0050 / $0.0060 | Buy Now |
|
|
Master Electronics | Thick Film Resistor - 24 kohm ±1% - 0.125W - SMD 0805 - Tape&Reel RoHS: Compliant | 220000 Factory Stock |
|
$0.0036 / $0.0052 | Buy Now |
Part Details for RMCF0805FT24K0

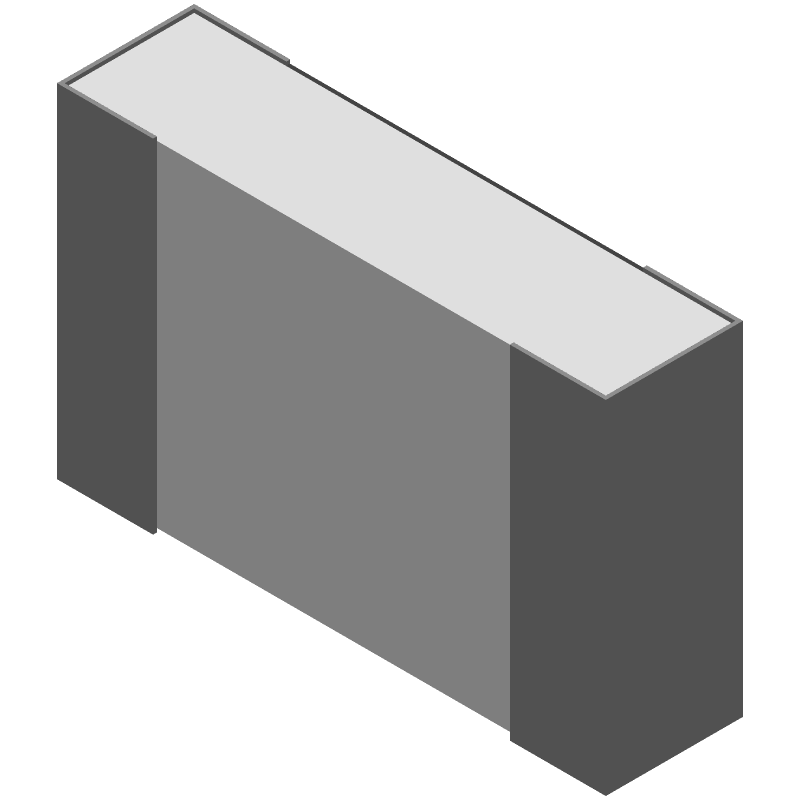

RMCF0805FT24K0 CAD Models
RMCF0805FT24K0 Part Data Attributes
|
|
RMCF0805FT24K0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RMCF0805FT24K0
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.125W, 24000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 24000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
RMCF0805FT24K0 Frequently Asked Questions (FAQ)
-
The recommended land pattern for RMCF0805FT24K0 is a rectangular pad with a size of 1.2mm x 1.4mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
-
Yes, RMCF0805FT24K0 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, it's essential to consider the component's parasitic inductance and capacitance when designing high-frequency circuits.
-
RMCF0805FT24K0 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the component's capacitance and ESR may vary with temperature, so it's essential to consider these factors when designing circuits for high-temperature environments.
-
Yes, RMCF0805FT24K0 is compatible with lead-free soldering processes, including RoHS and WEEE compliant soldering. The component's terminations are made of a lead-free material, ensuring compliance with environmental regulations.
-
RMCF0805FT24K0 should be stored in a dry, cool place, away from direct sunlight and moisture. The component should be handled with care to avoid mechanical stress, and electrostatic discharge (ESD) precautions should be taken to prevent damage.
