Resistors / Fixed Resistors / RMCF0603JT43K0
Datasheets
RMCF0603JT43K0 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP

Part Details for RMCF0603JT43K0 by SEI Stackpole Electronics Inc

Results Overview of RMCF0603JT43K0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0603JT43K0 Information

RMCF0603JT43K0 by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0603JT43K0

Part # Distributor Description Stock Price Buy
DISTI # 738-RMCF0603JT43K0CT-ND
DigiKey RES 43K OHM 5% 1/10W 0603 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 12370
In Stock
  • 1 $0.1000
  • 10 $0.0190
  • 50 $0.0106
  • 100 $0.0086
  • 500 $0.0054
  • 1,000 $0.0045
  • 5,000 $0.0031
  • 10,000 $0.0027
  • 15,000 $0.0025
  • 25,000 $0.0023
  • 35,000 $0.0022
  • 50,000 $0.0021
  • 125,000 $0.0018
  • 250,000 $0.0017
  • 500,000 $0.0016
$0.0016 / $0.1000 Buy Now
DISTI # RMCF0603JT43K0
Avnet Americas - Tape and Reel (Alt: RMCF0603JT43K0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel 110000 Factory Stock
  • 5,000 $0.0013
  • 10,000 $0.0013
  • 20,000 $0.0013
  • 30,000 $0.0013
  • 40,000 $0.0013
$0.0013 Buy Now
DISTI # 708-RMCF0603JT43K0
Mouser Electronics Thick Film Resistors - SMD RES, 0603, 43 Kohm, 5%, 0.1W RoHS: Compliant 0
  • 5,000 $0.0020
$0.0020 Order Now
Onlinecomponents.com Thick Film Resistor - 43 kohm ±5% - 0.1W - SMD 0603 - Tape&Reel RoHS: Compliant 110000 Factory Stock
  • 5,000 $0.0014
  • 10,000 $0.0013
  • 20,000 $0.0012
  • 40,000 $0.0011
$0.0011 / $0.0014 Buy Now
DISTI # 27533836
Verical Res Thick Film 0603 43K Ohm 5% 0.1W(1/10W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 20000 Package Multiple: 5000 Americas - 110000
  • 20,000 $0.0051
  • 60,000 $0.0047
  • 90,000 $0.0044
$0.0044 / $0.0051 Buy Now
NAC RESISTOR, 0603, 43 Kohm, 5%, 0.1W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 110000
  • 5,000 $0.0030
  • 125,000 $0.0030
$0.0030 Buy Now
DISTI # RMCF0603JT43K0
Avnet Asia Res Thick Film 0603 43K Ohm 5% 1/10W ?100ppm/?C Molded SMD SMD Paper T/R (Alt: RMCF0603JT43K0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days 0
RFQ
Component Electronics, Inc IN STOCK SHIP TODAY 3700
  • 1 $0.1200
  • 100 $0.0900
  • 1,000 $0.0800
$0.0800 / $0.1200 Buy Now
Master Electronics Thick Film Resistor - 43 kohm ±5% - 0.1W - SMD 0603 - Tape&Reel RoHS: Compliant 110000 Factory Stock
  • 5,000 $0.0014
  • 10,000 $0.0013
  • 20,000 $0.0012
  • 40,000 $0.0011
$0.0011 / $0.0014 Buy Now

Part Details for RMCF0603JT43K0

RMCF0603JT43K0 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

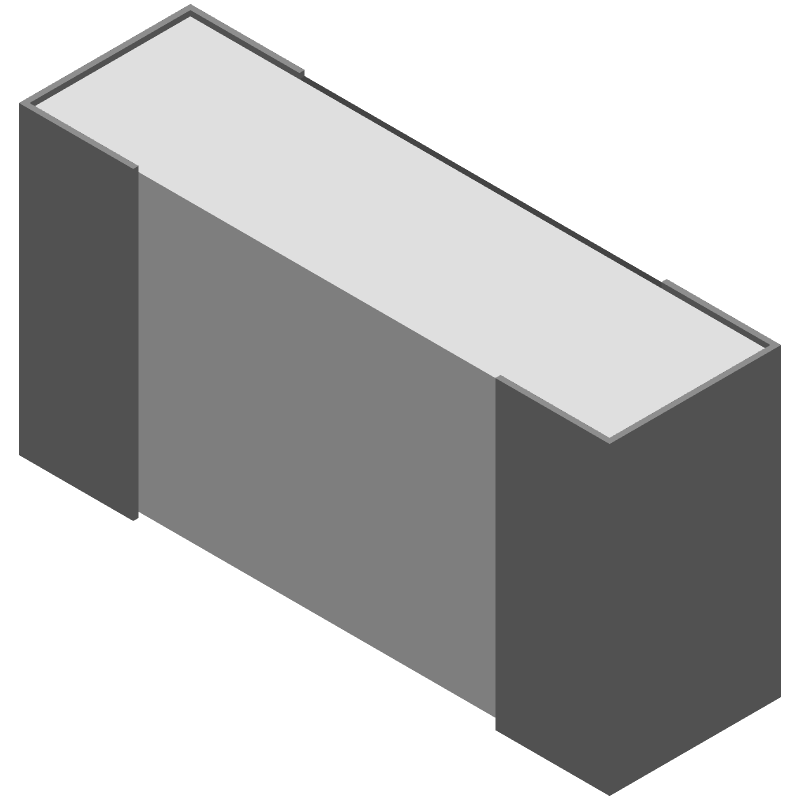

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RMCF0603JT43K0 Part Data Attributes

Parametric Data
RMCF0603JT43K0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0603JT43K0 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 43000 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 75 V

Alternate Parts for RMCF0603JT43K0

This table gives cross-reference parts and alternative options found for RMCF0603JT43K0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMCF0603JT43K0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR0603-10W-433JT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 75V, 5% +/-Tol, -200,200ppm/Cel, 0603, RMCF0603JT43K0 vs CR0603-10W-433JT-13
CR0603-JW-433EPF Bourns Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP RMCF0603JT43K0 vs CR0603-JW-433EPF
232270270433L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP RMCF0603JT43K0 vs 232270270433L
CRCW0603433JRT5-E3 Vishay Intertechnologies Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 5%, 200ppm, 43000ohm, SURFACE MOUNT, 0603, CHIP RMCF0603JT43K0 vs CRCW0603433JRT5-E3
CR0603-16W-433JPT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 43000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RMCF0603JT43K0 vs CR0603-16W-433JPT
CR0603-16W-433JT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 43000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RMCF0603JT43K0 vs CR0603-16W-433JT-13
RCG060343K0JNEL Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP RMCF0603JT43K0 vs RCG060343K0JNEL
232270270433 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP RMCF0603JT43K0 vs 232270270433
CR0603-JW-433ELF Bourns Inc Check for Price Fixed Resistor, Ruthenium Oxide, 0.1W, 43000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RMCF0603JT43K0 vs CR0603-JW-433ELF
CRCW060343K0JNEAC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 43000ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP RMCF0603JT43K0 vs CRCW060343K0JNEAC

RMCF0603JT43K0 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RMCF0603JT43K0 is a rectangular pad with a size of 0.6mm x 0.3mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.

  • Yes, RMCF0603JT43K0 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the self-resonant frequency (SRF) of the component, which is around 2.5 GHz, and ensure that the operating frequency is below the SRF to avoid resonance issues.

  • RMCF0603JT43K0 is rated for operation up to 150°C, with a derating of 1% per °C above 125°C. It's essential to consider the temperature coefficient of resistance (TCR) and ensure that the component is within its specified operating temperature range to maintain its performance and reliability.

  • The recommended soldering profile for RMCF0603JT43K0 is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 20-30 seconds, and a ramp rate of 3°C/second. It's essential to follow the manufacturer's recommended soldering profile to ensure reliable assembly and minimize the risk of component damage.

  • Yes, RMCF0603JT43K0 is suitable for automotive applications, as it meets the AEC-Q200 qualification standard for passive components. However, it's essential to ensure that the component meets the specific requirements of the automotive application, including temperature range, vibration, and reliability.
