Resistors / Metal Glaze/Thick Film Resistors / RMCF0402FT4K64
Datasheets

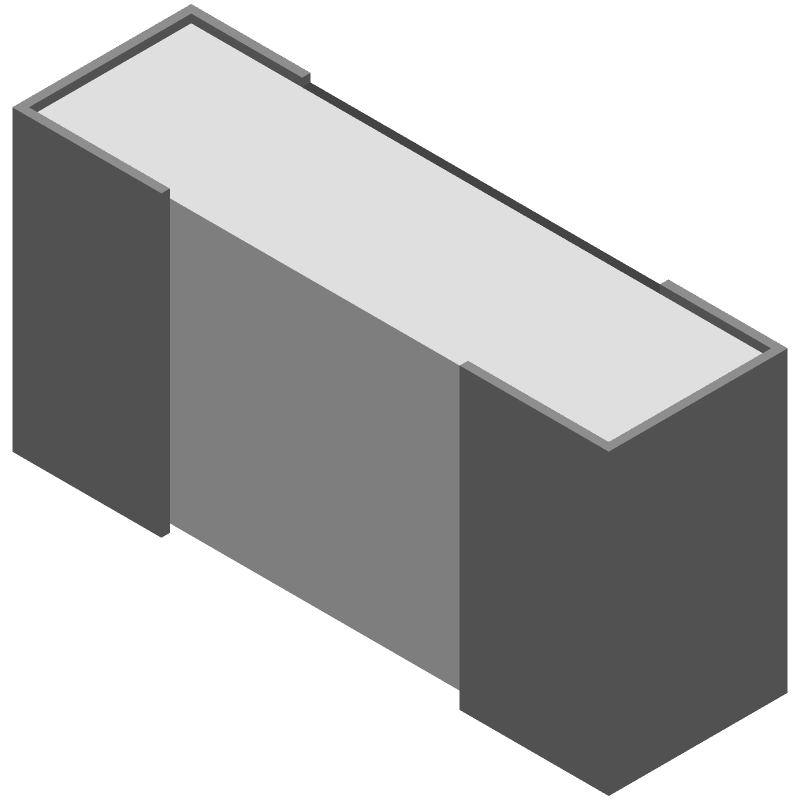

RMCF0402FT4K64 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 4640ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for RMCF0402FT4K64 by SEI Stackpole Electronics Inc

Results Overview of RMCF0402FT4K64 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0402FT4K64 Information

RMCF0402FT4K64 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0402FT4K64

Part # Distributor Description Stock Price Buy
DISTI # RMCF0402FT4K64CT-ND
DigiKey RES 4.64K OHM 1% 1/16W 0402 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 416069
In Stock
  • 1 $0.1000
  • 10 $0.0190
  • 100 $0.0086
  • 1,000 $0.0045
  • 2,500 $0.0036
  • 5,000 $0.0035
  • 10,000 $0.0022
  • 20,000 $0.0022
  • 30,000 $0.0022
  • 50,000 $0.0021
  • 70,000 $0.0020
  • 100,000 $0.0019
  • 250,000 $0.0017
  • 500,000 $0.0016
  • 1,000,000 $0.0015
$0.0015 / $0.1000 Buy Now
DISTI # RMCF0402FT4K64
Avnet Americas - Tape and Reel (Alt: RMCF0402FT4K64) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days Container: Reel 10000
310000 Factory Stock
  • 10,000 $0.0018
  • 20,000 $0.0018
  • 40,000 $0.0018
  • 60,000 $0.0018
  • 80,000 $0.0018
$0.0018 Buy Now
DISTI # 708-RMCF0402FT4K64
Mouser Electronics Thick Film Resistors - SMD 4.64KOhms 0402 0.0625W 1% Std Power AEC-Q200 RoHS: Compliant 38687
  • 1 $0.1000
  • 10 $0.0190
  • 100 $0.0080
  • 500 $0.0070
  • 1,000 $0.0040
  • 10,000 $0.0020
$0.0020 / $0.1000 Buy Now
Onlinecomponents.com Thick Film Resistor - 4.64 kohm ±1% - 0.063W - SMD 0402 - Tape&Reel RoHS: Compliant 310000 Factory Stock
  • 10,000 $0.0018
  • 20,000 $0.0017
  • 40,000 $0.0016
  • 80,000 $0.0015
$0.0015 / $0.0018 Buy Now
DISTI # 30654351
Verical Res Thick Film 0402 4.64K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 10000 Package Multiple: 10000 Americas - 310000
  • 10,000 $0.0068
  • 160,000 $0.0062
  • 240,000 $0.0058
$0.0058 / $0.0068 Buy Now
Future Electronics RES 4.64K OHM 1% 1/16W 0402 Min Qty: 10000 Package Multiple: 10000 20000
null
  • 10,000 $0.0017
  • 40,000 $0.0016
  • 150,000 $0.0016
  • 300,000 $0.0015
  • 750,000 $0.0015
$0.0015 / $0.0017 Buy Now
NAC RESISTOR, 0402, 4.64 Kohm, 1%, 0.0625W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 10000 310000
  • 10,000 $0.0040
  • 250,000 $0.0030
$0.0030 / $0.0040 Buy Now
Master Electronics Thick Film Resistor - 4.64 kohm ±1% - 0.063W - SMD 0402 - Tape&Reel RoHS: Compliant 310000 Factory Stock
  • 10,000 $0.0018
  • 20,000 $0.0017
  • 40,000 $0.0016
  • 80,000 $0.0015
$0.0015 / $0.0018 Buy Now

Part Details for RMCF0402FT4K64

RMCF0402FT4K64 Part Data Attributes

Parametric Data
RMCF0402FT4K64 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0402FT4K64 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.063W, 4640ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.3 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 4640 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

RMCF0402FT4K64 Related Parts

RMCF0402FT4K64 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the RMCF0402FT4K64 is 260°C for 10 seconds.

  • Yes, the RMCF0402FT4K64 is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.

  • The power rating of the RMCF0402FT4K64 at 70°C is 0.063W.

  • Yes, the RMCF0402FT4K64 is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.

  • The MSL of the RMCF0402FT4K64 is 1, indicating that it can withstand normal humidity levels without special handling or storage.
