Resistors / Metal Glaze/Thick Film Resistors / RMCF0402FT10K0
Datasheets
RMCF0402FT10K0 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 10000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for RMCF0402FT10K0 by SEI Stackpole Electronics Inc

Results Overview of RMCF0402FT10K0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0402FT10K0 Information

RMCF0402FT10K0 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0402FT10K0

Part # Distributor Description Stock Price Buy
DISTI # RMCF0402FT10K0CT-ND
DigiKey RES 10K OHM 1% 1/16W 0402 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 6513392
In Stock
  • 1 $0.1000
  • 10 $0.0190
  • 100 $0.0086
  • 1,000 $0.0045
  • 2,500 $0.0036
  • 5,000 $0.0031
  • 10,000 $0.0022
  • 20,000 $0.0022
  • 30,000 $0.0022
  • 50,000 $0.0021
  • 70,000 $0.0020
  • 100,000 $0.0019
$0.0019 / $0.1000 Buy Now
DISTI # RMCF0402FT10K0
Avnet Americas SMD Chip Resistor, 10 kOhm, ? 1%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RMCF0402FT10K0) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days Container: Reel 70000
9900000 Factory Stock
  • 10,000 $0.0017
  • 20,000 $0.0017
  • 40,000 $0.0017
  • 60,000 $0.0017
  • 80,000 $0.0017
$0.0017 Buy Now
DISTI # RMCF0402FT10K0
Avnet Americas SMD Chip Resistor, 10 kOhm, ? 1%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RMCF0402FT10K0) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Container: Reel 9900000 Factory Stock
  • 10,000 $0.0016
  • 20,000 $0.0016
  • 40,000 $0.0016
  • 60,000 $0.0016
  • 80,000 $0.0015
$0.0015 / $0.0016 Buy Now
DISTI # 708-RMCF0402FT10K0
Mouser Electronics Thick Film Resistors - SMD 10KOhms 0402 0.0625W 1% Std Power AEC-Q200 RoHS: Compliant 1190976
  • 1 $0.1000
  • 10 $0.0110
  • 100 $0.0090
  • 500 $0.0060
  • 1,000 $0.0050
  • 2,500 $0.0030
  • 10,000 $0.0020
$0.0020 / $0.1000 Buy Now
DISTI # V36:1790_07141099
Arrow Electronics Res Thick Film 0402 10K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 50000 Package Multiple: 10000 Lead time: 17 Weeks Date Code: 2339 Americas - 1390000
  • 50,000 $0.0019
$0.0019 Buy Now
Future Electronics RMCF Series 0402 0.063 W 10 kOhm ±1 % ±100 ppm/°C SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks Container: Reel 7570000
Reel
  • 10,000 $0.0017
  • 30,000 $0.0016
  • 50,000 $0.0016
  • 200,000 $0.0015
  • 300,000 $0.0015
$0.0015 / $0.0017 Buy Now
Future Electronics RMCF Series 0402 0.063 W 10 kOhm ±1 % ±100 ppm/°C SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Container: Cut Tape/Mini-Reel 137360
Cut Tape/Mini-Reel
  • 1 $0.1000
  • 20 $0.0673
  • 150 $0.0454
  • 1,000 $0.0247
  • 5,000 $0.0072
$0.0072 / $0.1000 Buy Now
Onlinecomponents.com Thick Film Chip Resistor - 10 kohm ±1% - 0.063W - 0402 RoHS: Compliant 639984 In Stock
9900000 Factory Stock
  • 10,000 $0.0018
  • 20,000 $0.0017
  • 40,000 $0.0016
  • 80,000 $0.0015
$0.0015 / $0.0018 Buy Now
DISTI # 30654310
Verical Res Thick Film 0402 10K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 10000 Package Multiple: 10000 Americas - 9900000
  • 10,000 $0.0068
  • 4,960,000 $0.0062
  • 7,440,000 $0.0058
$0.0058 / $0.0068 Buy Now
DISTI # 88192169
Verical Res Thick Film 0402 10K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 20000 Package Multiple: 10000 Date Code: 2408 Americas - 1900000
  • 10,000 $0.0046
  • 940,000 $0.0042
  • 1,410,000 $0.0039
$0.0039 / $0.0046 Buy Now
DISTI # 87796084
Verical Res Thick Film 0402 10K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 50000 Package Multiple: 10000 Date Code: 2339 Americas - 1390000
  • 50,000 $0.0019
$0.0019 Buy Now
DISTI # 51669508
Verical Res Thick Film 0402 10K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 30000 Package Multiple: 10000 Date Code: 1646 Americas - 630000
  • 30,000 $0.0026
  • 40,000 $0.0024
  • 80,000 $0.0023
$0.0023 / $0.0026 Buy Now
Bristol Electronics   19347
RFQ
Bristol Electronics   2070
RFQ
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.063W, 10000OHM, 50V, 1%, 100PPM, SURFACE MOUNT, 0402 695481
  • 1 $0.0450
  • 128,206 $0.0036
  • 277,779 $0.0033
$0.0033 / $0.0450 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.063W, 10000OHM, 50V, 1%, 100PPM, SURFACE MOUNT, 0402 13110
  • 1 $0.1500
  • 1,001 $0.0300
  • 6,668 $0.0200
$0.0200 / $0.1500 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.063W, 10000OHM, 50V, 1%, 100PPM, SURFACE MOUNT, 0402 7667
  • 1 $0.0112
  • 447 $0.0070
  • 2,858 $0.0042
$0.0042 / $0.0112 Buy Now
Future Electronics RMCF Series 0402 0.063 W 10 kOhm �1 % �100 ppm/�C SMT Thick Film Chip Resistor Min Qty: 1 Package Multiple: 1 137360
null
  • 1 $0.1000
  • 20 $0.0676
  • 150 $0.0459
  • 1,000 $0.0254
  • 5,000 $0.0080
$0.0080 / $0.1000 Buy Now
DISTI # RMCF0402FT10K0
IBS Electronics RES THICK FILM 0402 10K OHM 1% 0.063W(1/16W) &#xB1, 100PPM/C PAD SMD AUTOMOTIVE T/R Min Qty: 10000 Package Multiple: 1 8259984
  • 10,000 $0.0060
$0.0060 Buy Now
NAC RESISTOR, 0402, 10 Kohm, 1%, 0.0625W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 10000 9904919
  • 1 $0.0040
  • 250,000 $0.0030
$0.0030 / $0.0040 Buy Now
DISTI # RMCF0402FT10K0
Avnet Asia SMD Chip Resistor, 10 kOhm, ? 1%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose (Alt: RMCF0402FT10K0) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 0 Days 0
  • 10,000 $0.0009
  • 100,000 $0.0009
  • 250,000 $0.0009
  • 500,000 $0.0009
  • 1,000,000 $0.0009
  • 2,000,000 $0.0008
  • 5,000,000 $0.0008
$0.0008 / $0.0009 Buy Now
LCSC 0.063W Thick Film Resistors 100ppm/ 1% 10k 0402 Chip Resistor - Surface Mount ROHS 3100
  • 100 $0.0030
  • 1,000 $0.0022
  • 3,000 $0.0018
  • 10,000 $0.0016
  • 50,000 $0.0014
$0.0014 / $0.0030 Buy Now
Master Electronics Thick Film Chip Resistor - 10 kohm ±1% - 0.063W - 0402 RoHS: Compliant 639984 In Stock
9900000 Factory Stock
  • 10,000 $0.0018
  • 20,000 $0.0017
  • 40,000 $0.0016
  • 80,000 $0.0015
$0.0015 / $0.0018 Buy Now
Vyrian Resistors 6741022
RFQ

Part Details for RMCF0402FT10K0

RMCF0402FT10K0 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

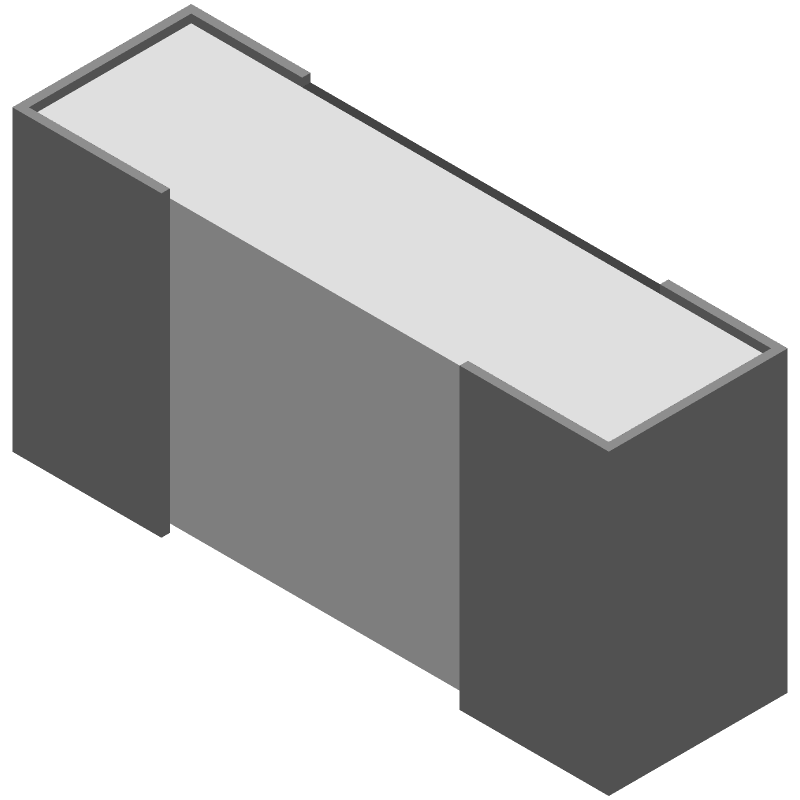

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RMCF0402FT10K0 Part Data Attributes

Parametric Data
RMCF0402FT10K0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0402FT10K0 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.063W, 10000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.3 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 10000 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

RMCF0402FT10K0 Related Parts

RMCF0402FT10K0 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the RMCF0402FT10K0 is a rectangular pad with a size of 0.5mm x 0.25mm, with a non-solder mask defined (NSMD) pad shape.

  • The RMCF0402FT10K0 is rated for operation up to 150°C, but it's recommended to derate the power rating by 50% for every 25°C above 125°C to ensure reliability.

  • Handle the RMCF0402FT10K0 by the edges to prevent damage to the component, and avoid touching the component's terminals to prevent electrostatic discharge (ESD) damage.

  • The RMCF0402FT10K0 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you must use it in a humid environment, ensure the PCB is properly coated with a moisture-resistant material.

  • The recommended soldering profile for the RMCF0402FT10K0 is a peak temperature of 240°C, with a dwell time of 3-5 seconds, and a cooling rate of 4°C/second.
