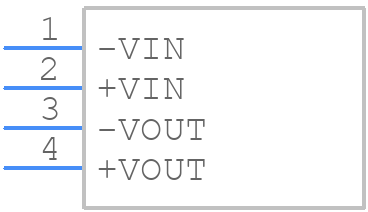

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RM-1212S by RECOM Power GmbH
Results Overview of RM-1212S by RECOM Power GmbH
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RM-1212S Information
RM-1212S by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RM-1212S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1793302
|
Farnell | DC/DC, UNREG, 0.25W, 12V, 12V, SIP4 RoHS: Compliant Min Qty: 1 Lead time: 17 Weeks, 1 Days Container: Each | 4 |
|
$6.2585 / $7.7895 | Buy Now |
|
DISTI #
945-1209-ND
|
DigiKey | DC DC CONVERTER 12V 250MW Min Qty: 1 Lead time: 16 Weeks Container: Tube |
1674 In Stock |
|
$4.9000 / $6.1200 | Buy Now |
|
DISTI #
919-RM-1212S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 12Vin 12Vout RoHS: Compliant | 114 |
|
$4.9000 / $5.9000 | Buy Now |
|
DISTI #
10000546
|
RECOM Power | 0.25W DC/DC-Converter 'ECONOLINE' SIP4 1kV unreg RoHS: Compliant | 1726 |
|
$6.1200 | RFQ |
|
DISTI #
70052152
|
RS | Recom Iso DC-DC Converter, Vin 10.8 to 13.2V dc, Vout 12V dc, I/O isolation 500V ac Min Qty: 42 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 0 |
|
$5.8400 / $6.6300 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 12VIN 1-OUT 12V 0.021A 0.25W 4-Pin SIP Tube RoHS: Compliant |
126 In Stock 648 Factory Stock |
|
$4.6800 / $5.8400 | Buy Now |
|
DISTI #
RM-1212S
|
TME | Converter: DC/DC, 0.25W, Uin: 10.8÷13.2VDC, Uout: 12VDC, Iout: 21mA Min Qty: 1 | 18 |
|
$5.4400 / $6.3600 | Buy Now |
|
DISTI #
RM-1212S
|
IBS Electronics | 0.25W DC/DC-CONVERTER ECONOLINE SIP4 1KV UNREG V. IN: 12 V. OUT: 12 MA. OUT: 21 Min Qty: 30 Package Multiple: 1 | 126 |
|
$6.0840 / $7.5920 | Buy Now |
|
DISTI #
000000000006062298
|
Sager | Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 12Vin 12Vout Min Qty: 1 | 0 |
|
$5.2600 / $6.1200 | Buy Now |
|
|
Master Electronics | Module DC-DC 12VIN 1-OUT 12V 0.021A 0.25W 4-Pin SIP Tube RoHS: Compliant |
126 In Stock 648 Factory Stock |
|
$4.6800 / $5.8400 | Buy Now |
Part Details for RM-1212S
RM-1212S CAD Models
RM-1212S Part Data Attributes
|
|
RM-1212S
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RM-1212S
RECOM Power GmbH
DC-DC Unregulated Power Supply Module, 1 Output, 0.25W, Hybrid, ROHS COMPLIANT, SIP-4
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 13.2 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XSMA-T4 | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.021 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Equivalence Code | SIP4,.18 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 0.25 W | |
| Trim/Adjustable Output | NO |
