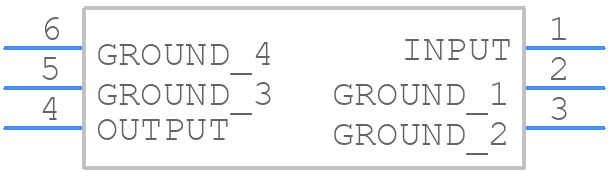

Part Symbol
-

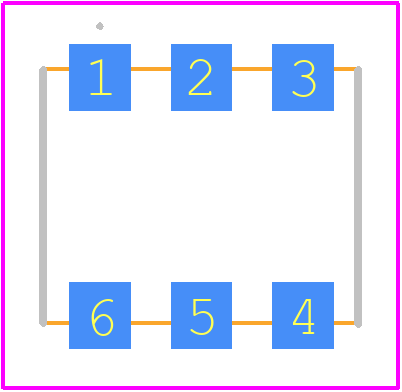

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RLM-33-2W+ by Mini-Circuits
Results Overview of RLM-33-2W+ by Mini-Circuits
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
RLM-33-2W+ Information
RLM-33-2W+ by Mini-Circuits is an RF/Microwave Limiter.
RF/Microwave Limiters are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for RLM-33-2W+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-RLM-33-2W+CT-ND
|
DigiKey | LIMITER 0.2 - 3000 MHZ, 50 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$16.5721 / $23.8300 | Buy Now |
|
DISTI #
139-RLM-33-2W
|
Mouser Electronics | RF Wireless Misc LIMITER / SURF MOUNT / RoHS RoHS: Compliant | 0 |
|
$18.0500 / $22.7000 | Order Now |
|
|
Bristol Electronics | 80 |
|
RFQ | ||
|
|
LCSC | Limiter 200kHz3GHz General-purpose SMD-6P RF Misc ICs and Modules ROHS | 4 |
|
$20.6299 / $21.6196 | Buy Now |
Part Details for RLM-33-2W+
RLM-33-2W+ CAD Models
RLM-33-2W+ Part Data Attributes
|
|
RLM-33-2W+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
RLM-33-2W+
Mini-Circuits
Limiter, 0.2MHz Min, 3000MHz Max, ROHS COMPLIANT, TT1224, 6 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Package Description | ROHS COMPLIANT, TT1224, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Additional Feature | LOW NOISE | |
| Adjustability | FIXED | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 33 dBm | |
| Input Power-Min (CW) | 12 dBm | |
| Operating Frequency-Max | 3000 MHz | |
| Operating Frequency-Min | 0.2 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Max | 13 dBm | |
| RF/Microwave Device Type | LIMITER | |
| VSWR-Max | 1.5 |
RLM-33-2W+ Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the RLM-33-2W+ is -40°C to +85°C.
-
Yes, the RLM-33-2W+ is designed for high-reliability applications and is built with high-quality components to ensure long-term reliability.
-
Yes, the RLM-33-2W+ is designed to operate in harsh environments and can withstand exposure to moisture, vibration, and shock.
-
The typical insertion loss of the RLM-33-2W+ is less than 1 dB across the frequency range of 0.5-3000 MHz.
-
Yes, the RLM-33-2W+ is RoHS compliant and meets the requirements of the European Union's Restriction of Hazardous Substances directive.
