RL204-TP by: Micro Commercial Components

Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for RL204-TP by Micro Commercial Components

Results Overview of RL204-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RL204-TP Information

RL204-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for RL204-TP

Part # Distributor Description Stock Price Buy
DISTI # 833-RL204-TP
Mouser Electronics Rectifiers Standard 400V 2A RoHS: Compliant 296
  • 1 $0.2400
  • 10 $0.1640
  • 100 $0.1040
  • 500 $0.0650
  • 1,000 $0.0470
  • 2,000 $0.0410
  • 4,000 $0.0340
  • 8,000 $0.0300
  • 24,000 $0.0260
$0.0260 / $0.2400 Buy Now
DISTI # V37:1799_06837790
Arrow Electronics Diode Switching 400V 2A 2-Pin DO-15 T/R Min Qty: 4000 Package Multiple: 4000 Lead time: 18 Weeks Date Code: 2207 Americas - 4000
  • 4,000 $0.0215
$0.0215 Buy Now
DISTI # 61769004
Verical Diode Switching 400V 2A 2-Pin DO-15 T/R Min Qty: 4000 Package Multiple: 4000 Date Code: 2207 Americas - 4000
  • 4,000 $0.0339
  • 8,000 $0.0299
  • 24,000 $0.0259
$0.0259 / $0.0339 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 1300
  • 1 $0.1900
  • 100 $0.1400
  • 1,000 $0.1300
$0.1300 / $0.1900 Buy Now
LCSC 2A 400V 1V2A DO-15 Diodes - General Purpose ROHS 20
  • 20 $0.0340
  • 200 $0.0270
  • 600 $0.0231
  • 4,000 $0.0207
  • 8,000 $0.0187
  • 20,000 $0.0176
$0.0176 / $0.0340 Buy Now

Part Details for RL204-TP

RL204-TP Part Data Attributes

Parametric Data
RL204-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:

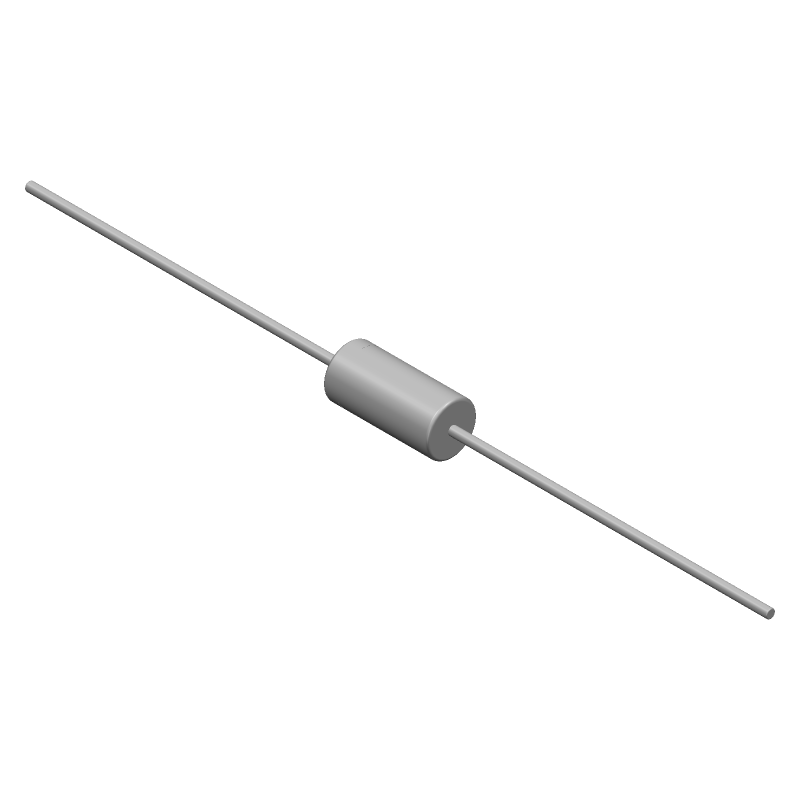

RL204-TP Micro Commercial Components Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-15
Package Description PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1 V
JEDEC-95 Code DO-15
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 60 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Output Current-Max 2 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 400 V
Reverse Current-Max 5 µA
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for RL204-TP

This table gives cross-reference parts and alternative options found for RL204-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RL204-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
FR204B0 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-204AC, DO-15, 2 PIN RL204-TP vs FR204B0
RL204-TP-HF Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, RL204-TP vs RL204-TP-HF
HER204 WEITRON INTERNATIONAL CO., LTD. Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, RL204-TP vs HER204
FR204 Sensitron Semiconductors Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2 RL204-TP vs FR204
FR204-LF Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 RL204-TP vs FR204-LF
RP204 Diotec Electronics Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, PLASTIC, DO-15, 2 PIN RL204-TP vs RP204
FR204-AP Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 RL204-TP vs FR204-AP
RGP204 Diotec Electronics Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-41, RL204-TP vs RGP204
FR204R0 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-204AC, DO-15, 2 PIN RL204-TP vs FR204R0
FR204 Suzhou Good-Ark Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-204AC, DO-15, 2 PIN RL204-TP vs FR204
Part Number Manufacturer Composite Price Description Compare
RL204GP Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, DO-15, 2 PIN RL204-TP vs RL204GP
HER205-B-HF Rectron Semiconductor Check for Price 2A, 400V, SILICON, RECTIFIER DIODE, DO-15, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 RL204-TP vs HER205-B-HF
HER205-BP-HF Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, RL204-TP vs HER205-BP-HF
HER205G Rugao Dachang Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, RL204-TP vs HER205G
HER2004 Surge Components Inc Check for Price Rectifier Diode, RL204-TP vs HER2004
FR204-TS01 Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, DO-15, 2 PIN RL204-TP vs FR204-TS01
HER204G-C Secos Corporation Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, RL204-TP vs HER204G-C
HER205 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, GREEN, PLASTIC PACKAGE-2 RL204-TP vs HER205
HER205P-B Rectron Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-15, PLASTIC, DO-15, 2 PIN RL204-TP vs HER205P-B
MUR250 Suzhou Good-Ark Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-204AC, DO-15, 2 PIN RL204-TP vs MUR250
