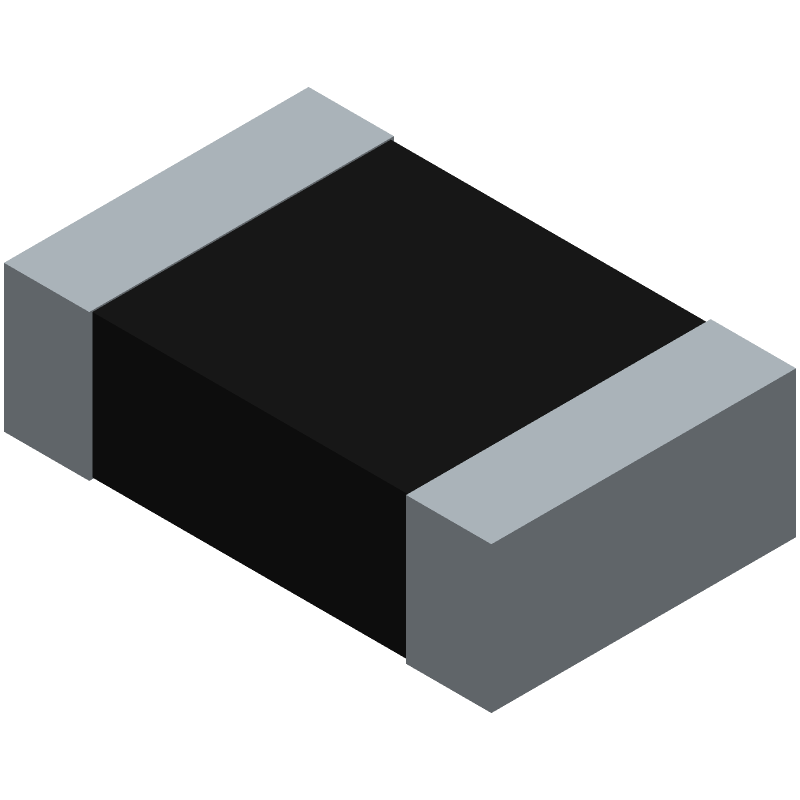

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RK73H2ATTED1000F by KOA Speer Electronics Inc
Results Overview of RK73H2ATTED1000F by KOA Speer Electronics Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RK73H2ATTED1000F Information
RK73H2ATTED1000F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RK73H2ATTED1000F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2019-RK73H2ATTED1000FCT-ND
|
DigiKey | RES 100 OHM 1% 1/4W 0805 Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3380 In Stock |
|
$0.0041 / $0.1000 | Buy Now |
|
DISTI #
660-RK73H2ATTED1000F
|
Mouser Electronics | Thick Film Resistors - SMD 1/4W 100 OHM 1% RoHS: Compliant | 27701 |
|
$0.0040 / $0.1000 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 1 %, 100 PPM, 100 OHM, SURFACE MOUNT, 0805 | 7834 |
|
$0.0056 / $0.0296 | Buy Now |
|
DISTI #
RK73H2ATTED1000F
|
TTI | Thick Film Resistors - SMD 1/4W 100 OHM 1% pbFree: Pb-Free Min Qty: 20000 Package Multiple: 10000 Container: Reel | Americas - 0 |
|
$0.0040 / $0.0056 | Buy Now |
Part Details for RK73H2ATTED1000F
RK73H2ATTED1000F CAD Models
RK73H2ATTED1000F Part Data Attributes
|
|
RK73H2ATTED1000F
KOA Speer Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RK73H2ATTED1000F
KOA Speer Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KOA SPEER ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | KOA Speer | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 10 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
RK73H2ATTED1000F Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for RK73H2ATTED1000F is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the RK73H2ATTED1000F is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.
-
The MSL of the RK73H2ATTED1000F is level 1, which means it can withstand a maximum of 30°C and 60% relative humidity for 192 hours.
-
Yes, the RK73H2ATTED1000F is AEC-Q200 qualified, which means it meets the requirements for use in automotive applications.
-
The recommended storage condition for RK73H2ATTED1000F is in a dry, cool place with a temperature range of 10°C to 30°C and relative humidity below 60%.
