RK73H2ATTDD22R0F Information
RK73H2ATTDD22R0F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RK73H2ATTDD22R0F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2019-RK73H2ATTDD22R0FCT-ND
|
DigiKey | RES 22 OHM 1% 1/4W 0805 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
18100 In Stock |
|
$0.0039 / $0.1000 | Buy Now |
|
DISTI #
660-RK73H2ATTDD22R0F
|
Mouser Electronics | Thick Film Resistors - SMD 22 ohm 1% 0.25W AEC- RoHS: Compliant | 32892 |
|
$0.0040 / $0.1000 | Buy Now |
|
DISTI #
RK73H2ATTDD22R0F
|
TTI | Thick Film Resistors - SMD 22 ohm 1% 0.25W AEC- pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel |
Americas - 20000 In Stock |
|
$0.0040 / $0.0050 | Buy Now |
Part Details for RK73H2ATTDD22R0F
RK73H2ATTDD22R0F CAD Models
RK73H2ATTDD22R0F Part Data Attributes
|
|
RK73H2ATTDD22R0F
KOA Speer Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RK73H2ATTDD22R0F
KOA Speer Electronics Inc

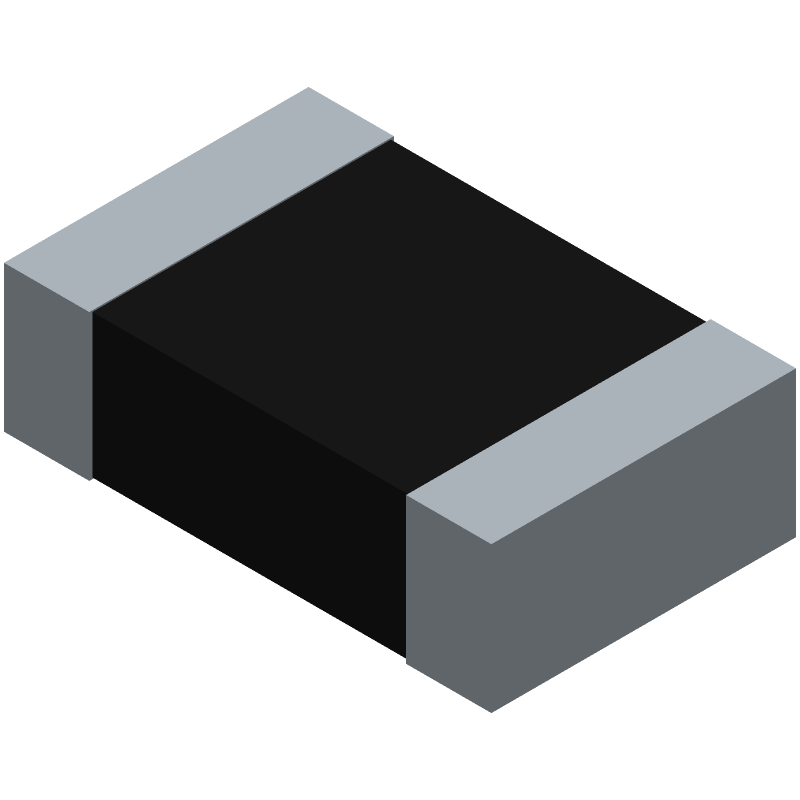

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 22ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KOA SPEER ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | KOA Speer | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, PAPER, 10 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 22 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
RK73H2ATTDD22R0F Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for RK73H2ATTDD22R0F is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the RK73H2ATTDD22R0F is a thin-film resistor designed for high-frequency applications up to several hundred MHz.
-
The power rating of the RK73H2ATTDD22R0F at 70°C is 0.25W.
-
Yes, the RK73H2ATTDD22R0F is AEC-Q200 qualified, making it suitable for use in automotive applications.
-
The MSL of the RK73H2ATTDD22R0F is level 1, which means it can withstand a maximum of 30 days in a humid environment.
