Resistors / Metal Glaze/Thick Film Resistors / RK73H2ATTD5110F
Datasheets
RK73H2ATTD5110F by:

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 511ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RK73H2ATTD5110F by KOA Speer Electronics Inc

Results Overview of RK73H2ATTD5110F by KOA Speer Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RK73H2ATTD5110F Information

RK73H2ATTD5110F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RK73H2ATTD5110F

Part # Distributor Description Stock Price Buy
DISTI # 85AH1499
Newark Res, 511R, 1%, 0.25W, 0805 Rohs Compliant: Yes |Koa RK73H2ATTD5110F RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 15810
  • 10 $0.0180
  • 25 $0.0150
  • 50 $0.0130
  • 100 $0.0100
  • 250 $0.0090
  • 500 $0.0090
  • 1,000 $0.0080
$0.0080 / $0.0180 Buy Now
DISTI # 2019-RK73H2ATTD5110FCT-ND
DigiKey RES 511 OHM 1% 1/4W 0805 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 53326
In Stock
  • 1 $0.1000
  • 10 $0.0320
  • 50 $0.0194
  • 100 $0.0159
  • 500 $0.0105
  • 1,000 $0.0090
$0.0090 / $0.1000 Buy Now
DISTI # 660-RK73H2ATTD5110F
Mouser Electronics Thick Film Resistors - SMD 1/4W 511 OHM 1% RoHS: Compliant 12240
  • 1 $0.1000
  • 10 $0.0190
  • 100 $0.0150
  • 500 $0.0100
  • 1,000 $0.0090
  • 5,000 $0.0060
  • 10,000 $0.0050
  • 25,000 $0.0040
$0.0040 / $0.1000 Buy Now
DISTI # V72:2272_06800305
Arrow Electronics Res Thick Film 0805 511 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2244 Container: Cut Strips Americas - 2299
  • 2,299 $0.0034
$0.0034 Buy Now
DISTI # 40038890
Verical Res Thick Film 0805 511 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 9260 Package Multiple: 1 Americas - 10000
  • 9,260 $0.0138
$0.0138 Buy Now
DISTI # 65551412
Verical Res Thick Film 0805 511 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1852 Package Multiple: 1 Date Code: 2244 Americas - 2299
  • 1,852 $0.0034
$0.0034 Buy Now
Bristol Electronics   9961
RFQ
Quest Components RES,THICK FILM,511OHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE,LEAD FREE 4000
  • 1 $0.0750
  • 401 $0.0250
  • 2,001 $0.0150
$0.0150 / $0.0750 Buy Now
Quest Components RES,THICK FILM,511OHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE,LEAD FREE 2275
  • 1 $0.0184
  • 273 $0.0115
  • 1,740 $0.0069
$0.0069 / $0.0184 Buy Now
DISTI # RK73H2ATTD5110F
TTI Thick Film Resistors - SMD 1/4W 511 OHM 1% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 120000
In Stock
  • 5,000 $0.0059
  • 10,000 $0.0049
  • 15,000 $0.0048
  • 25,000 $0.0040
$0.0040 / $0.0059 Buy Now

Part Details for RK73H2ATTD5110F

RK73H2ATTD5110F CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

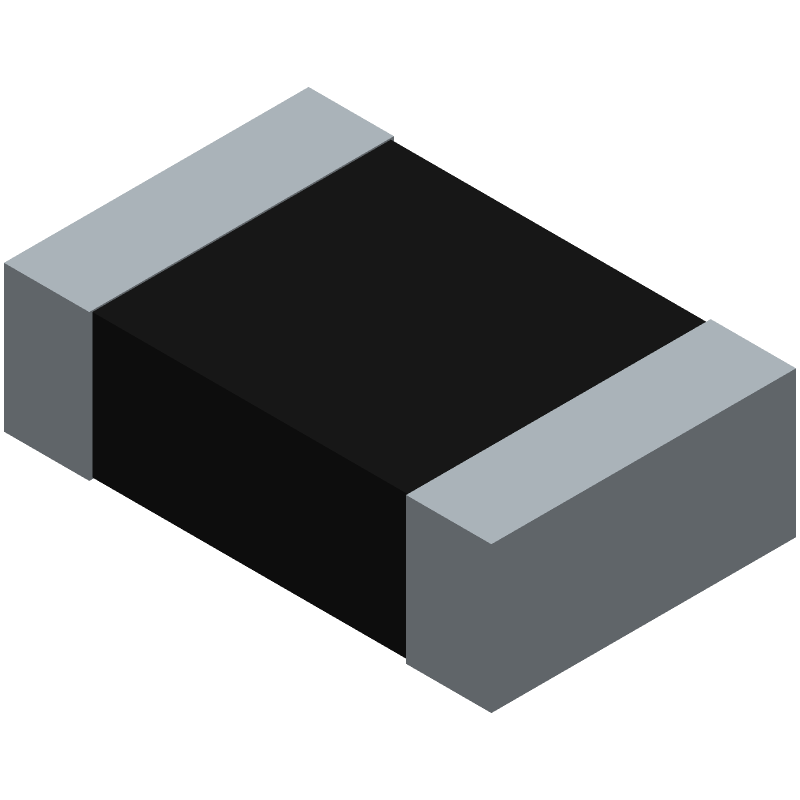

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RK73H2ATTD5110F Part Data Attributes

Parametric Data
RK73H2ATTD5110F KOA Speer Electronics Inc
Buy Now Datasheet
Compare Parts:
RK73H2ATTD5110F KOA Speer Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.25W, 511ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KOA SPEER ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer KOA Speer
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Punched Paper, 7 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 511 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

RK73H2ATTD5110F Related Parts

RK73H2ATTD5110F Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the resistor.

  • Yes, the RK73H2ATTD5110F is a thick-film resistor with a low inductance design, making it suitable for high-frequency applications up to 1 GHz.

  • The power rating of the RK73H2ATTD5110F decreases with increasing temperature. At 70°C, the power rating is 0.5W, and at 155°C, the power rating is 0.25W.

  • Yes, the RK73H2ATTD5110F is compatible with lead-free soldering and is RoHS compliant.

  • The MSL of the RK73H2ATTD5110F is level 1, which means it can withstand exposure to moisture for up to 30 days without damage.
