Resistors / Metal Glaze/Thick Film Resistors / RK73H2ATTD1211F
Datasheets
RK73H2ATTD1211F by: KOA Speer Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1210ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RK73H2ATTD1211F by KOA Speer Electronics Inc

Results Overview of RK73H2ATTD1211F by KOA Speer Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RK73H2ATTD1211F Information

RK73H2ATTD1211F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RK73H2ATTD1211F

Part # Distributor Description Stock Price Buy
DISTI # 2019-RK73H2ATTD1211FCT-ND
DigiKey RES 1.21K OHM 1% 1/4W 0805 Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 22640
In Stock
  • 1 $0.1000
  • 10 $0.0320
  • 50 $0.0194
  • 100 $0.0159
  • 500 $0.0105
  • 1,000 $0.0090
  • 5,000 $0.0066
  • 10,000 $0.0055
  • 15,000 $0.0049
  • 25,000 $0.0048
  • 35,000 $0.0048
  • 50,000 $0.0043
  • 125,000 $0.0042
  • 250,000 $0.0042
  • 500,000 $0.0040
$0.0040 / $0.1000 Buy Now
DISTI # 660-RK73H2ATTD1211F
Mouser Electronics Thick Film Resistors - SMD 1/4W 1.21K OHM 1% RoHS: Compliant 33093
  • 1 $0.1000
  • 10 $0.0190
  • 100 $0.0150
  • 500 $0.0100
  • 1,000 $0.0090
  • 5,000 $0.0060
  • 10,000 $0.0050
  • 50,000 $0.0040
$0.0040 / $0.1000 Buy Now
DISTI # V72:2272_06797140
Arrow Electronics Res Thick Film 0805 1.21K Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2231 Container: Cut Strips Americas - 4666
  • 4,666 $0.0061
$0.0061 Buy Now
DISTI # 63445247
Verical Res Thick Film 0805 1.21K Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1725 Package Multiple: 1 Date Code: 2231 Americas - 4666
  • 1,725 $0.0061
$0.0061 Buy Now
Bristol Electronics   Min Qty: 178 35000
  • 178 $0.0281
  • 535 $0.0187
  • 1,873 $0.0047
  • 15,959 $0.0028
$0.0028 / $0.0281 Buy Now
Bristol Electronics   24268
RFQ
Bristol Electronics   12485
RFQ
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125W, 1%, 100PPM, 1210OHM, SURFACE MOUNT, 0805 28000
  • 1 $0.0375
  • 801 $0.0125
  • 4,001 $0.0038
$0.0038 / $0.0375 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125W, 1%, 100PPM, 1210OHM, SURFACE MOUNT, 0805 9988
  • 1 $0.1500
  • 1,001 $0.0300
  • 6,668 $0.0200
$0.0200 / $0.1500 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125W, 1%, 100PPM, 1210OHM, SURFACE MOUNT, 0805 5350
  • 1 $0.1050
  • 287 $0.0350
  • 1,430 $0.0210
$0.0210 / $0.1050 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125W, 1%, 100PPM, 1210OHM, SURFACE MOUNT, 0805 3600
  • 1 $0.0450
  • 668 $0.0150
  • 3,334 $0.0090
$0.0090 / $0.0450 Buy Now
DISTI # RK73H2ATTD1211F
TTI Thick Film Resistors - SMD 1/4W 1.21K OHM 1% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 490000
In Stock
  • 5,000 $0.0035
  • 20,000 $0.0034
$0.0034 / $0.0035 Buy Now
DISTI # SMC-RK73H2ATTD1211F
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 404
RFQ

Part Details for RK73H2ATTD1211F

RK73H2ATTD1211F CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

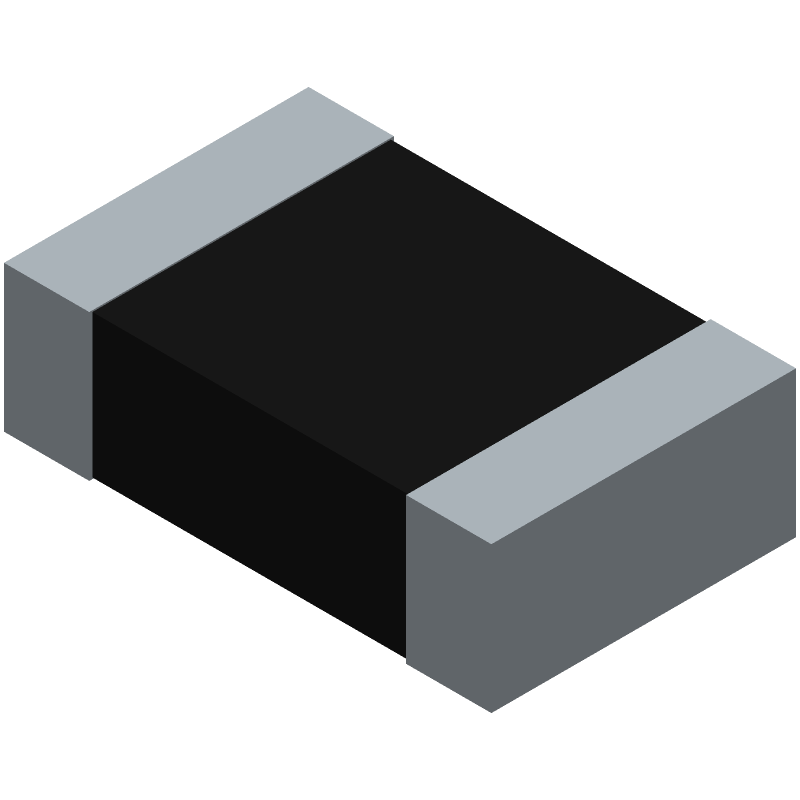

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RK73H2ATTD1211F Part Data Attributes

Parametric Data
RK73H2ATTD1211F KOA Speer Electronics Inc
Buy Now Datasheet
Compare Parts:
RK73H2ATTD1211F KOA Speer Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1210ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KOA SPEER ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer KOA Speer
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Punched Paper, 7 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 1210 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

RK73H2ATTD1211F Related Parts

RK73H2ATTD1211F Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less.

  • Yes, the RK73H2ATTD1211F is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.

  • The power rating of the RK73H2ATTD1211F at 70°C is 0.125W.

  • Yes, the RK73H2ATTD1211F is AEC-Q200 qualified, making it suitable for automotive applications.

  • The MSL of the RK73H2ATTD1211F is 1, indicating that it can withstand exposure to moisture for up to 30 days without being damaged.
