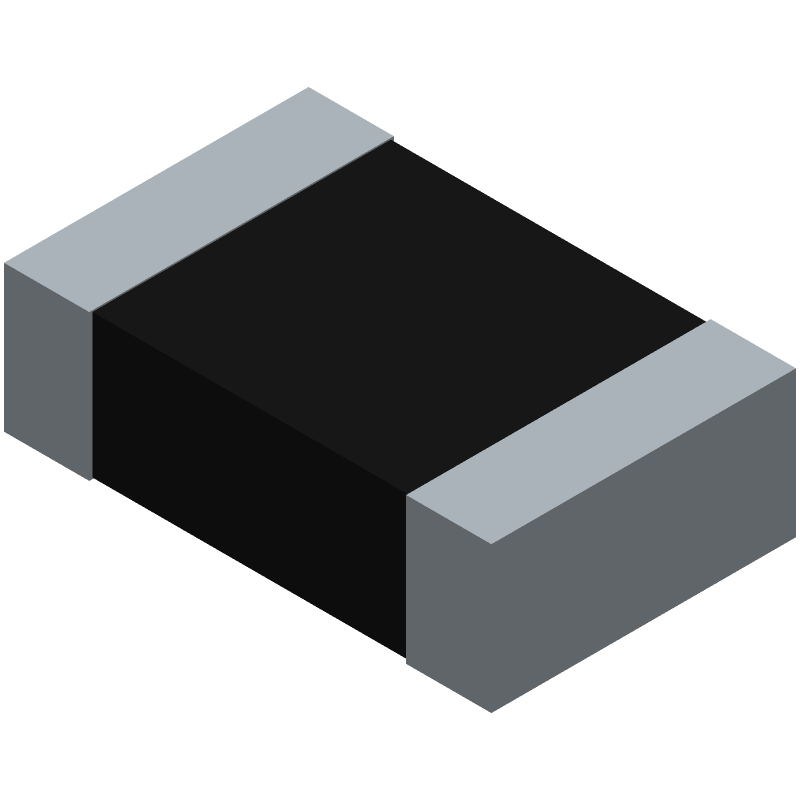

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RK73H2ALTD1003F by KOA Speer Electronics Inc
Results Overview of RK73H2ALTD1003F by KOA Speer Electronics Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RK73H2ALTD1003F Information
RK73H2ALTD1003F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RK73H2ALTD1003F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
660-RK73H2ALTD1003F
|
Mouser Electronics | Thick Film Resistors - SMD 1/4W 100K OHM 1% | 8737 |
|
$0.0160 / $0.1500 | Buy Now |
|
|
Bristol Electronics | 62241 |
|
RFQ | ||
|
|
Bristol Electronics | 40357 |
|
RFQ | ||
|
|
Bristol Electronics | 5443 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 89 | 4830 |
|
$0.0094 / $0.0563 | Buy Now |
|
|
Quest Components | RES,THICK FILM,100KOHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE | 49792 |
|
$0.0142 / $0.1215 | Buy Now |
|
|
Quest Components | RES,THICK FILM,100KOHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE | 6979 |
|
$0.0150 / $0.0750 | Buy Now |
|
|
Quest Components | RES,THICK FILM,100KOHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE | 4000 |
|
$0.0363 / $0.1210 | Buy Now |
|
|
Quest Components | RES,THICK FILM,100KOHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE | 3864 |
|
$0.0075 / $0.0750 | Buy Now |
|
|
Quest Components | RES,THICK FILM,100KOHMS,150WV,1+/-% TOL,-100,100PPM-TC,0805-CASE | 1050 |
|
$0.0303 / $0.0484 | Buy Now |
Part Details for RK73H2ALTD1003F
RK73H2ALTD1003F CAD Models
RK73H2ALTD1003F Part Data Attributes
|
|
RK73H2ALTD1003F
KOA Speer Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RK73H2ALTD1003F
KOA Speer Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KOA SPEER ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | KOA Speer | |
| Construction | Rectangular | |
| JESD-609 Code | e0 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 100000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
RK73H2ALTD1003F Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C for 10 seconds or less.
-
Yes, the RK73H2ALTD1003F is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.
-
The power rating of the RK73H2ALTD1003F at 70°C is 0.25W.
-
Yes, the RK73H2ALTD1003F is AEC-Q200 qualified, making it suitable for automotive applications.
-
The MSL of the RK73H2ALTD1003F is 1, indicating that it can withstand exposure to moisture without damage.
