Resistors / Metal Glaze/Thick Film Resistors / RK73H1ETTP9091F
Datasheets
RK73H1ETTP9091F by:

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 9090ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for RK73H1ETTP9091F by KOA Speer Electronics Inc

Results Overview of RK73H1ETTP9091F by KOA Speer Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RK73H1ETTP9091F Information

RK73H1ETTP9091F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RK73H1ETTP9091F

Part # Distributor Description Stock Price Buy
DISTI # 2019-RK73H1ETTP9091FCT-ND
DigiKey RES 9.09K OHM 1% 1/10W 0402 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 127349
In Stock
  • 1 $0.1000
  • 10 $0.0270
  • 100 $0.0129
  • 1,000 $0.0071
  • 2,500 $0.0059
  • 5,000 $0.0054
  • 10,000 $0.0033
  • 20,000 $0.0033
  • 30,000 $0.0032
  • 50,000 $0.0032
  • 70,000 $0.0032
  • 100,000 $0.0032
  • 250,000 $0.0031
  • 500,000 $0.0029
  • 1,000,000 $0.0029
$0.0029 / $0.1000 Buy Now
DISTI # 660-RK73H1ETTP9091F
Mouser Electronics Thick Film Resistors - SMD 0.1watts 9.09Kohms RoHS: Compliant 20284
  • 1 $0.1000
  • 10 $0.0180
  • 100 $0.0130
  • 500 $0.0100
  • 1,000 $0.0070
  • 2,500 $0.0060
  • 10,000 $0.0030
$0.0030 / $0.1000 Buy Now
DISTI # E02:0323_10524116
Arrow Electronics Res Thick Film 0402 9.09K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 40000 Package Multiple: 10000 Lead time: 8 Weeks Europe - 40000
  • 30,000 $0.0028
  • 250,000 $0.0027
  • 1,000,000 $0.0026
$0.0026 / $0.0028 Buy Now
DISTI # V72:2272_06788470
Arrow Electronics Res Thick Film 0402 9.09K Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1794 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1836 Container: Cut Strips Americas - 1794
  • 1,794 $0.0055
$0.0055 Buy Now
Bristol Electronics   45160
RFQ
Bristol Electronics   35446
RFQ
Bristol Electronics   Min Qty: 296 5420
  • 296 $0.0169
  • 889 $0.0113
  • 3,099 $0.0028
$0.0028 / $0.0169 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 9090OHM, 75V, 1% +/-TOL, 100PPM/CEL, SURFACE MOUNT, 0402 28356
  • 1 $0.1500
  • 6,668 $0.0200
  • 25,001 $0.0175
$0.0175 / $0.1500 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 9090OHM, 75V, 1% +/-TOL, 100PPM/CEL, SURFACE MOUNT, 0402 7790
  • 1 $0.0180
  • 279 $0.0120
  • 1,668 $0.0060
$0.0060 / $0.0180 Buy Now
Quest Components FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 9090OHM, 75V, 1% +/-TOL, 100PPM/CEL, SURFACE MOUNT, 0402 4336
  • 1 $0.0225
  • 223 $0.0150
  • 1,334 $0.0075
$0.0075 / $0.0225 Buy Now
DISTI # RK73H1ETTP9091F
TTI Thick Film Resistors - SMD 0.1watts 9.09Kohms pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel Americas - 90000
In Stock
  • 10,000 $0.0030
  • 20,000 $0.0029
  • 30,000 $0.0029
  • 40,000 $0.0028
  • 50,000 $0.0027
$0.0027 / $0.0030 Buy Now
NexGen Digital   9890
RFQ

Part Details for RK73H1ETTP9091F

RK73H1ETTP9091F CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

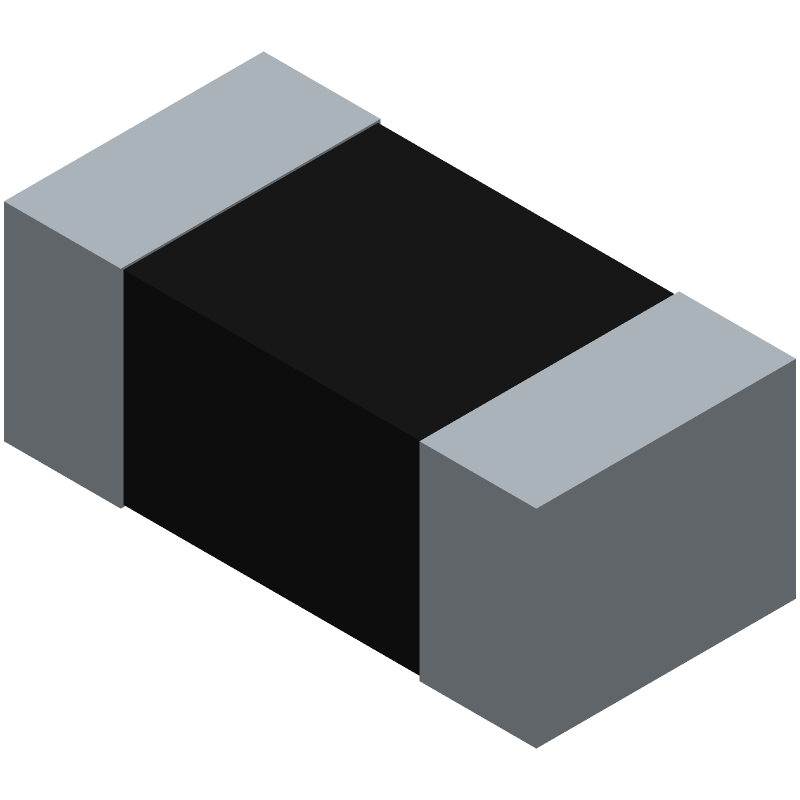

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RK73H1ETTP9091F Part Data Attributes

Parametric Data
RK73H1ETTP9091F KOA Speer Electronics Inc
Buy Now Datasheet
Compare Parts:
RK73H1ETTP9091F KOA Speer Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.1W, 9090ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KOA SPEER ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer KOA Speer
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.35 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, Punched Paper, 7 Inch
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 9090 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 75 V

RK73H1ETTP9091F Related Parts

RK73H1ETTP9091F Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the resistor.

  • Yes, the RK73H1ETTP9091F is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the atmosphere.

  • Yes, the RK73H1ETTP9091F is suitable for high-frequency applications up to 1 GHz, due to its low inductance and capacitance values.

  • The MSL of the RK73H1ETTP9091F is 1, which means it can withstand exposure to moisture without damage, but it's still recommended to follow proper storage and handling procedures.

  • Yes, the RK73H1ETTP9091F is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
