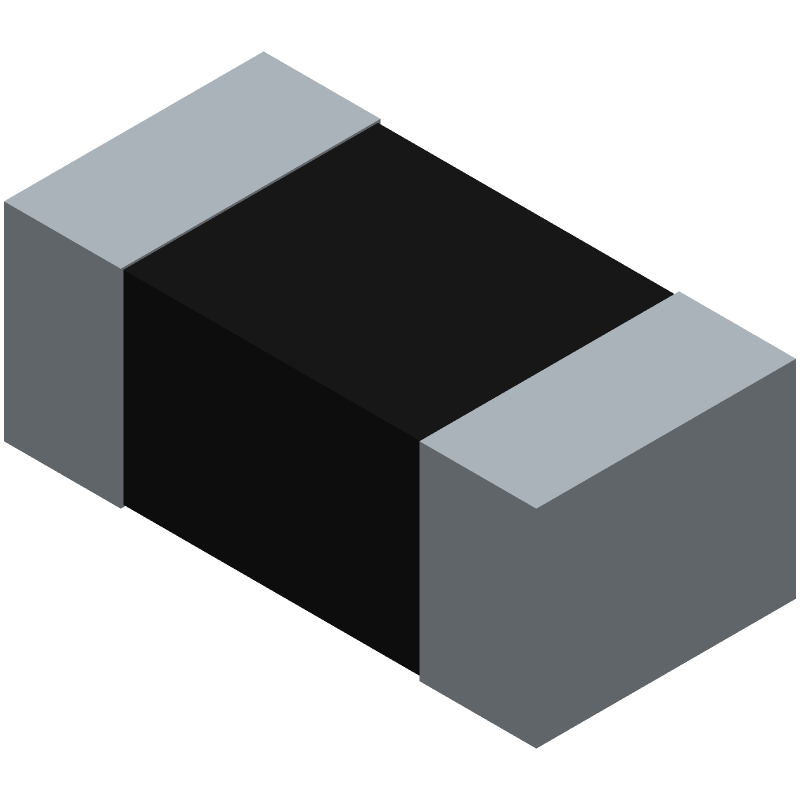

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RK73H1ELTP49R9F by KOA Speer Electronics Inc
Results Overview of RK73H1ELTP49R9F by KOA Speer Electronics Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RK73H1ELTP49R9F Information
RK73H1ELTP49R9F by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RK73H1ELTP49R9F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
V72:2272_06785569
|
Arrow Electronics | Res Thick Film 0402 49.9 Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2226 Container: Cut Strips | Americas - 532 |
|
$0.0135 | Buy Now |
|
DISTI #
63983215
|
Verical | Res Thick Film 0402 49.9 Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 RoHS: Not Compliant Min Qty: 468 Package Multiple: 1 Date Code: 2226 | Americas - 532 |
|
$0.0135 | Buy Now |
|
|
Bristol Electronics | 33213 |
|
RFQ | ||
|
|
Bristol Electronics | 31503 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 89 | 9855 |
|
$0.0056 / $0.0563 | Buy Now |
|
|
Bristol Electronics | 9714 |
|
RFQ | ||
|
|
Quest Components | RES,RUTHENIUM OXIDE,49.9OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0402-CASE | 26570 |
|
$0.7500 / $2.5000 | Buy Now |
|
|
Quest Components | RES,RUTHENIUM OXIDE,49.9OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0402-CASE | 7884 |
|
$0.0075 / $0.0750 | Buy Now |
|
|
Quest Components | RES,RUTHENIUM OXIDE,49.9OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0402-CASE | 6891 |
|
$0.0700 / $0.3500 | Buy Now |
|
|
Quest Components | RES,RUTHENIUM OXIDE,49.9OHMS,50WV,1+/-% TOL,-100,100PPM-TC,0402-CASE | 400 |
|
$0.0300 / $0.0450 | Buy Now |
Part Details for RK73H1ELTP49R9F
RK73H1ELTP49R9F CAD Models
RK73H1ELTP49R9F Part Data Attributes
|
|
RK73H1ELTP49R9F
KOA Speer Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RK73H1ELTP49R9F
KOA Speer Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 49.9ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KOA SPEER ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | KOA Speer | |
| Construction | Rectangular | |
| JESD-609 Code | e0 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.35 mm | |
| Package Length | 1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 49.9 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | TIN LEAD OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
RK73H1ELTP49R9F Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the resistor.
-
Yes, the RK73H1ELTP49R9F is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the air.
-
Yes, the RK73H1ELTP49R9F is suitable for high-frequency applications up to 1 GHz, due to its low inductance and capacitance.
-
The MSL of the RK73H1ELTP49R9F is 1, which means it can withstand exposure to moisture without damage.
-
Yes, the RK73H1ELTP49R9F is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
