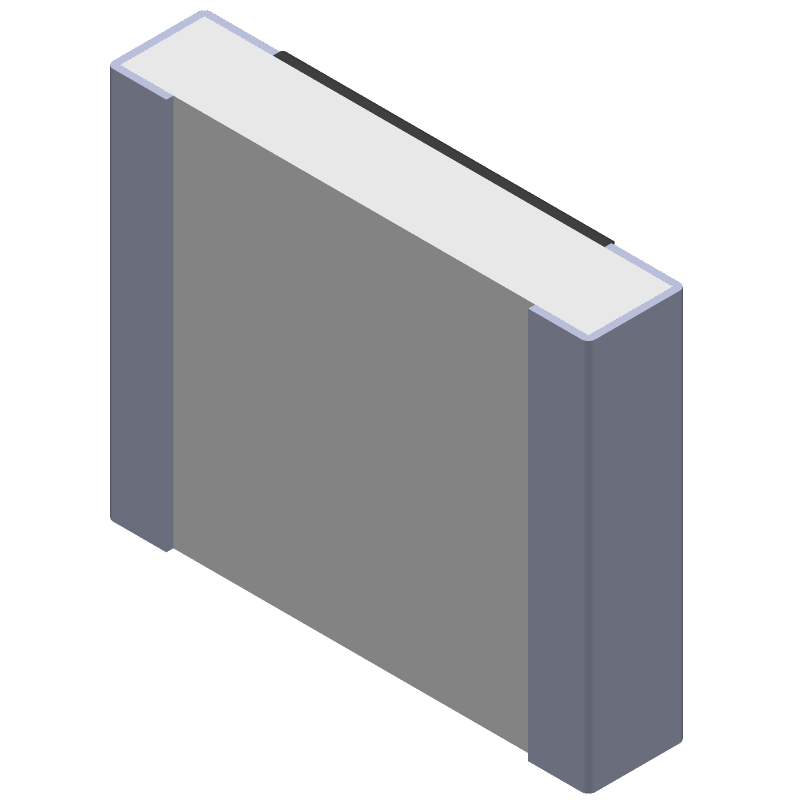

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RK73B2ETTD220J by KOA Speer Electronics Inc
Results Overview of RK73B2ETTD220J by KOA Speer Electronics Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
RK73B2ETTD220J Information
RK73B2ETTD220J by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RK73B2ETTD220J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2019-RK73B2ETTD220JCT-ND
|
DigiKey | RES 22 OHM 5% 1/2W 1210 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6630 In Stock |
|
$0.0155 / $0.1500 | Buy Now |
|
DISTI #
660-RK73B2ETTD220J
|
Mouser Electronics | Thick Film Resistors - SMD 1/2watts 22ohms 5% RoHS: Compliant | 8873 |
|
$0.0160 / $0.1600 | Buy Now |
|
|
Bristol Electronics | 4879 |
|
RFQ | ||
|
|
Quest Components | FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.5W, 22OHM, 200V, 5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 1210 | 21571 |
|
$0.0855 / $0.5700 | Buy Now |
|
|
Quest Components | FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.5W, 22OHM, 200V, 5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 1210 | 3903 |
|
$0.0450 / $0.1500 | Buy Now |
|
DISTI #
RK73B2ETTD220J
|
TTI | Thick Film Resistors - SMD 1/2watts 22ohms 5% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 10000 In Stock |
|
$0.0152 / $0.0188 | Buy Now |
Part Details for RK73B2ETTD220J
RK73B2ETTD220J CAD Models
RK73B2ETTD220J Part Data Attributes
|
|
RK73B2ETTD220J
KOA Speer Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RK73B2ETTD220J
KOA Speer Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 22ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KOA SPEER ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | KOA Speer | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 2.6 mm | |
| Packing Method | TR, Punched Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200, IEC60115-8 | |
| Resistance | 22 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 200 V |
RK73B2ETTD220J Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the RK73B2ETTD220J is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the RK73B2ETTD220J is resistant to sulfurization due to its anti-sulfurization coating.
-
The power rating of the RK73B2ETTD220J at 70°C is 0.25W.
-
Yes, the RK73B2ETTD220J is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
Yes, the RK73B2ETTD220J is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
