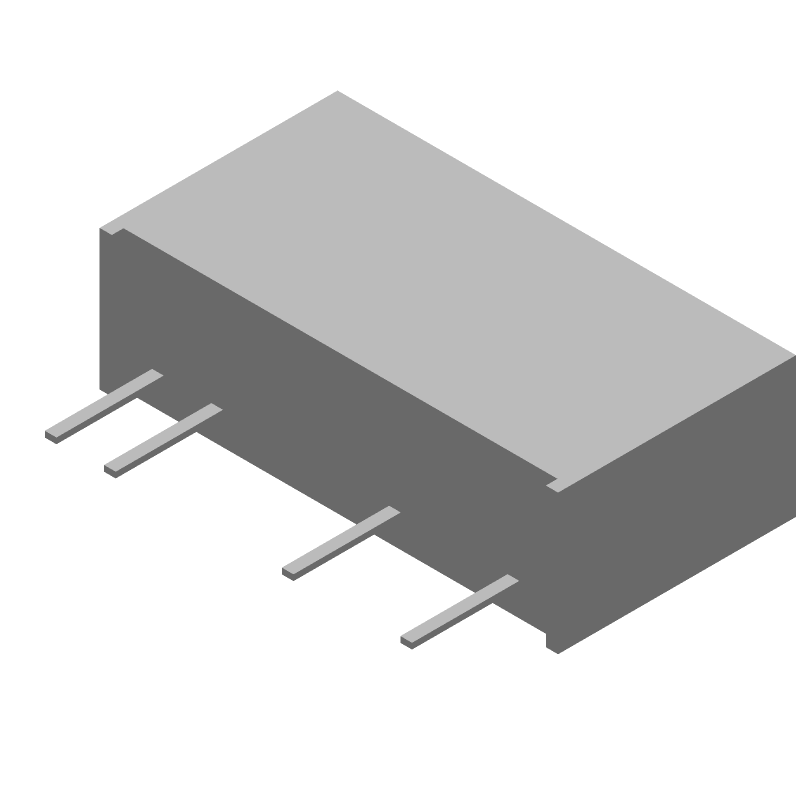

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RK-2409S/P by RECOM Power GmbH
Results Overview of RK-2409S/P by RECOM Power GmbH
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RK-2409S/P Information
RK-2409S/P by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RK-2409S/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63X8977
|
Newark | 1W Dc/Dc-Converter Econoline Sip7 3Kv Unreg Rohs Compliant: Yes |Recom Power RK-2409S/P RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$9.2200 / $12.7800 | Buy Now |
|
DISTI #
RK-2409S/P-ND
|
DigiKey | DC DC CONVERTER 9V 1W Min Qty: 25 Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
$8.7616 | Buy Now |
|
DISTI #
10011680
|
RECOM Power | 1W DC/DC-Converter 'ECONOLINE' SIP7 3kV unreg RoHS: Compliant | 0 |
|
$8.7600 | RFQ |
|
DISTI #
72151576
|
RS | DC-DC Converter, SIP7 3kV, Single, 1W, 09V @ 111mA, RK Series Min Qty: 25 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 0 |
|
$9.4700 / $10.1900 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$6.8200 / $8.4200 | Buy Now |
|
DISTI #
000000000006062017
|
Sager | Isolated DC/DC Converters - Through Hole 1W DC/DC 3kV UNREG 24Vin 9Vout Min Qty: 1 | 0 |
|
$7.6900 / $8.9800 | Buy Now |
Part Details for RK-2409S/P
RK-2409S/P CAD Models
RK-2409S/P Part Data Attributes
|
|
RK-2409S/P
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RK-2409S/P
RECOM Power GmbH
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SIP-7/4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | MODULE | |
| Package Description | SIP-7/4 | |
| Pin Count | 7/4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 26.4 V | |
| Input Voltage-Min | 21.6 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PSIP-T7 | |
| Length | 19.6 mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.111 A | |
| Output Voltage-Max | 9.45 V | |
| Output Voltage-Min | 8.55 V | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SIP | |
| Package Equivalence Code | SIP4/7,.18 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 10.45 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 6 mm |
