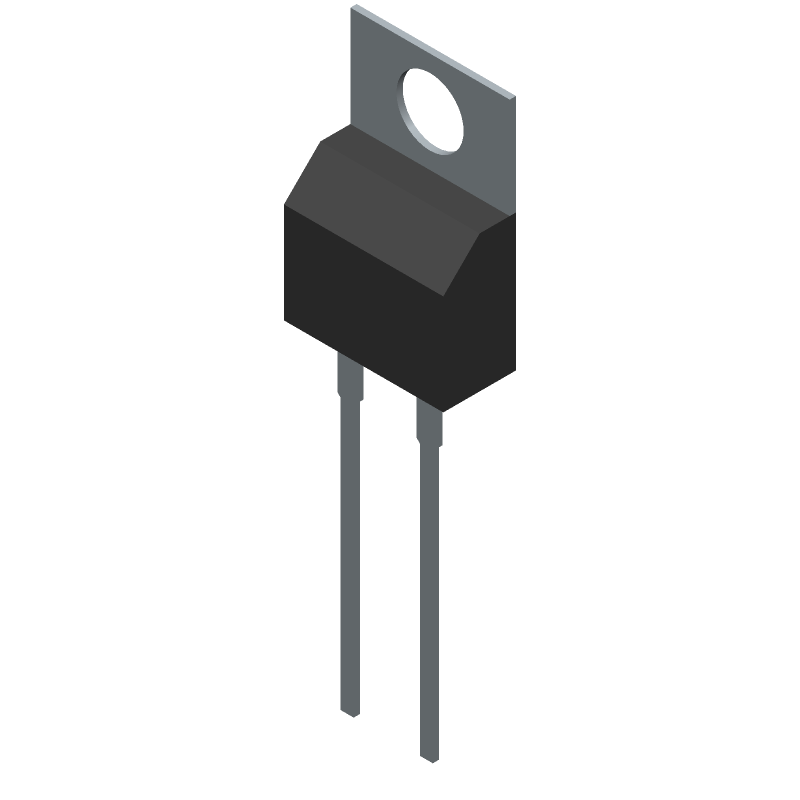

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RHRP8120 by onsemi
Results Overview of RHRP8120 by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RHRP8120 Information
RHRP8120 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RHRP8120
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
59M1690
|
Newark | Fast/Ultrafast Power Diode, Single, 1.2 Kv, 8 A, 3.2 V, 70 Ns, 100 A Rohs Compliant: Yes |Onsemi RHRP8120 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
58K9522
|
Newark | Hyperfast Diode, 8A, 1.2Kv To-220Ac, Repetitive Peak Reverse Voltage:1.2Kv, Average Forward Current:8A, Diode Configuration:Single, Forward Voltage Max:3.2V, Reverse Recovery Time:55Ns, Forward Surge Current:100A, No. Of Pins:2 Pin Rohs Compliant: Yes |Onsemi RHRP8120 RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Bristol Electronics | 850 |
|
RFQ | ||
|
|
Ameya Holding Limited | Diode: rectifying, THT, 1.2kV, 8A, tube, Ifsm: 100A, TO220-2, 75W | 20 |
|
Buy Now RFQ | |
|
|
ComSIT USA | AVAILABLE EU | 101 |
|
RFQ | |
|
DISTI #
SMC-RHRP8120
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 268 |
|
RFQ | |
|
DISTI #
RHRP8120
|
Avnet Silica | Diode Switching 12KV 8A 2Pin2Tab TO220AC Rail (Alt: RHRP8120) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
RHRP8120
|
EBV Elektronik | Diode Switching 12KV 8A 2Pin2Tab TO220AC Rail (Alt: RHRP8120) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 500 |
|
Buy Now |
Part Details for RHRP8120
RHRP8120 CAD Models
RHRP8120 Part Data Attributes
|
|
RHRP8120
onsemi
Buy Now
Datasheet
|
Compare Parts:
RHRP8120
onsemi
8A, 1200V, Hyperfast Diode, TO-220-2, 800-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220-2 | |
| Manufacturer Package Code | 340BA | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | HYPERFAST SOFT RECOVERY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 3.2 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 100 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Dissipation-Max | 75 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Reverse Current-Max | 100 µA | |
| Reverse Recovery Time-Max | 0.07 µs | |
| Reverse Test Voltage | 1200 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for RHRP8120
This table gives cross-reference parts and alternative options found for RHRP8120. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RHRP8120, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RHRP8120_NL | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, Avalanche, 1 Phase, 1 Element, 8A, 1200V V(RRM), Silicon, TO-220AC, | RHRP8120 vs RHRP8120_NL |
| RHRP8120-F102 | onsemi | Check for Price | 8A, 1200V, Hyperfast Diode, TO-220 2L, 800-TUBE | RHRP8120 vs RHRP8120-F102 |
| ISL9R8120P2_NL | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 8A, 1200V V(RRM), Silicon, TO-220AC, ROHS COMPLIANT, TO-220AC, 2 PIN | RHRP8120 vs ISL9R8120P2_NL |
| ISL9R8120P2 | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 8A, 1200V V(RRM), Silicon, TO-220AC, ROHS COMPLIANT, TO-220AC, 2 PIN | RHRP8120 vs ISL9R8120P2 |
RHRP8120 Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
-
The SOA is typically defined by the device's voltage, current, and power ratings. For the RHRP8120, the SOA is limited by the maximum voltage (Vds) of 100V, maximum current (Id) of 12A, and maximum power dissipation (Pd) of 100W.
-
Handle the device with an ESD wrist strap or mat, and ensure that the PCB has ESD protection components, such as TVS diodes or ESD protection arrays, to prevent damage from static electricity.
-
A gate drive voltage of 10-15V and a current of 1-2A is recommended for optimal switching performance. However, the specific requirements may vary depending on the application and PCB layout.
