Resistors / Thick Film Resistors / RHC2512FT27R4
Datasheets

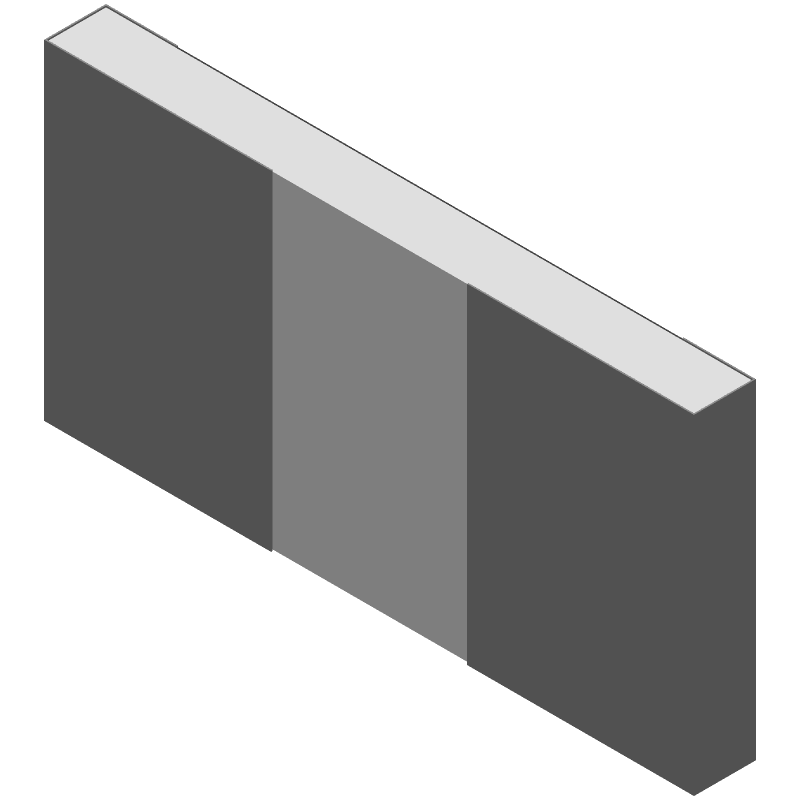

RHC2512FT27R4 by: SEI Stackpole Electronics Inc

Fixed Resistor, Thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP

Part Details for RHC2512FT27R4 by SEI Stackpole Electronics Inc

Results Overview of RHC2512FT27R4 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RHC2512FT27R4 Information

RHC2512FT27R4 by SEI Stackpole Electronics Inc is a Thick Film Resistor.
Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RHC2512FT27R4

Part # Distributor Description Stock Price Buy
DISTI # RHC2512FT27R4-ND
DigiKey RES 27.4 OHM 1% 2W 2512 Min Qty: 4000 Lead time: 17 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 4,000 $0.2746
$0.2746 Buy Now
DISTI # RHC2512FT27R4
Avnet Americas Res Thick Film 2512 27.4 Ohm 1% 2W ?100ppm/?C Molded SMD SMD Embossed T/R - Tape and Reel (Alt: RHC2512FT27R4) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.2816
  • 8,000 $0.2816
  • 16,000 $0.2816
  • 24,000 $0.2816
  • 32,000 $0.2816
$0.2816 Buy Now
DISTI # 708-RHC2512FT27R4
Mouser Electronics Thick Film Resistors - SMD RES, 2512, 27.4 ohm, 1%, 2W RoHS: Compliant 0
  • 4,000 $0.2740
$0.2740 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 4,000 $0.3140
  • 8,000 $0.2930
  • 16,000 $0.2750
  • 32,000 $0.2680
$0.2680 / $0.3140 Buy Now
NAC RESISTOR, 2512, 27.4 ohm, 1%, 2W - Thick Film - High Power Low Heat Rise RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 0
  • 4,000 $0.7330
  • 20,000 $0.6290
  • 100,000 $0.5500
$0.5500 / $0.7330 Buy Now

Part Details for RHC2512FT27R4

RHC2512FT27R4 Part Data Attributes

Parametric Data
RHC2512FT27R4 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RHC2512FT27R4 SEI Stackpole Electronics Inc Fixed Resistor, Thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.6 mm
Package Length 6.3 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 3.2 mm
Packing Method TR, Plastic, 7 Inch
Rated Power Dissipation (P) 2 W
Rated Temperature 70 °C
Resistance 27.4 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 200 V

Alternate Parts for RHC2512FT27R4

This table gives cross-reference parts and alternative options found for RHC2512FT27R4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RHC2512FT27R4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RMH25FE27R4 TA-I Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs RMH25FE27R4
RK73HW3A2RTTE27R4F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs RK73HW3A2RTTE27R4F
RK73HW3A2RTTED27R4F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs RK73HW3A2RTTED27R4F
CR2512-2W-27R4FSNT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 2512, RHC2512FT27R4 vs CR2512-2W-27R4FSNT-13
CR2512F27R4E042W Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 2512, RHC2512FT27R4 vs CR2512F27R4E042W
TSR1SF27R4V Tateyama Kagaku Group Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs TSR1SF27R4V
CR2512-2W-27R4FT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 2512, RHC2512FT27R4 vs CR2512-2W-27R4FT-13
CR2512-2W-27R4FPT VENKEL LTD Check for Price Fixed Resistor, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs CR2512-2W-27R4FPT
TSR1STF27R4V Tateyama Kagaku Group Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs TSR1STF27R4V
CR2512-2W-27R4FT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 2W, 27.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP RHC2512FT27R4 vs CR2512-2W-27R4FT

RHC2512FT27R4 Related Parts

RHC2512FT27R4 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RHC2512FT27R4 can be found in the Stackpole Electronics Inc. application note AN-120, which provides guidelines for PCB layout and land pattern design.

  • RHC2512FT27R4 has a high power rating, and proper thermal management is crucial. Engineers should ensure good airflow, use thermal vias, and consider using a heat sink or thermal pad to keep the component temperature within the recommended operating range.

  • The tolerance for the resistance value of RHC2512FT27R4 is ±1% or ±5% depending on the specific part number and ordering code. Engineers should check the specific datasheet or consult with Stackpole Electronics Inc. for more information.

  • RHC2512FT27R4 is a general-purpose resistor and may not be suitable for high-frequency applications. Engineers should consider using a high-frequency resistor or a specialized component designed for high-frequency applications.

  • To ensure the reliability and longevity of RHC2512FT27R4, engineers should follow proper handling and storage procedures, avoid exceeding the recommended operating conditions, and consider using a conformal coating or potting compound to protect the component from environmental factors.
