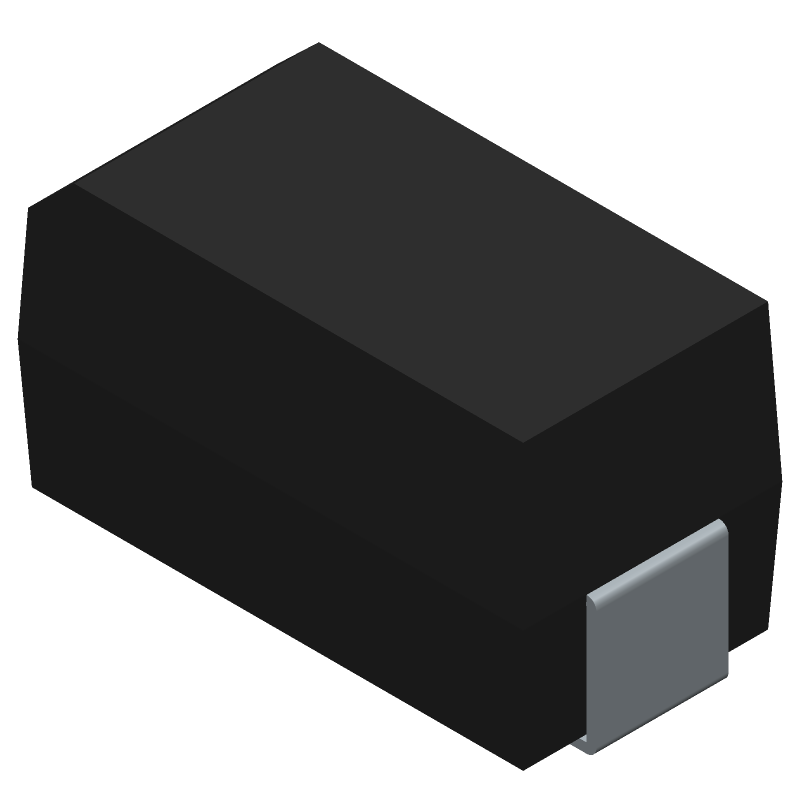

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RGF1A-E3/67A by Vishay Intertechnologies
Results Overview of RGF1A-E3/67A by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
RGF1A-E3/67A Information
RGF1A-E3/67A by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RGF1A-E3/67A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
77K0264
|
Newark | 1A,50V,150Ns, fs. Superect, smd |Vishay RGF1A-E3/67A RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1770 / $0.2250 | Buy Now |
|
DISTI #
RGF1A-E3/67A
|
Avnet Americas | 1A,50V,150NS,FS. SUPERECT,SMD - Tape and Reel (Alt: RGF1A-E3/67A) RoHS: Compliant Min Qty: 6000 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1412 / $0.1500 | Buy Now |
|
DISTI #
625-RGF1A-E3
|
Mouser Electronics | Small Signal Switching Diodes 1 Amp 50 Volt 150ns 30 Amp IFSM RoHS: Compliant | 8769 |
|
$0.1500 / $0.6100 | Buy Now |
|
DISTI #
RGF1A-E3/67A
|
TTI | Small Signal Switching Diodes 1 Amp 50 Volt 150ns 30 Amp IFSM RoHS: Compliant pbFree: Pb-Free Min Qty: 6000 Package Multiple: 1500 Container: Reel | Americas - 0 |
|
$0.1330 / $0.1440 | Buy Now |
|
DISTI #
RGF1A-E3/67A
|
TTI | Small Signal Switching Diodes 1 Amp 50 Volt 150ns 30 Amp IFSM RoHS: Compliant pbFree: Pb-Free Min Qty: 6000 Package Multiple: 1500 Container: Reel | Americas - 0 |
|
$0.1330 / $0.1440 | Buy Now |
|
DISTI #
RGF1A-E3/67A
|
EBV Elektronik | 1A50V150NSFS SUPERECTSMD (Alt: RGF1A-E3/67A) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for RGF1A-E3/67A
RGF1A-E3/67A CAD Models
RGF1A-E3/67A Part Data Attributes
|
|
RGF1A-E3/67A
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
RGF1A-E3/67A
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 1A, 50V V(RRM), Silicon, DO-214BA,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY, LOW LEAKAGE CURRENT | |
| Application | EFFICIENCY | |
| Breakdown Voltage-Min | 50 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.3 V | |
| JEDEC-95 Code | DO-214BA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 50 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.15 µs | |
| Reverse Test Voltage | 50 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
RGF1A-E3/67A Frequently Asked Questions (FAQ)
-
Vishay provides a recommended PCB layout and land pattern in their application note AN10364, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and to prevent thermal runaway.
-
The choice of TIM depends on the specific application and operating conditions. Vishay recommends using a TIM with a thermal conductivity of at least 1 W/m-K and a thickness of 0.05 mm to 0.1 mm. Some popular TIM options include thermal grease, thermal tape, or graphite sheets.
-
The maximum allowed Tj for the RGF1A-E3/67A is 150°C. However, it's recommended to keep the Tj below 125°C for optimal performance and reliability.
-
Yes, the RGF1A-E3/67A is designed to withstand vibrations up to 10 G. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibrations.
-
Handle the device by the body, avoiding touching the leads or the thermal pad. Store the devices in their original packaging or in a dry, ESD-protected environment. Avoid bending or flexing the leads, and ensure that the devices are not exposed to moisture or extreme temperatures.
