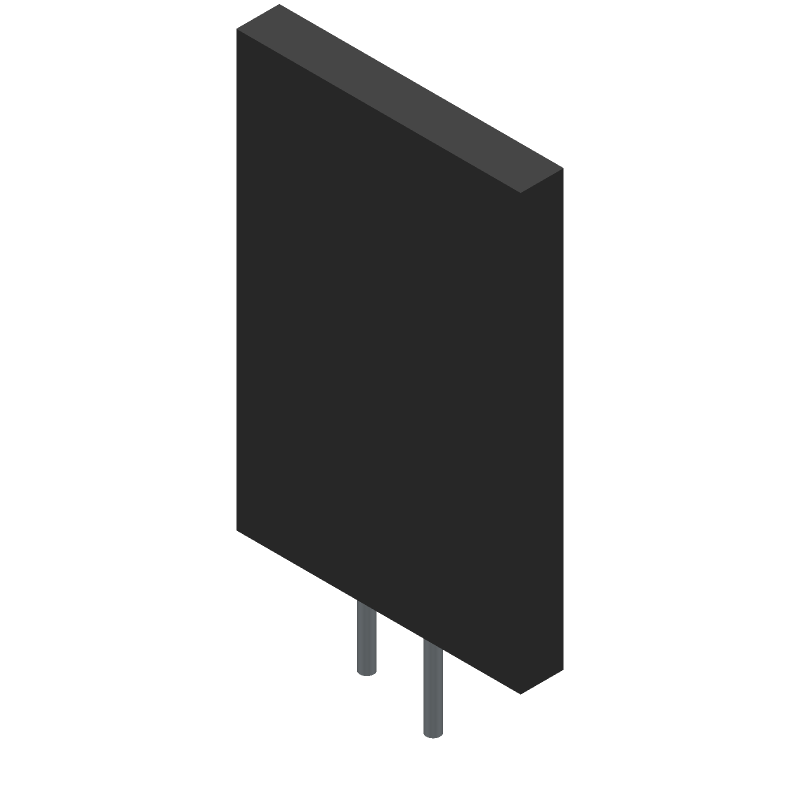

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RGEF1000 by Littelfuse Inc
Results Overview of RGEF1000 by Littelfuse Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RGEF1000 Information
RGEF1000 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RGEF1000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42M2499
|
Newark | Polyswitch, Radial, 10A, Thermistor Mounting:Through Hole, Product Range:Polyswitch Rgef Series, Holding Current:10A, Tripping Current:17A, Voltage Rating:16Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Littelfuse RGEF1000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1029 |
|
$0.4800 / $1.0300 | Buy Now |
|
DISTI #
RGEF1000-ND
|
DigiKey | PTC RESET FUSE 16V 10A RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Bag, Bag |
1497 In Stock |
|
$0.4101 / $1.0500 | Buy Now |
|
DISTI #
650-RGEF1000
|
Mouser Electronics | Resettable Fuses - PPTC 16V 100A RADIAL PTC BULK RoHS: Compliant | 0 |
|
$0.4100 / $1.1700 | Order Now |
|
DISTI #
P40:2555_13143299
|
Arrow Electronics | PTC Resettable Fuse 10A(hold) 17A(trip) 16VDC 100A 3.6W 6s 0.004Ohm Radial 16.5 X 3 X 25.2mm T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 2228 | Europe - 96 |
|
$0.3900 | Buy Now |
|
DISTI #
63406455
|
Verical | PTC Resettable Fuse 10A(hold) 17A(trip) 16VDC 100A 3.6W 6s 0.004Ohm Radial 16.5 X 3 X 25.2mm T/R RoHS: Compliant Min Qty: 107 Package Multiple: 1 Date Code: 2201 | Americas - 226 |
|
$0.7675 | Buy Now |
|
DISTI #
RGEF1000
|
TTI | Resettable Fuses - PPTC 16V 100A RADIAL PTC BULK RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Bulk |
Americas - 400 In Stock |
|
$0.5470 / $0.6610 | Buy Now |
|
DISTI #
RGEF1000
|
IBS Electronics | PTC RESETTABLE FUSE 10A(HOLD) 17A(TRIP) 16V 3.6W 6S 0.004OHM RADIAL 16.5 X 3 X 25.2MM BULK Min Qty: 250 Package Multiple: 1 | 0 |
|
$0.5460 / $0.6175 | Buy Now |
Part Details for RGEF1000
RGEF1000 CAD Models
RGEF1000 Part Data Attributes
|
|
RGEF1000
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
RGEF1000
Littelfuse Inc
PTC Resettable Fuse, 0.0102ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | Rmax:0.007 OHMS AT 20 DEG CEL | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 25.2 mm | |
| Package Length | 16.5 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Reference Standard | CSA; TUV; UL | |
| Resistance | 0.004 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 16 V |
RGEF1000 Frequently Asked Questions (FAQ)
-
A good PCB layout for the RGEF1000 involves keeping the high-current paths short and wide, using multiple vias for heat dissipation, and separating the high-voltage and low-voltage sections to minimize noise and interference.
-
Proper cooling can be achieved by providing adequate airflow, using a heat sink with a thermal interface material, and ensuring the device is mounted on a thermally conductive surface. The recommended junction temperature is below 150°C.
-
To minimize EMI, use a common-mode choke, add a capacitor between the input and output, and ensure the PCB layout is designed to minimize loop areas and reduce radiation. Shielding and filtering components can also be added to reduce emissions.
-
Use a voltage regulator or a transient voltage suppressor (TVS) to protect against overvoltage. For overcurrent protection, add a fuse or a current-sensing resistor with a shutdown circuit. Also, ensure the device is operated within its specified ratings.
-
The RGEF1000 has a typical lifespan of 10-15 years, depending on operating conditions. Reliability is ensured by following the recommended operating conditions, using a proper PCB layout, and minimizing thermal stress.
