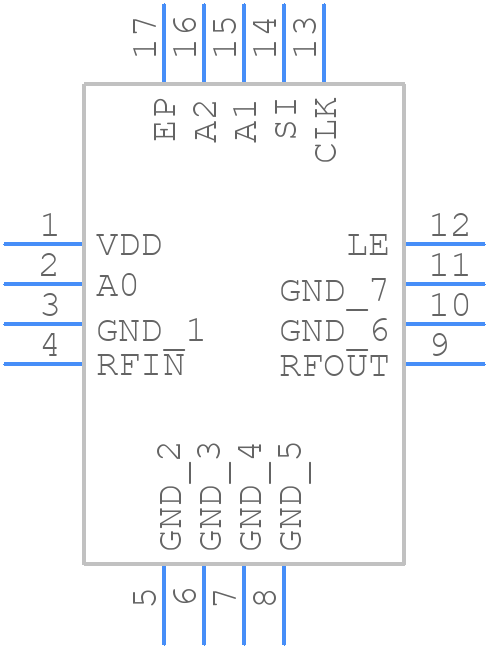

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RFSA3513TR7 by Qorvo
Results Overview of RFSA3513TR7 by Qorvo
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RFSA3513TR7 Information
RFSA3513TR7 by Qorvo is an RF/Microwave Attenuator.
RF/Microwave Attenuators are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for RFSA3513TR7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2312-RFSA3513TR7CT-ND
|
DigiKey | 50-6000MHZ 5-BIT, 31DB RANGE DSA Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1487 In Stock |
|
$2.2491 / $4.8900 | Buy Now |
|
DISTI #
RFSA3513TR7
|
Avnet Americas | - Tape and Reel (Alt: RFSA3513TR7) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$1.8240 / $1.8620 | Buy Now |
|
DISTI #
772-RFSA3513
|
Mouser Electronics | Attenuators .05-6GHz 5 BIT GCR 31dB Step 1dB RoHS: Compliant | 34186 |
|
$1.9000 / $4.8900 | Buy Now |
|
DISTI #
RFSA3513TR7
|
Avnet Silica | (Alt: RFSA3513TR7) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Win Source Electronics | 5-BIT Soi, Addressable Dsa, 3X3QFN | 26806 |
|
$2.2562 / $3.3843 | Buy Now |
Part Details for RFSA3513TR7
RFSA3513TR7 CAD Models
RFSA3513TR7 Part Data Attributes
|
|
RFSA3513TR7
Qorvo
Buy Now
Datasheet
|
Compare Parts:
RFSA3513TR7
Qorvo
Telecom Circuit,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | QORVO INC | |
| Package Description | QFN-16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Qorvo | |
| Attenuation-Nom | 31 dB | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 30 dBm | |
| Insertion Loss-Max | 1.4 dB | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 16 | |
| Operating Frequency-Max | 6000 MHz | |
| Operating Frequency-Min | 5 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Power Supplies | 3/5 V | |
| RF/Microwave Device Type | VARIABLE ATTENUATOR | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| VSWR-Max | 1.43 |
RFSA3513TR7 Frequently Asked Questions (FAQ)
-
A good PCB layout and grounding scheme is crucial for optimal performance. Qorvo recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane under the device. The device should be placed near the edge of the board to minimize the distance to the antenna.
-
Optimizing the matching network requires careful consideration of the device's output impedance, the antenna's input impedance, and the PCB's layout. Qorvo recommends using a pi-network or a T-network topology, and tuning the components using a network analyzer or simulation software.
-
The RFSA3513TR7 is rated for operation from -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
-
The RFSA3513TR7 requires a stable voltage supply and a proper biasing scheme. Qorvo recommends using a voltage regulator to maintain a stable voltage, and a bias resistor network to set the device's operating point.
-
The RFSA3513TR7 is a sensitive device and requires proper ESD protection. Qorvo recommends using a combination of TVS diodes and ESD protection devices, such as the Qorvo QPBG5224, to protect the device from electrostatic discharge.
