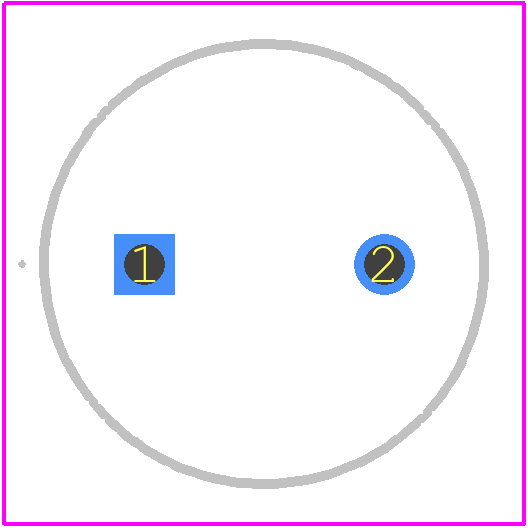

Footprint
-

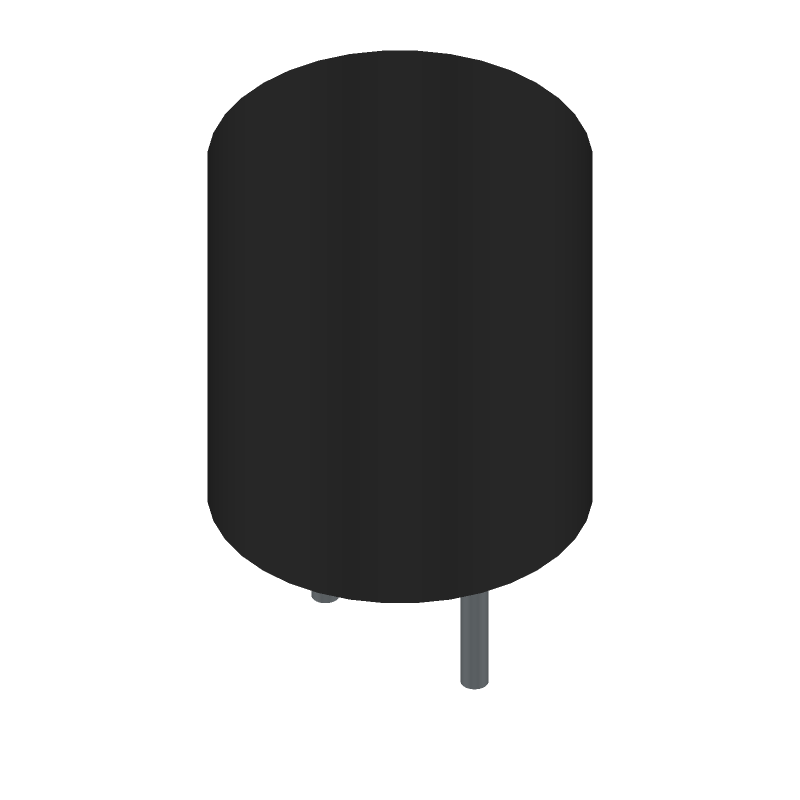

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RFC1010B-186KE by Coilcraft Inc
Results Overview of RFC1010B-186KE by Coilcraft Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Audio and Video Systems
Renewable Energy
Telecommunications
Entertainment and Gaming
RFC1010B-186KE Information
RFC1010B-186KE by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for RFC1010B-186KE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2457933
|
Farnell | INDUCTOR, 18MH, 0.21A, 10%, POWER RoHS: Compliant Min Qty: 1 Lead time: 8 Weeks, 1 Days Container: Each | 96 |
|
$0.9742 / $1.8848 | Buy Now |
|
DISTI #
994-RFC1010B-186KE
|
Mouser Electronics | Power Inductors - Leaded 18 mH UnShld 10% 150mA 25ohms RoHS: Compliant | 45 |
|
$0.6250 / $1.5700 | Buy Now |
|
|
Coilcraft Direct | Power inductor, 10% tol, RoHS, halogen-free RoHS: Compliant pbFree: No Min Qty: 1 | 168 |
|
$0.3200 / $1.3200 | Buy Now |
Part Details for RFC1010B-186KE
RFC1010B-186KE CAD Models
RFC1010B-186KE Part Data Attributes
|
|
RFC1010B-186KE
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
RFC1010B-186KE
Coilcraft Inc
General Purpose Inductor, 18000uH, 10%, Ferrite-Core
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Construction | Flame Retardant | |
| Core Material | Ferrite | |
| DC Resistance | 25 Ω | |
| Inductance-Nom (L) | 18000 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Lead Diameter | 0.8 mm | |
| Lead Length | 5 mm | |
| Lead Spacing | 6 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Diameter | 11 mm | |
| Package Length | 11.5 mm | |
| Package Style | Radial | |
| Packing Method | Tray | |
| Rated Current-Max | 0.15 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 0.33 MHz | |
| Shape/Size Description | CYLINDRICAL PACKAGE | |
| Shielded | NO | |
| Surface Mount | NO | |
| Terminal Finish | Tin/Silver - Matte Tin - with Nickel barrier | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 10% |
