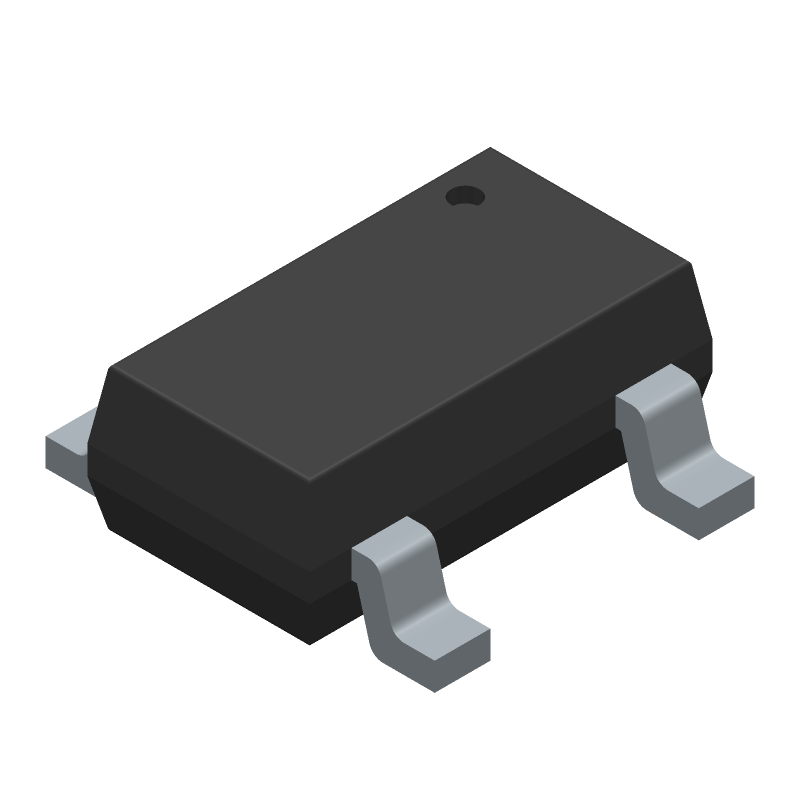

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for REF2033AIDDCR by Texas Instruments
Results Overview of REF2033AIDDCR by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
Energy and Power Systems
Renewable Energy
Automotive
REF2033AIDDCR Information
REF2033AIDDCR by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| REF2033AIDDCR | Texas Instruments | Low-Drift, Low-Power, Dual-Output Vref and Vref/2 Voltage Reference 5-SOT-23-THIN -40 to 125 |
Price & Stock for REF2033AIDDCR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46177-1-ND
|
DigiKey | IC VREF SERIES 0.05% SOT23-5 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
6000 In Stock |
|
$1.8257 / $3.4200 | Buy Now |
|
DISTI #
595-REF2033AIDDCR
|
Mouser Electronics | Voltage References Low-Drift Lw-Pwr Du al Output Volt Ref A 595-REF2033AIDDCT RoHS: Compliant | 3796 |
|
$1.8700 / $3.4200 | Buy Now |
|
|
NexGen Digital | 38 |
|
RFQ | ||
|
|
LCSC | 0.05% 3.32V5.5V 20mA Fixed SOT-23-5 Voltage Reference ROHS | 815 |
|
$1.8024 / $2.6682 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 5336 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF SERIES 1.65V/3.3V 5SOT | 15000 |
|
$1.2871 / $1.6623 | Buy Now |
Part Details for REF2033AIDDCR
REF2033AIDDCR CAD Models
REF2033AIDDCR Part Data Attributes
|
|
REF2033AIDDCR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
REF2033AIDDCR
Texas Instruments
3.3-V Vref, low-drift, low-power, dual-output Vref & Vref/2 voltage reference 5-SOT-23-THIN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOT-23, 5 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 3.32 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.30165 V | |
| Output Voltage-Min | 3.29835 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 0.46 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3.32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temp Coef of Voltage-Max | 8 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.05% | |
| Width | 1.6 mm |
