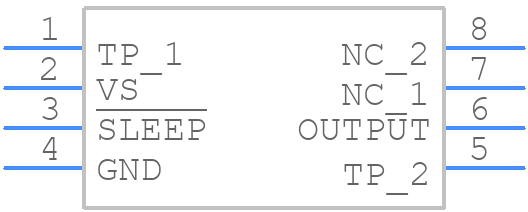

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for REF195ES by Analog Devices Inc
Results Overview of REF195ES by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
REF195ES Information
REF195ES by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for REF195ES
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | IC,VOLT REFERENCE,FIXED,5V,BICMOS,SOP,8PIN,PLASTIC | 26 |
|
$3.8588 / $7.7175 | Buy Now |
|
|
Rochester Electronics | Precision Micropower, Low Dropout Voltage Reference RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 11 |
|
$2.9100 / $3.6400 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 11 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF SERIES 0.04% 8SOIC | 5675 |
|
$5.7750 / $7.4594 | Buy Now |
Part Details for REF195ES
REF195ES CAD Models
REF195ES Part Data Attributes
|
|
REF195ES
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
REF195ES
Analog Devices Inc
1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDSO8, MS-012AA, SOIC-8
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 5.002 V | |
| Output Voltage-Min | 4.998 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.045 mA | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 5.1 V | |
| Supply Voltage-Nom (Vsup) | 5.1 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temp Coef of Voltage-Max | 5 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.04% | |
| Width | 3.9 mm |
Alternate Parts for REF195ES
This table gives cross-reference parts and alternative options found for REF195ES. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of REF195ES, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| REF195ESZ | Analog Devices Inc | $5.6594 | 5.0V Precision Micropower, Low Dropout, Low Voltage Reference | REF195ES vs REF195ESZ |
| REF195ESZ-REEL | Analog Devices Inc | $5.7355 | 5.0V Precision Micropower, Low Dropout, Low Voltage Reference | REF195ES vs REF195ESZ-REEL |
| REF195ES-REEL | Analog Devices Inc | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDSO8, MS-012AA, SOIC-8 | REF195ES vs REF195ES-REEL |
REF195ES Frequently Asked Questions (FAQ)
-
The REF195ES should be placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is supplying, and the input and output pins should be routed separately to minimize noise coupling. A ground plane or shield should be used to isolate the REF195ES from digital signals.
-
A 10uF to 22uF ceramic capacitor should be connected between the VOUT pin and GND, and a 100nF to 1uF ceramic capacitor should be connected between the VIN pin and GND. These capacitors help to filter out noise and ensure stable operation.
-
The recommended input voltage range for the REF195ES is 4.5V to 18V. The output voltage is regulated to 4.096V ± 1% when the input voltage is within this range. If the input voltage is outside this range, the output voltage may not be regulated accurately.
-
The REF195ES has a temperature coefficient of ±10ppm/°C, which means that the output voltage may vary by ±0.01% for every 1°C change in temperature. This can affect the accuracy of the voltage reference, especially in high-precision applications.
-
Yes, the REF195ES can be used in a system with multiple voltage references. To ensure compatibility, the output voltage of each reference should be matched to the input voltage range of the ADC or DAC, and the references should be isolated from each other to prevent noise coupling.
