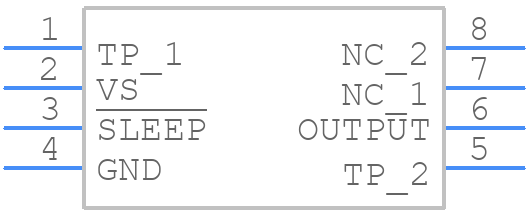

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for REF192ESZ-REEL7 by Analog Devices Inc
Results Overview of REF192ESZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
Energy and Power Systems
Renewable Energy
Automotive
REF192ESZ-REEL7 Information
REF192ESZ-REEL7 by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for REF192ESZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AK0880
|
Newark | Volt Ref, 2.5V, Nsoic-8, -40 To 85Deg C, Voltage Reference Type:Series - Fixed, Product Range:Ref192 Series, Reference Voltage Min:2.498V, Reference Voltage Max:2.502V, Initial Accuracy:0.08%, Temperature Coefficient:2Ppm/°C Rohs Compliant: Yes |Analog Devices REF192ESZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 315 |
|
$4.8100 | Buy Now |
|
DISTI #
REF192ESZ-REEL7CT-ND
|
DigiKey | IC VREF SERIES 0.08% 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
788 In Stock |
|
$5.0250 / $10.7100 | Buy Now |
|
DISTI #
584-REF192ESZ-R7
|
Mouser Electronics | Voltage References 06H4CPOWER VOLTAGE REF RoHS: Compliant | 1974 |
|
$5.2400 / $9.1900 | Buy Now |
|
|
Analog Devices Inc | 06H4CPOWER VOLTAGE REF Min Qty: 1 Package Multiple: 1000 | 108 |
|
$5.0250 / $10.7100 | Buy Now |
|
|
Quest Components | 20 |
|
$4.3584 / $6.5376 | Buy Now | |
|
DISTI #
REF192ESZ-REEL7
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 1000 | 0 |
|
$5.2500 | Buy Now |
|
|
LCSC | 2.5V 3V15V 30mA Fixed SOIC-8 Voltage Reference ROHS | 107 |
|
$9.4102 / $13.3905 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 1469 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF SERIES 2.5V 8SOIC | 2350 |
|
$10.0101 / $15.0150 | Buy Now |
Part Details for REF192ESZ-REEL7
REF192ESZ-REEL7 CAD Models
REF192ESZ-REEL7 Part Data Attributes
|
|
REF192ESZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
REF192ESZ-REEL7
Analog Devices Inc
2.5V Precision Micropower, Low Dropout, Low Voltage Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.502 V | |
| Output Voltage-Min | 2.498 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.045 mA | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temp Coef of Voltage-Max | 5 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.08% | |
| Width | 3.9 mm |
