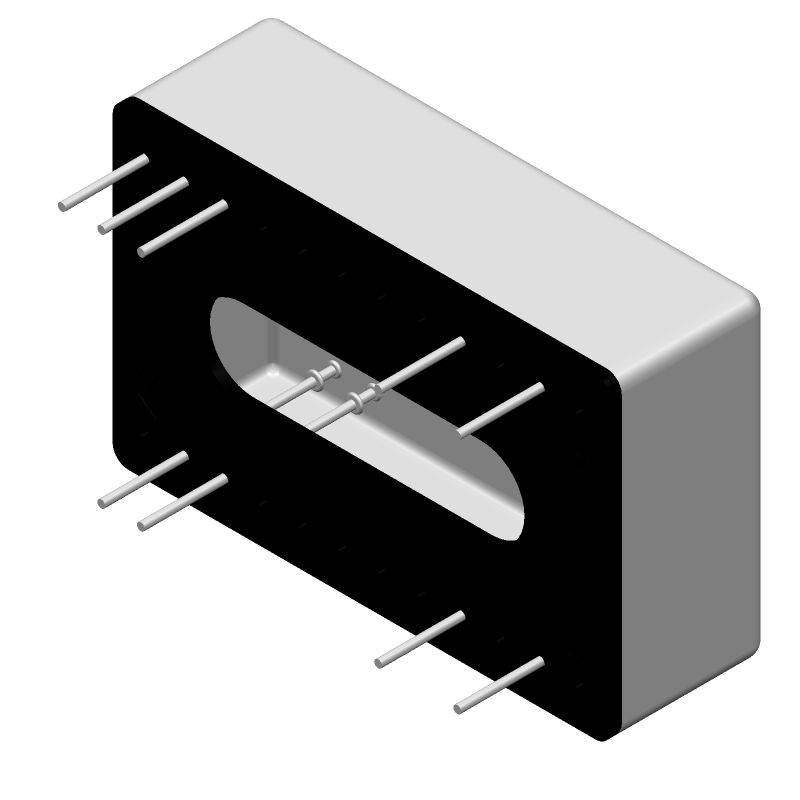

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for REC5-4809DRWZ/H4/A/M/CTRL by RECOM Power GmbH
Results Overview of REC5-4809DRWZ/H4/A/M/CTRL by RECOM Power GmbH
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
REC5-4809DRWZ/H4/A/M/CTRL Information
REC5-4809DRWZ/H4/A/M/CTRL by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for REC5-4809DRWZ/H4/A/M/CTRL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63X6732
|
Newark | 5W Dc/Dc-Converter Econoline Dip24 4Kv Reg 4:1 Rohs Compliant: Yes |Recom Power REC5-4809DRWZ/H4/A/M/CTRL RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$34.8700 / $43.8400 | Buy Now |
|
DISTI #
REC5-4809DRWZ/H4/A/M/CTRL-ND
|
DigiKey | DC DC CONVERTER +/-9V 5W Min Qty: 15 Lead time: 17 Weeks Container: Tube | Temporarily Out of Stock |
|
$32.5807 | Buy Now |
|
DISTI #
919-5-4809DRWZH4AMC
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 5W DC/DC 4kV REG 4:1 18-72Vin +/-9Vout RoHS: Compliant | 0 |
|
$31.0900 / $37.6900 | Order Now |
|
DISTI #
10010557
|
RECOM Power | 5W DC/DC-Converter 'ECONOLINE' DIP24 4kV reg 4:1 RoHS: Compliant | 0 |
|
RFQ | |
|
|
Onlinecomponents.com | Dual Regulated DC-DC Converter - 5W - Input: 18 to 72VDC - Output: (+/-) 9VDC - 4kVDC Isolation - CTRL Pin - Metal Case - DIP24 RoHS: Compliant | 0 |
|
$26.1400 / $35.1600 | Buy Now |
|
DISTI #
000000000006058354
|
Sager | Isolated DC/DC Converters - Through Hole 5W DC/DC 4kV REG 4:1 18-72Vin +/-9Vout Min Qty: 1 | 0 |
|
$29.1400 / $33.9900 | Buy Now |
Part Details for REC5-4809DRWZ/H4/A/M/CTRL
REC5-4809DRWZ/H4/A/M/CTRL CAD Models
REC5-4809DRWZ/H4/A/M/CTRL Part Data Attributes
|
|
REC5-4809DRWZ/H4/A/M/CTRL
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
REC5-4809DRWZ/H4/A/M/CTRL
RECOM Power GmbH
Power Supply Module, 2 Output, 5W, Hybrid, DIP-24/9
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | DIP, DIP24,.6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Additional Feature | OUTPUT -9 VOLT ALSO AVAILABLE | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 72 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-MDMA-P9 | |
| Length | 32 mm | |
| Load Regulation-Max | 0.6% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.278 A | |
| Output Voltage-Max | 9.18 V | |
| Output Voltage-Min | 8.82 V | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | METAL | |
| Package Code | DIP | |
| Package Equivalence Code | DIP24,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 10.45 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 5 | |
| Total Power Output-Max | 5 W | |
| Trim/Adjustable Output | NO | |
| Width | 20.3 mm |
