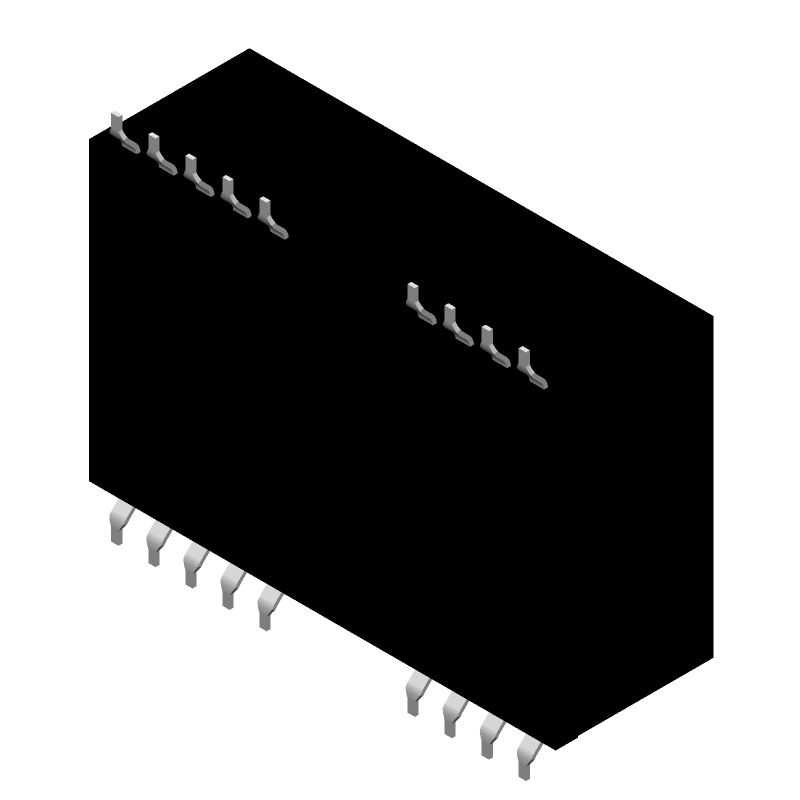

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for REC3-0505SRW/H6/C/SMD-R by RECOM Power GmbH
Results Overview of REC3-0505SRW/H6/C/SMD-R by RECOM Power GmbH
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
REC3-0505SRW/H6/C/SMD-R Information
REC3-0505SRW/H6/C/SMD-R by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BLM15PX181BH1D | Murata Manufacturing Co Ltd | FB SMD 0402inch 180ohm POWRTRN | |
| BLM15PX221SH1D | Murata Manufacturing Co Ltd | FB SMD 0402inch 220ohm POWRTRN | |
| BLM21HE601SH1L | Murata Manufacturing Co Ltd | FB SMD 0805inch 600ohm POWRTRN |
Price & Stock for REC3-0505SRW/H6/C/SMD-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63X1058
|
Newark | 3W Dc/Dc-Converter Econoline Smd 6Kv Reg 2:1 Rohs Compliant: Yes |Recom Power REC3-0505SRW/H6/C/SMD-R RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$20.5500 / $23.0500 | Buy Now |
|
DISTI #
945-REC3-0505SRW/H6/C/SMD-RCT-ND
|
DigiKey | DC DC CONVERTER 5V 3W Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
100 In Stock |
|
$25.6253 / $28.6100 | Buy Now |
|
DISTI #
10006408
|
RECOM Power | 3W DC/DC-Converter 'ECONOLINE' SMD 6kV reg 2:1 RoHS: Compliant | 100 |
|
$28.6100 | RFQ |
|
DISTI #
72116979
|
RS | DC-DC Converter, SMD, Single, 3W, 05V, 600mA, REC3-S_DRW(Z) Series Min Qty: 100 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 0 |
|
$29.3200 / $31.5300 | RFQ |
|
|
Onlinecomponents.com | Regulated DC-DC Converter - 3W - Input: 4.5 to 9VDC - Output: 5VDC - 6kV Isolation - 24 Lead SMD - Tape&Reel RoHS: Compliant | 0 |
|
$20.7300 / $43.4200 | Buy Now |
|
DISTI #
REC3-0505SRW/H6/C/
|
TME | Converter: DC/DC, 3W, Uin: 4.5÷5.75VDC, Uout: 5VDC, Iout: 600mA Min Qty: 100 | 0 |
|
$22.5700 | RFQ |
|
DISTI #
REC30505S6CSMDR
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 100 | 0 |
|
$20.8800 | Buy Now |
|
DISTI #
000000000006052690
|
Sager | Isolated DC/DC Converters - SMD 3W DC/DC 6kV REG 2:1 4.5-9Vin 5Vout Min Qty: 1 | 0 |
|
$23.8500 / $27.8200 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 31 |
|
RFQ |
Part Details for REC3-0505SRW/H6/C/SMD-R
REC3-0505SRW/H6/C/SMD-R CAD Models
REC3-0505SRW/H6/C/SMD-R Part Data Attributes
|
|
REC3-0505SRW/H6/C/SMD-R
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
REC3-0505SRW/H6/C/SMD-R
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, SMD-24/18
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SMD-24/18 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 9 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDMA-G18 | |
| JESD-609 Code | e1 | |
| Length | 31.8 mm | |
| Load Regulation-Max | 0.6% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 18 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 5.1 V | |
| Output Voltage-Min | 4.9 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | GWDIP18/24,1.0 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 11.55 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 19.9 mm |
Alternate Parts for REC3-0505SRW/H6/C/SMD-R
This table gives cross-reference parts and alternative options found for REC3-0505SRW/H6/C/SMD-R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of REC3-0505SRW/H6/C/SMD-R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| REC3-0505SRW/H6/A/X2 | RECOM Power GmbH | $33.4235 | DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, DIP-24/8 | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H6/A/X2 |
| REC3-0505SRW/H4/A/M/CTRL/SMD | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H4/A/M/CTRL/SMD |
| AM3T-0505S-RVZ | Aimtec | Check for Price | DC/DC Converter; Product Weight (grams): 17; Input voltage min (V): 4.5; Input voltage max (V): 9; Output voltage min: 5; Output voltage max: 5; Output voltage dual assymetric (y/n): Single; Output Power (W): 3; Max Output current (A): 0.6; Efficiency (%): 70; Max Capacitive load (µF): 2200; Package type: DIP24; Mounting: PCB; W (in): 0.8; L (in): 1.25; H (in): 0.4; W (mm): 20.32; L (mm): 31.75; H (mm): 10.16; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 60; Switching Frequency typ (KHz): 400; Short circuit protection: Continuous | REC3-0505SRW/H6/C/SMD-R vs AM3T-0505S-RVZ |
| REC3-0505SRW/H2/A/M/CTRL/SMD-R | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H2/A/M/CTRL/SMD-R |
| AM3T-0505SH35-VZ | Aimtec | Check for Price | DC/DC Converter; Product Weight (grams): 17; Input voltage min (V): 4.5; Input voltage max (V): 9; Output voltage min: 5; Output voltage max: 5; Output voltage dual assymetric (y/n): Single; Output Power (W): 3; Max Output current (A): 0.6; Efficiency (%): 70; Max Capacitive load (µF): 2200; Package type: DIP24; Mounting: PCB; W (in): 0.8; L (in): 1.25; H (in): 0.4; W (mm): 20.32; L (mm): 31.75; H (mm): 10.16; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 3500; EMC compliance 2: EN 55032 Class A; Case material: Copper; Application 4 (building automation/IoT): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 60; Switching Frequency typ (KHz): 400; Short circuit protection: Continuous | REC3-0505SRW/H6/C/SMD-R vs AM3T-0505SH35-VZ |
| AM3T-0505SH30-PNZ | Aimtec | Check for Price | DC/DC Converter; Product Weight (grams): 14; Input voltage min (V): 4.5; Input voltage max (V): 9; Output voltage min: 5; Output voltage max: 5; Output voltage dual assymetric (y/n): Single; Output Power (W): 3; Max Output current (A): 0.6; Efficiency (%): 74; Max Capacitive load (µF): 4700; Package type: DIP24; Mounting: PCB; W (in): 0.8; L (in): 1.24; H (in): 0.4; W (mm): 20.3; L (mm): 31.6; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 3000; EMC compliance 1: EN 55022 Class A; EMC compliance 2: EN 55022 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±3; Line Regulation (% of Vin): ±0.2; Load Regulation %: ±0.2; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 200; Short circuit protection: Continuous | REC3-0505SRW/H6/C/SMD-R vs AM3T-0505SH30-PNZ |
| REC3-0505SRW/H6/A/M/CTRL/SMD | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H6/A/M/CTRL/SMD |
| REC3-0505SRW/H6/A/CTRL/X2 | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H6/A/CTRL/X2 |
| REC3-0505SRW/H6/A/M/CTRL/X2 | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H6/A/M/CTRL/X2 |
| REC3-0505SRW/H/B/SMD/CTRL | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | REC3-0505SRW/H6/C/SMD-R vs REC3-0505SRW/H/B/SMD/CTRL |
REC3-0505SRW/H6/C/SMD-R Frequently Asked Questions (FAQ)
-
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
-
Yes, the REC3-0505SRW/H6/C/SMD-R is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure reliable operation.
-
To ensure EMC, RECOM recommends following the recommended PCB layout, using a metal shield or screen around the converter, and implementing proper filtering and shielding of input and output cables. Additionally, the converter should be placed at least 10 mm away from other components to minimize electromagnetic interference.
-
The maximum allowable capacitance on the output of the REC3-0505SRW/H6/C/SMD-R is 2200 μF. Exceeding this value may cause instability or oscillation in the converter.
-
Yes, the REC3-0505SRW/H6/C/SMD-R can be used in a redundant configuration to achieve high reliability and availability. However, it's recommended to follow RECOM's guidelines for redundant configuration and to ensure that the converters are properly synchronized and monitored.
