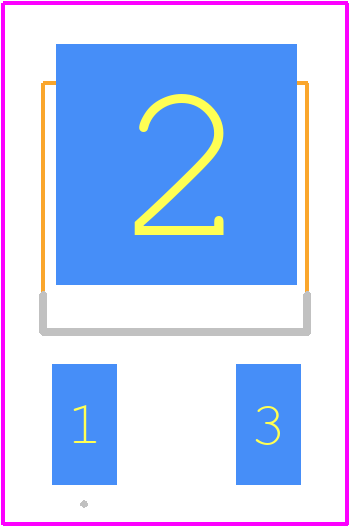

Footprint
-

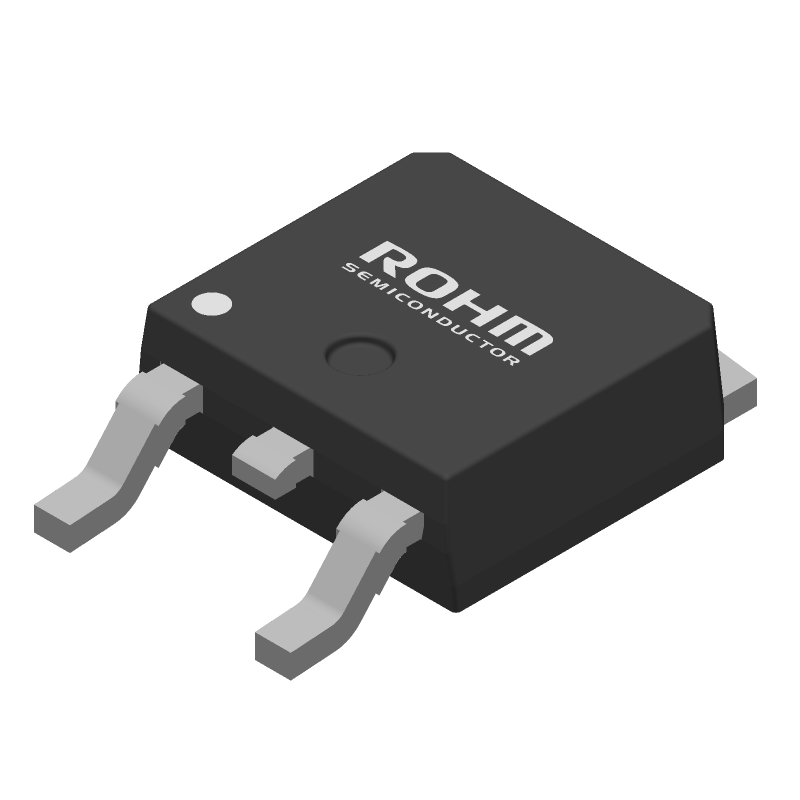

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RD3L050SNTL1 by ROHM Semiconductor
Results Overview of RD3L050SNTL1 by ROHM Semiconductor
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
RD3L050SNTL1 Information
RD3L050SNTL1 by ROHM Semiconductor is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for RD3L050SNTL1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23AH3407
|
Newark | Mosfet, N-Ch, 60V, 5A, 150Deg C, 15W, Transistor Polarity:N Channel, Continuous Drain Current Id:5A, Drain Source Voltage Vds:60V, On Resistance Rds(On):0.078Ohm, Rds(On) Test Voltage Vgs:10V, Threshold Voltage Vgs:3V, Power Rohs Compliant: Yes |Rohm RD3L050SNTL1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3056 |
|
$0.5660 / $1.6500 | Buy Now |
|
DISTI #
846-RD3L050SNTL1CT-ND
|
DigiKey | MOSFET N-CH 60V 5A TO252 Min Qty: 1 Lead time: 21 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
579 In Stock |
|
$0.4436 / $1.7700 | Buy Now |
|
DISTI #
755-RD3L050SNTL1
|
Mouser Electronics | MOSFETs Nch 60V 5A TO-252(DPAK) RoHS: Compliant | 3036 |
|
$0.4550 / $1.3200 | Buy Now |
|
DISTI #
87887504
|
Verical | Trans MOSFET N-CH 60V 5A 3-Pin(2+Tab) DPAK T/R Min Qty: 122 Package Multiple: 1 Date Code: 2501 | Americas - 2500 |
|
$0.5815 / $0.6695 | Buy Now |
|
DISTI #
65272911
|
Verical | Trans MOSFET N-CH 60V 5A 3-Pin(2+Tab) DPAK T/R Min Qty: 122 Package Multiple: 1 Date Code: 2201 | Americas - 562 |
|
$0.7360 / $0.7396 | Buy Now |
|
DISTI #
87730061
|
Verical | Trans MOSFET N-CH 60V 5A 3-Pin(2+Tab) DPAK T/R Min Qty: 92 Package Multiple: 1 Date Code: 2233 | Americas - 341 |
|
$0.6860 / $0.9880 | Buy Now |
|
DISTI #
RD3L050SNTL1
|
TME | Transistor: N-MOSFET, unipolar, 60V, 5A, Idm: 15A, 15W, DPAK,TO252 Min Qty: 1 | 0 |
|
$0.3840 / $1.3060 | RFQ |
|
DISTI #
RD3L050SNTL1
|
Avnet Silica | Transistor MOSFET NCH 60V 5A 3Pin TO252 Emboss TR (Alt: RD3L050SNTL1) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for RD3L050SNTL1
RD3L050SNTL1 CAD Models
RD3L050SNTL1 Part Data Attributes
|
|
RD3L050SNTL1
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RD3L050SNTL1
ROHM Semiconductor
Power Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | DPAK-3/2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2017-07-24 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 5 A | |
| Drain-source On Resistance-Max | 0.14 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-252 | |
| JESD-30 Code | R-PSSO-G2 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 15 A | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
