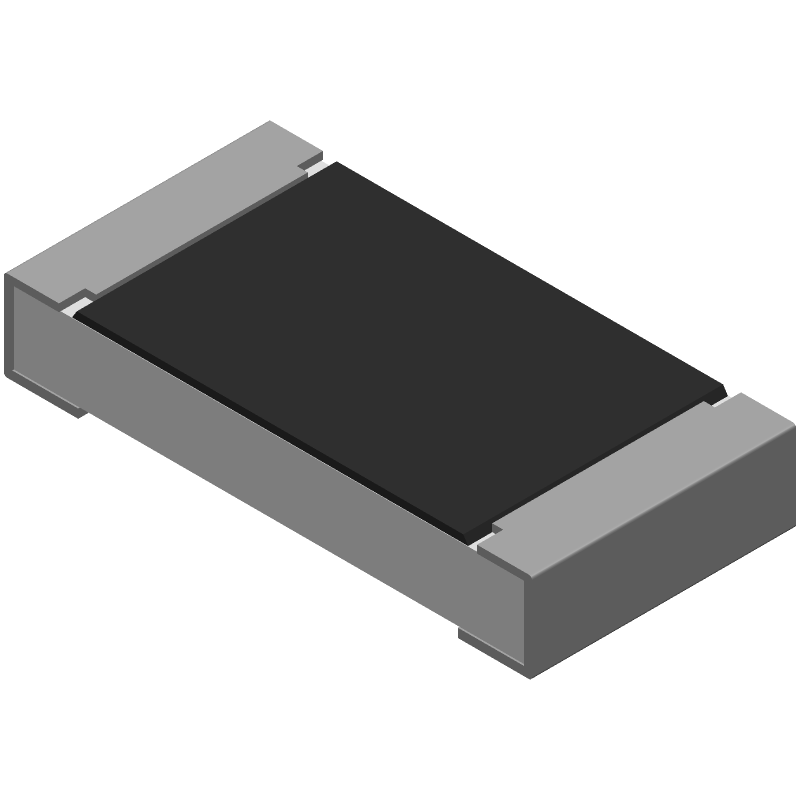

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RCS12064R99FKEA by Vishay Intertechnologies
Results Overview of RCS12064R99FKEA by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
RCS12064R99FKEA Information
RCS12064R99FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RCS12064R99FKEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3235303
|
Farnell | RESISTOR, RCS1206 100 4R99 ET1 E3 RoHS: Compliant Min Qty: 10 Lead time: 14 Weeks, 0 Days Container: Cut Tape | 4327 |
|
$0.0551 / $0.1087 | Buy Now |
|
DISTI #
3235303RL
|
Farnell | RESISTOR, RCS1206 100 4R99 ET1 E3 RoHS: Compliant Min Qty: 500 Lead time: 14 Weeks, 0 Days Container: Reel | 4327 |
|
$0.0551 / $0.0619 | Buy Now |
|
DISTI #
RCS12064R99FKEA
|
Avnet Americas | RCS1206 100 4R99 1% ET1 e3 - Tape and Reel (Alt: RCS12064R99FKEA) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0350 / $0.0410 | Buy Now |
|
DISTI #
71-RCS12064R99FKEA
|
Mouser Electronics | Thick Film Resistors - SMD 0.5watt 4.99ohms 1% 100ppm RoHS: Compliant | 6869 |
|
$0.0370 / $0.2400 | Buy Now |
|
|
Future Electronics | 1206 4.99 Ohms 1% Anti-Surge, High Power Thick Film Chip Resistors RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel | 5000Reel |
|
$0.0369 / $0.0385 | Buy Now |
|
DISTI #
RCS12064R99FKEA
|
TTI | Thick Film Resistors - SMD 0.5watt 4.99ohms 1% 100ppm pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 5000 In Stock |
|
$0.0330 / $0.0440 | Buy Now |
|
|
Future Electronics | 1206 4.99 Ohms 1% Anti-Surge, High Power Thick Film Chip Resistors Min Qty: 5000 Package Multiple: 5000 |
5000 null |
|
$0.0576 / $0.0594 | Buy Now |
|
|
LCSC | 500mW Thick Film Resistors 200V 1% 100ppm/ 4.99 1206 Chip Resistor - Surface Mount ROHS | 100 |
|
$0.0873 / $0.0915 | Buy Now |
Part Details for RCS12064R99FKEA
RCS12064R99FKEA CAD Models
RCS12064R99FKEA Part Data Attributes
|
|
RCS12064R99FKEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
RCS12064R99FKEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 4.99ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4.99 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
RCS12064R99FKEA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for RCS12064R99FKEA is between 260°C to 280°C (500°F to 536°F) for a maximum of 10 seconds.
-
Yes, the RCS12064R99FKEA is a thick-film resistor designed for high-frequency applications up to 50 GHz. It has a low inductance and capacitance, making it suitable for high-frequency circuits.
-
The power rating of the RCS12064R99FKEA at 70°C is 1.2 W. However, it's essential to derate the power according to the ambient temperature to ensure reliable operation.
-
Yes, the RCS12064R99FKEA resistor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.
-
The MSL of the RCS12064R99FKEA is 1, which means it can withstand a maximum of 30 days at 30°C and 60% relative humidity without being exposed to moisture-related defects.
