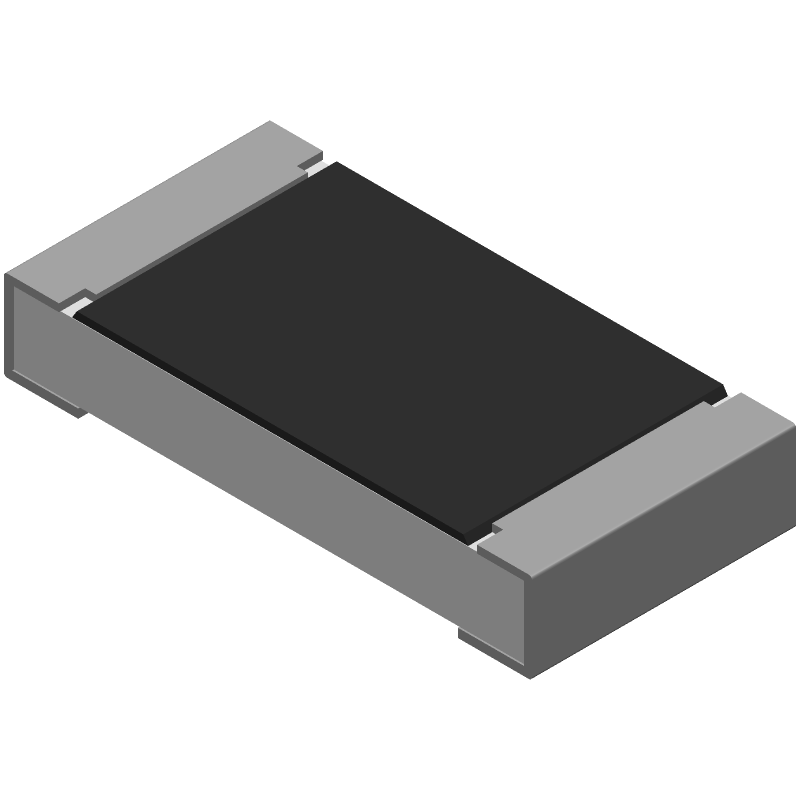

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RCS12062K00FKEA by Vishay Intertechnologies
Results Overview of RCS12062K00FKEA by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
RCS12062K00FKEA Information
RCS12062K00FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RCS12062K00FKEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41AH5233
|
Newark | Res, 2K, 1%, 0.5W, 1206, Thick Film, Resistance:2Kohm, Resistance Tolerance:± 1%, Power Rating:500Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:Anti-Surge, Product Range:Rcs E3 Series Rohs Compliant: Yes |Vishay RCS12062K00FKEA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2192 |
|
$0.0260 | Buy Now |
|
DISTI #
41AH5234
|
Newark | Res, 2K, 1%, 0.5W, 1206, Thick Film, Resistance:2Kohm, Resistance Tolerance:± 1%, Power Rating:500Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:Anti-Surge, Product Range:Rcs E3 Series Rohs Compliant: Yes |Vishay RCS12062K00FKEA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
RCS12062K00FKEA
|
Avnet Americas | RCS1206 100 2K0 1% ET1 e3 - Tape and Reel (Alt: RCS12062K00FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0227 / $0.0320 | Buy Now |
|
DISTI #
41AH5233
|
Avnet Americas | RCS1206 100 2K0 1% ET1 e3 - Product that comes on tape, but is not reeled (Alt: 41AH5233) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 0 |
|
$0.0400 / $0.1600 | Buy Now |
|
DISTI #
71-RCS12062K00FKEA
|
Mouser Electronics | Thick Film Resistors - SMD 0.5watt 2Kohms 1% 100ppm RoHS: Compliant | 703 |
|
$0.0280 / $0.1500 | Buy Now |
|
DISTI #
V72:2272_24012606
|
Arrow Electronics | Res Thick Film 1206 2K Ohm 1% 0.5W(1/2W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Medical Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2002 Container: Cut Strips | Americas - 8324 |
|
$0.0273 / $0.0570 | Buy Now |
|
DISTI #
V79:2366_26232477
|
Arrow Electronics | Res Thick Film 1206 2K Ohm 1% 0.5W(1/2W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Medical Min Qty: 1 Package Multiple: 1 Date Code: 2008 | Americas - 4664 |
|
$0.0270 | Buy Now |
|
DISTI #
59165217
|
Verical | Res Thick Film 1206 2K Ohm 1% 0.5W(1/2W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Medical Min Qty: 213 Package Multiple: 1 Date Code: 2008 | Americas - 4664 |
|
$0.0270 | Buy Now |
|
DISTI #
61181330
|
Verical | Res Thick Film 1206 2K Ohm 1% 0.5W(1/2W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Medical Min Qty: 1924 Package Multiple: 1 | Americas - 2192 |
|
$0.0380 | Buy Now |
|
DISTI #
RCS12062K00FKEA
|
Avnet Abacus | RCS1206 100 2K0 1 ET1 e3 (Alt: RCS12062K00FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for RCS12062K00FKEA
RCS12062K00FKEA CAD Models
RCS12062K00FKEA Part Data Attributes
|
|
RCS12062K00FKEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
RCS12062K00FKEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 2000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 13 Weeks, 3 Days | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 2000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
RCS12062K00FKEA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for RCS12062K00FKEA is between 260°C to 280°C (500°F to 536°F) for a maximum of 10 seconds.
-
Yes, the RCS12062K00FKEA is a thick-film resistor designed for high-frequency applications up to 50 GHz. It has a low inductance and capacitance, making it suitable for high-frequency circuits.
-
The power rating of the RCS12062K00FKEA decreases with increasing temperature. At 125°C, the power rating is 50% of the maximum power rating, and at 150°C, it is 25% of the maximum power rating.
-
Yes, the RCS12062K00FKEA is designed to withstand high-vibration environments. It has a robust construction and is suitable for applications with high mechanical stress.
-
Yes, the RCS12062K00FKEA is compatible with lead-free soldering. It is RoHS-compliant and meets the requirements for lead-free soldering.
