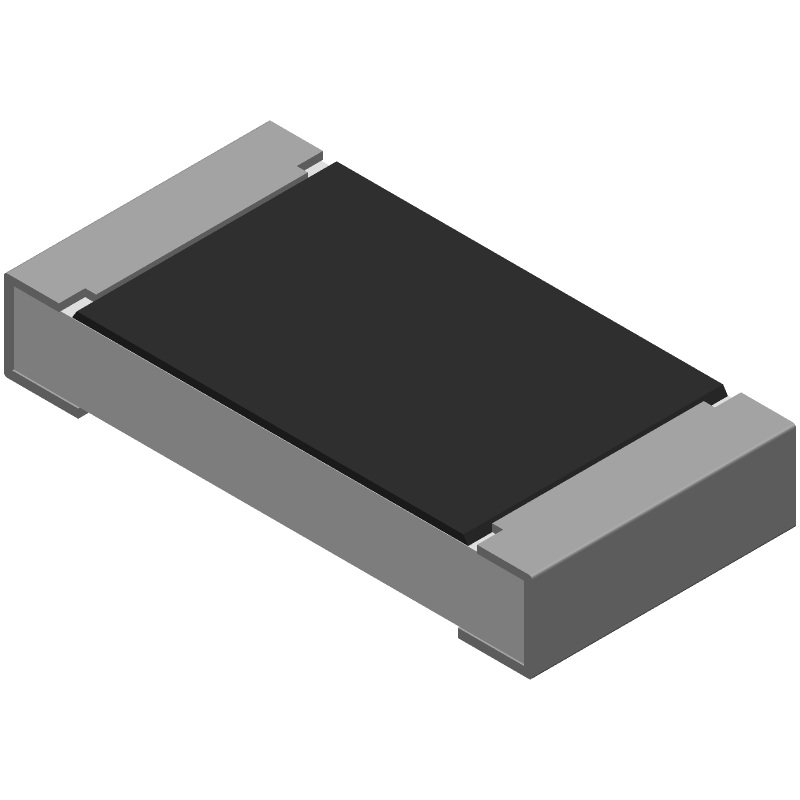

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RCS12061R60FKEA by Vishay Intertechnologies
Results Overview of RCS12061R60FKEA by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
RCS12061R60FKEA Information
RCS12061R60FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RCS12061R60FKEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3235228
|
Farnell | RESISTOR, RCS1206 100 1R6 ET1 E3 RoHS: Compliant Min Qty: 10 Lead time: 14 Weeks, 0 Days Container: Cut Tape | 4100 |
|
$0.0470 / $0.0879 | Buy Now |
|
DISTI #
3235228RL
|
Farnell | RESISTOR, RCS1206 100 1R6 ET1 E3 RoHS: Compliant Min Qty: 500 Lead time: 14 Weeks, 0 Days Container: Reel | 4100 |
|
$0.0470 / $0.0519 | Buy Now |
|
DISTI #
RCS12061R60FKEA
|
Avnet Americas | RCS1206 100 1R6 1% ET1 e3 - Tape and Reel (Alt: RCS12061R60FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0350 / $0.0410 | Buy Now |
|
DISTI #
71-RCS12061R60FKEA
|
Mouser Electronics | Thick Film Resistors - SMD 0.5watt 1.6ohms 1% 100ppm RoHS: Compliant | 3037 |
|
$0.0370 / $0.2200 | Buy Now |
|
|
Future Electronics | Resistor, Rcs1206 100 1R6 Et1 E3 Rohs Compliant Yes Vishay RCS12061R60FKEA RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel | 10000Reel |
|
$0.0369 / $0.0385 | Buy Now |
|
|
Future Electronics | Resistor, Rcs1206 100 1R6 Et1 E3 Rohs Compliant Yes Vishay RCS12061R60FKEA Min Qty: 5000 Package Multiple: 5000 |
10000 null |
|
$0.0369 / $0.0385 | Buy Now |
Part Details for RCS12061R60FKEA
RCS12061R60FKEA CAD Models
RCS12061R60FKEA Part Data Attributes
|
|
RCS12061R60FKEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
RCS12061R60FKEA
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1.6ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 1.6 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
