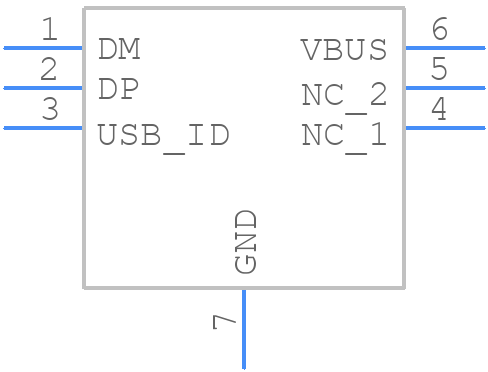

Part Symbol
-
Footprint
-

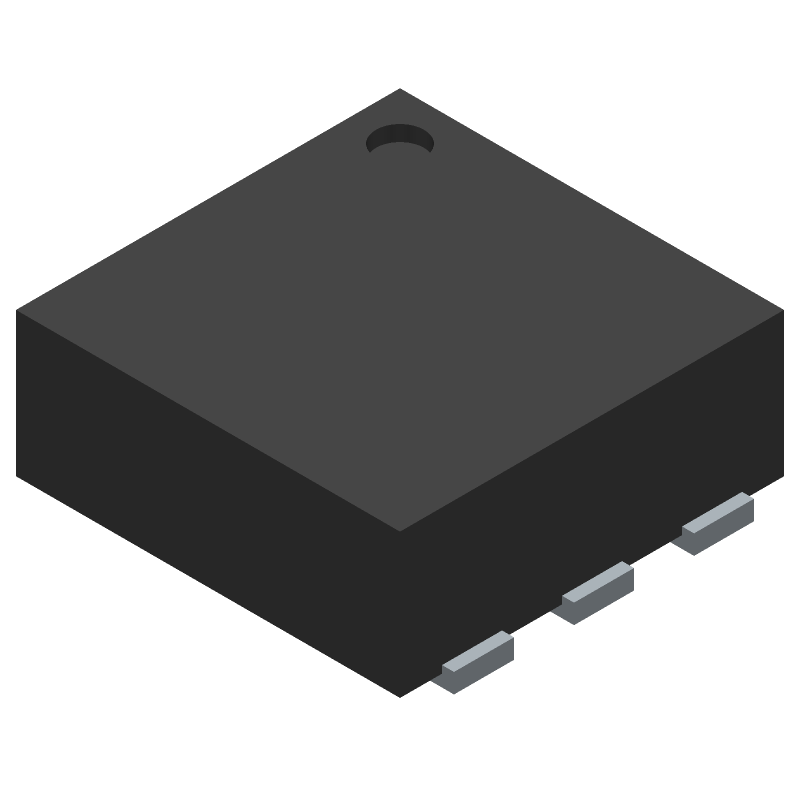

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RCLAMP1654P.TCT by Semtech Corporation
Results Overview of RCLAMP1654P.TCT by Semtech Corporation
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Telecommunications
Communication and Networking
RCLAMP1654P.TCT Information
RCLAMP1654P.TCT by Semtech Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RCLAMP1654P.TCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AK9431
|
Newark | Esd Protection Device, 5.5V, Slp1616P6-6, Clamping Voltage Vc Max:30V, Diode Case Style:Slp1616P6, No. Of Pins:6Pins, Operating Voltage:5.5V, Power Dissipation Pd:200W, Product Range:Railclamp Series Rohs Compliant: Yes |Semtech RCLAMP1654P.TCT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 492 |
|
$0.4850 / $0.9000 | Buy Now |
|
DISTI #
77M8295
|
Newark | Transient Voltage Suppressor, Tvs, Railclamp Series, 5.5 V, Slp1616P6, 6, 6.5 V Rohs Compliant: Yes |Semtech RCLAMP1654P.TCT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3430 / $0.4460 | Buy Now |
|
DISTI #
RCLAMP1654P.TCTCT-ND
|
DigiKey | TVS DIODE 5.5VWM 30VC SLP1616P6 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5083 In Stock |
|
$0.3375 / $1.4500 | Buy Now |
|
DISTI #
947-RCLAMP1654P.TCT
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes RAILCLAMP 1LINE 12V RoHS: Compliant | 6000 |
|
$0.3370 / $1.4500 | Buy Now |
|
|
Bristol Electronics | 3634 |
|
RFQ | ||
|
|
Quest Components | 100 W, UNIDIRECTIONAL, 2 ELEMENT, SILICON, TVS DIODE | 2272 |
|
$0.2800 / $0.7000 | Buy Now |
|
DISTI #
RCLAMP1654P.TCT
|
IBS Electronics | RCLAMP1654P SERIES 5.5 V 200 W UNI-DIRECTIONAL TVS DIODE - SLP1616P6 Min Qty: 6000 Package Multiple: 1 | 0 |
|
$0.4030 / $0.4160 | Buy Now |
|
DISTI #
RCLAMP1654P.TCT
|
Richardson RFPD | TVS RoHS: Compliant Min Qty: 1000 | 0 |
|
$0.3600 | Buy Now |
|
DISTI #
RCLAMP1654P.TCT
|
Avnet Silica | Diode TVS Dual UniDir 55V 200W 6Pin SLP EP TR (Alt: RCLAMP1654P.TCT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Braemac Americas-Symmetry | RAILCLAMP 1LINE 12V Min Qty: 1 | 0 |
|
$0.3294 / $0.3645 | Buy Now |
Part Details for RCLAMP1654P.TCT
RCLAMP1654P.TCT CAD Models
RCLAMP1654P.TCT Part Data Attributes
|
|
RCLAMP1654P.TCT
Semtech Corporation
Buy Now
Datasheet
|
Compare Parts:
RCLAMP1654P.TCT
Semtech Corporation
Trans Voltage Suppressor Diode, 100W, 5.5V V(RWM), Unidirectional, 2 Element, Silicon, 1.60 X 1.60 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, PLASTIC, CASE SLP1616P6, 6 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SEMTECH CORP | |
| Part Package Code | DFN | |
| Package Description | 1.60 X 1.60 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, PLASTIC, CASE SLP1616P6, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | CASE SLP1616P6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | SEMTECH | |
| Breakdown Voltage-Max | 10 V | |
| Breakdown Voltage-Min | 6.5 V | |
| Breakdown Voltage-Nom | 8 V | |
| Clamping Voltage-Max | 30 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 100 W | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 5.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL |
Alternate Parts for RCLAMP1654P.TCT
This table gives cross-reference parts and alternative options found for RCLAMP1654P.TCT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RCLAMP1654P.TCT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPD4E1U06DCKR | Texas Instruments | $0.1290 | Quad 0.8-pF, 5.5-V, ±15-kV ESD protection diode in SOT-23 & SC70 packages 6-SC70 -40 to 125 | RCLAMP1654P.TCT vs TPD4E1U06DCKR |
| TPD4E004DRYR | Texas Instruments | $0.2152 | Quad 1.6-pF, 5.5-V, ±8-kV ESD protection diode with VCC pin for High Speed Interfaces 6-SON -40 to 85 | RCLAMP1654P.TCT vs TPD4E004DRYR |
| USBLC6-2P6 | STMicroelectronics | $0.2174 | ESD Protection for USB 2.0 High Speed | RCLAMP1654P.TCT vs USBLC6-2P6 |
| RCLAMP0503N.TCT | Semtech Corporation | $0.3033 | Trans Voltage Suppressor Diode, 100W, 6.5V V(RWM), Unidirectional, 1 Element, Silicon, 1.45 X 1 MM, 0.58 MM HEIGHT, ROHS COMPLIANT PACKAGE-6 | RCLAMP1654P.TCT vs RCLAMP0503N.TCT |
| TPD4E002DRLR | Texas Instruments | $0.3170 | Quad 11-pF, 5.5-V, ±15-kV ESD protection diode 5-SOT-5X3 -40 to 125 | RCLAMP1654P.TCT vs TPD4E002DRLR |
| RCLAMP0522P.TCT | Semtech Corporation | $0.3518 | Trans Voltage Suppressor Diode, 150W, 5V V(RWM), Unidirectional, 1 Element, Silicon, 1.60 X 1.0 MM, 0.58 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, CASE SLP1610P4, 6 PIN | RCLAMP1654P.TCT vs RCLAMP0522P.TCT |
| NUP4114UPXV6T1G | onsemi | $0.4031 | Sub-1.0 pF ESD Array, SOT-563, 6 LEAD, 4000-REEL | RCLAMP1654P.TCT vs NUP4114UPXV6T1G |
| RCLAMP0502N.TCT | Semtech Corporation | $0.4512 | Trans Voltage Suppressor Diode, 100W, 6.5V V(RWM), Unidirectional, 1 Element, Silicon, 1.20 X 1 MM, 0.58 MM HEIGHT, ROHS COMPLIANT PACKAGE-6 | RCLAMP1654P.TCT vs RCLAMP0502N.TCT |
| TPD4E004DRLR | Texas Instruments | Check for Price | UNIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC PACKAGE-6 | RCLAMP1654P.TCT vs TPD4E004DRLR |
| CDSOT563-0502 | Bourns Inc | Check for Price | Trans Voltage Suppressor Diode, 5V V(RWM), Unidirectional, 1 Element, Silicon, ROHS COMPLIANT PACKAGE-6 | RCLAMP1654P.TCT vs CDSOT563-0502 |
