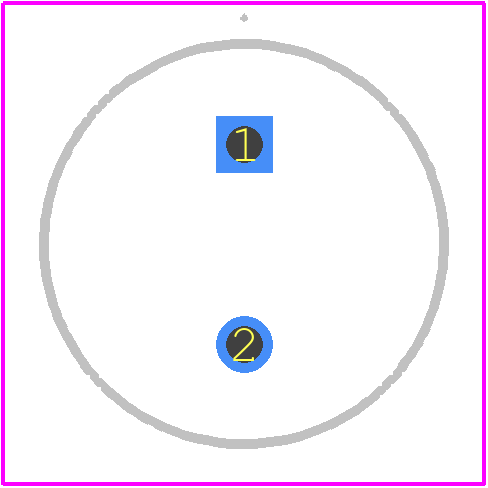

Footprint
-

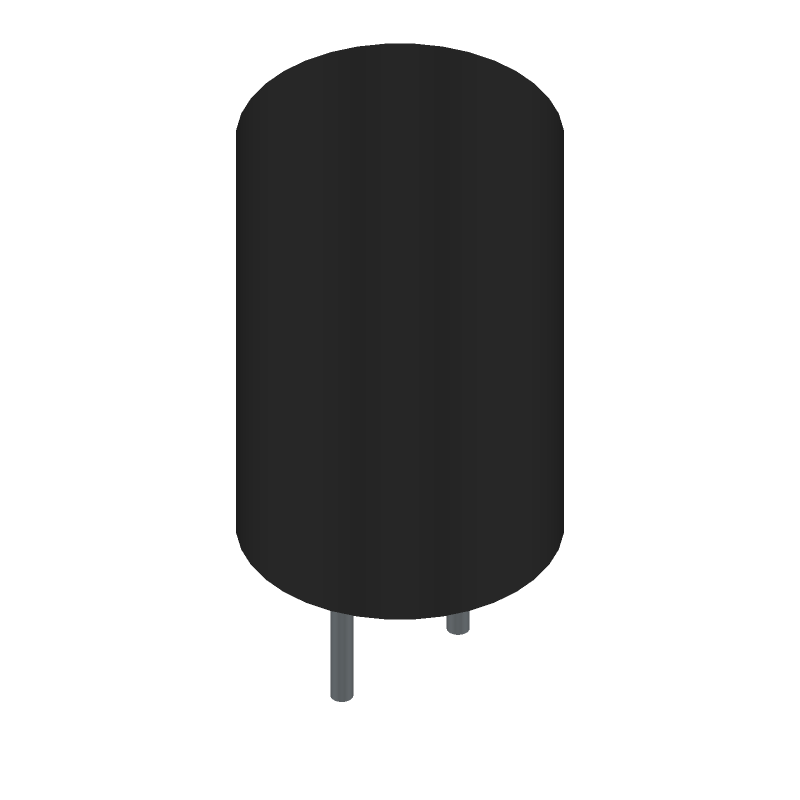

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RCH114NP-101KB by Sumida Corporation
Results Overview of RCH114NP-101KB by Sumida Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RCH114NP-101KB Information
RCH114NP-101KB by Sumida Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for RCH114NP-101KB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
308-RCH114NP-101KB-ND
|
DigiKey | INDUCTOR Min Qty: 379 Lead time: 26 Weeks Container: Box | Temporarily Out of Stock |
|
$0.4269 | Buy Now |
|
DISTI #
RCH114NP-101KB
|
Avnet Americas | - Tape and Reel (Alt: RCH114NP-101KB) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.3965 / $0.5086 | Buy Now |
|
DISTI #
851-RCH114NP-101KB
|
Mouser Electronics | Power Inductors - Leaded Through Hole Unshielded Inductor RoHS: Compliant | 543 |
|
$0.3900 / $0.8700 | Buy Now |
Part Details for RCH114NP-101KB
RCH114NP-101KB CAD Models
RCH114NP-101KB Part Data Attributes
|
|
RCH114NP-101KB
Sumida Corporation
Buy Now
Datasheet
|
Compare Parts:
RCH114NP-101KB
Sumida Corporation
General Purpose Inductor, 100uH, 10%, 1 Element, Ferrite-Core, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SUMIDA CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Sumida | |
| Construction | Cylindrical | |
| Core Material | Ferrite | |
| DC Resistance | 0.143 Ω | |
| Inductance-Nom (L) | 100 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Lead Diameter | 0.7 mm | |
| Lead Length | 5 mm | |
| Lead Spacing | 5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Diameter | 10 mm | |
| Package Length | 14.4 mm | |
| Package Style | Radial | |
| Packing Method | Bulk | |
| Rated Current-Max | 2.3 A | |
| Shape/Size Description | CYLINDRICAL PACKAGE | |
| Shielded | NO | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Test Frequency | 0.001 MHz | |
| Tolerance | 10% |
RCH114NP-101KB Frequently Asked Questions (FAQ)
-
A symmetrical layout with a ground plane underneath the inductor is recommended to minimize radiation and ensure optimal performance. Keep the PCB traces short and wide to reduce parasitic inductance and resistance.
-
Ensure good airflow around the inductor, and consider using a thermal pad or heat sink if the operating temperature exceeds 85°C. The inductor's temperature rise should not exceed 40°C above the ambient temperature.
-
The SRF of the RCH114NP-101KB is typically around 100-150 MHz, but it can vary depending on the specific application and PCB layout. It's essential to ensure the operating frequency is below the SRF to avoid unwanted resonances.
-
The RCH114NP-101KB is designed to withstand moderate vibrations, but it's essential to ensure the PCB is securely fastened and the inductor is properly soldered to prevent mechanical stress. Consult Sumida Corporation for specific vibration testing and recommendations.
-
Consider factors such as the operating frequency, current rating, inductance value, and DC resistance when selecting an inductor. Consult the datasheet and application notes, and contact Sumida Corporation's technical support if needed.
