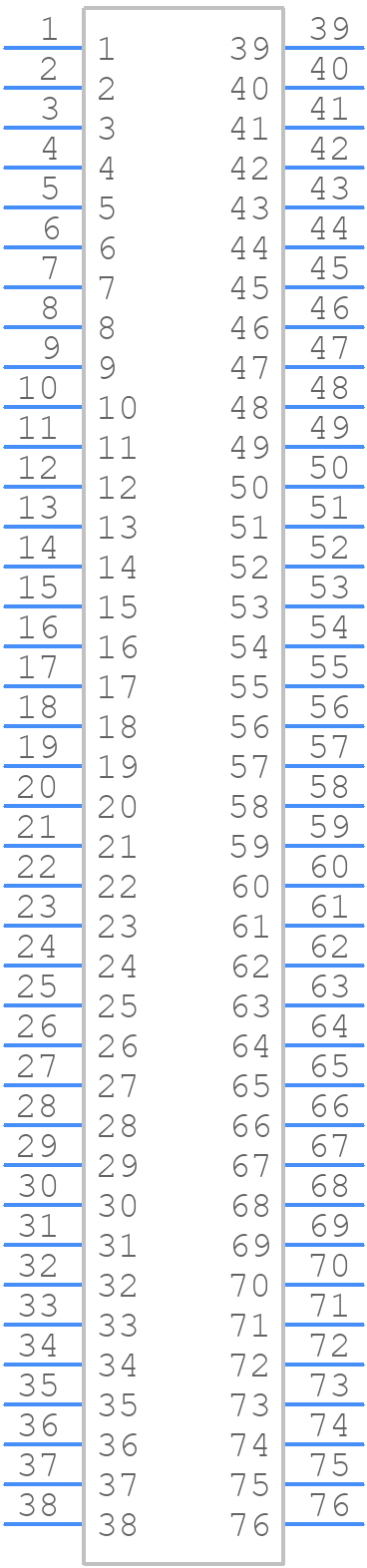

Part Symbol
-

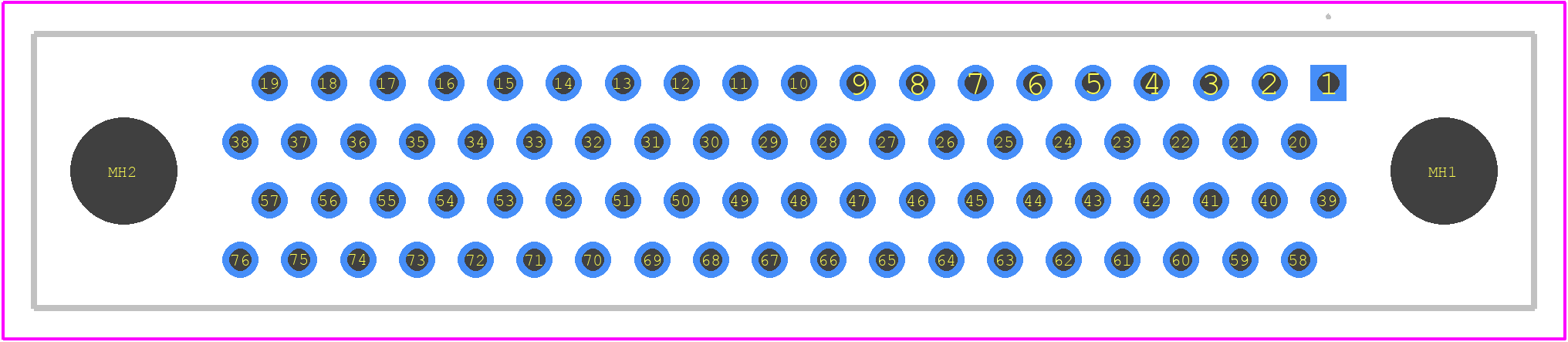

Footprint
-

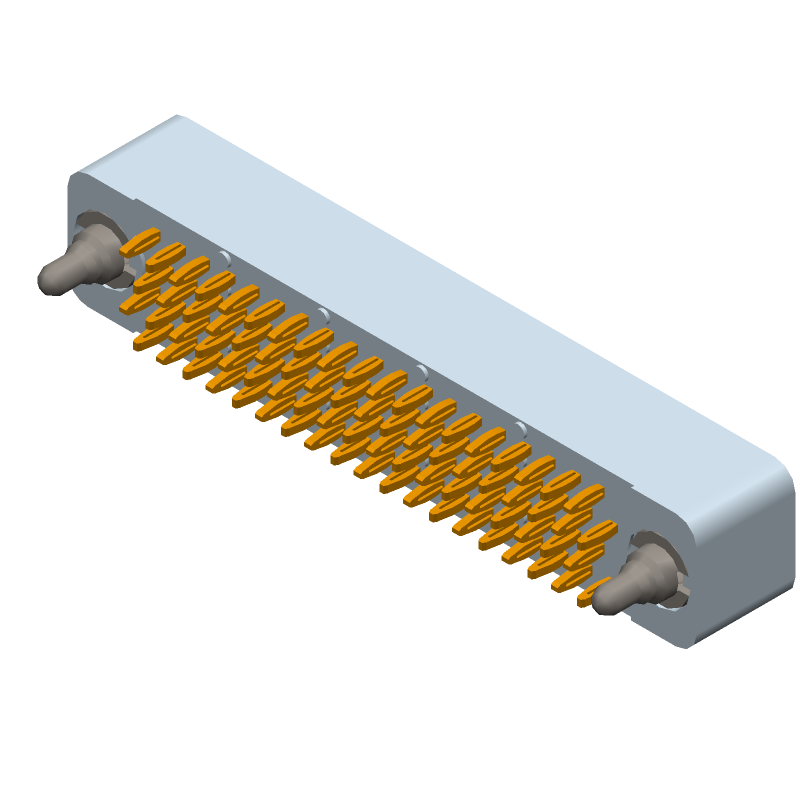

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RC422-076-101-3000 by AirBorn Inc
Results Overview of RC422-076-101-3000 by AirBorn Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RC422-076-101-3000 Information
RC422-076-101-3000 by AirBorn Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for RC422-076-101-3000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3937-RC422-076-101-3000-ND
|
DigiKey | .075 HIGH DENSITY RECTANGULAR CO Min Qty: 1 Lead time: 14 Weeks Container: Bag MARKETPLACE PRODUCT |
25 In Stock |
|
$619.3200 | Buy Now |
|
DISTI #
4134-RC422-076-101-3000-ND
|
DigiKey | RC422-076-101-3000 Min Qty: 6 Lead time: 8 Weeks Container: Bulk | Temporarily Out of Stock |
|
$261.7917 | Buy Now |
|
DISTI #
479-RC4220761013000
|
Mouser Electronics | Rectangular MIL Spec Connectors CONNECTOR, R SERIES RoHS: Compliant | 3 |
|
$259.2700 / $290.2200 | Buy Now |
|
DISTI #
ABNRC422-076-101-3000
|
Heilind Electronics | LOW PROFILE RECEPTACLE | Americas - 1 in Stock |
|
$99.0157 / $287.3700 | Buy Now |
|
DISTI #
RC422-076-101-3000
|
TTI | Rectangular MIL Spec Connectors CONNECTOR, R SERIES Min Qty: 1 Package Multiple: 1 Container: Each |
Americas - 64 In Stock |
|
$94.7800 / $102.5900 | Buy Now |
|
DISTI #
ABNRC422-076-101-3000
|
Interstate Connecting Components | LOW PROFILE RECEPTACLE | 1 |
|
$99.0157 / $287.3700 | Buy Now |
|
|
Powell Electronics | Stackable, Press-Nit, Compliant Pin/Sock Min Qty: 1 | 451 |
|
$80.2500 / $98.5200 | Buy Now |
Part Details for RC422-076-101-3000
RC422-076-101-3000 CAD Models
RC422-076-101-3000 Part Data Attributes
|
|
RC422-076-101-3000
AirBorn Inc
Buy Now
Datasheet
|
Compare Parts:
RC422-076-101-3000
AirBorn Inc
Board Stacking Connector
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AIRBORN INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | AirBorn | |
| Body Breadth | 0.35 inch | |
| Body Depth | 0.3 inch | |
| Body Length | 1.914 inch | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Gender | FEMALE | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 5 mΩ | |
| Contact Style | RND PIN-SKT | |
| Durability | 500 Cycles | |
| Filter Feature | NO | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Material | GLASS FILLED POLYPHENYLENE SULFIDE | |
| Mating Contact Pitch | 0.075 inch | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 4 | |
| Number of Rows Loaded | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| Plating Thickness | 50u inch | |
| Rated Current (Signal) | 3 A | |
| Terminal Length | 0.095 inch | |
| Terminal Pitch | 1.91 mm | |
| Termination Type | PRESS FIT | |
| Total Number of Contacts | 76 |
RC422-076-101-3000 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the RC422-076-101-3000 is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration environments.
-
The operating temperature range for the RC422-076-101-3000 is -55°C to 125°C (-133°F to 257°F).
-
Yes, the RC422-076-101-3000 is designed to meet the requirements of IP67 and is suitable for use in harsh environments, including those with high humidity or exposure to chemicals.
-
The mating cycle life of the RC422-076-101-3000 is 500 cycles minimum.
