RC1206JR-070RL Information

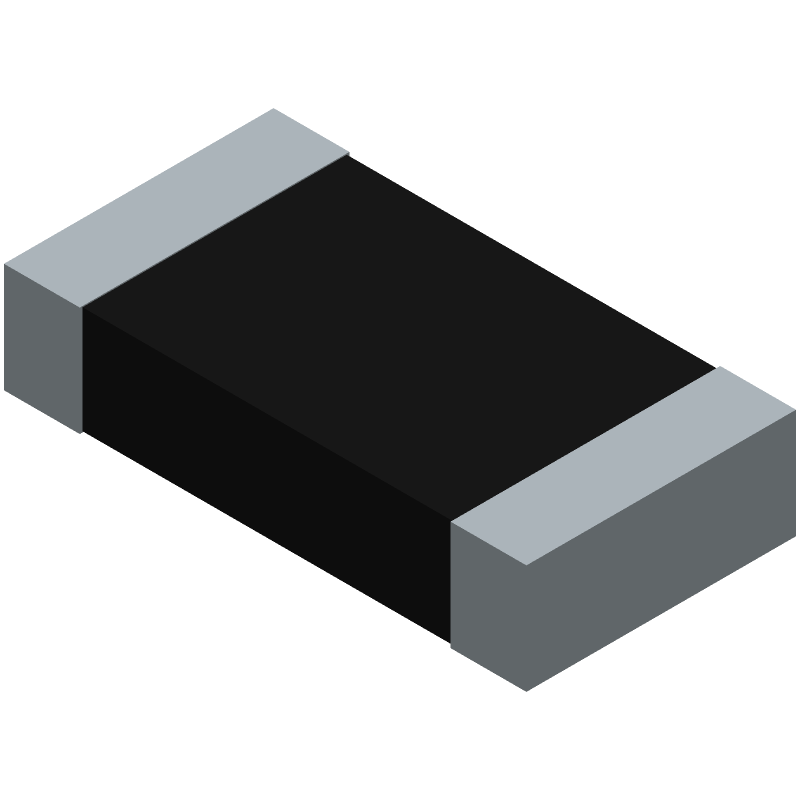

RC1206JR-070RL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RC1206JR-070RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75X0171
|
Newark | Surface Mount Thick Film Resistor, Rc Series, 250 Mw, - 5%, 200 V, 1206 [3216 Metric] Rohs Compliant: Yes |Yageo RC1206JR-070RL RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 510000 |
|
$0.0050 / $0.0060 | Buy Now |
|
DISTI #
26M6809
|
Newark | Resistor, Chip, Jumper, Zero Ohm 250Mw 5%, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Power Rating:250Mw, Current Rating:2A, Product Range:Rc Series, Product Length:3.2Mm, Product Width:1.6Mm Rohs Compliant: Yes |Yageo (Phycomp) RC1206JR-070RL RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 72700 |
|
$0.0100 / $0.0280 | Buy Now |
|
DISTI #
311-0.0ERCT-ND
|
DigiKey | RES 0 OHM JUMPER 1/4W 1206 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
616375 In Stock |
|
$0.0046 / $0.1000 | Buy Now |
|
DISTI #
RC1206JR-070RL
|
Avnet Americas | Zero Ohm Resistor, Jumper, 1206 [3216 Metric], Thick Film, 250 mW, 2 A, Surface Mount - Tape and Reel (Alt: RC1206JR-070RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel | 75000 |
|
$0.0038 / $0.0041 | Buy Now |
|
DISTI #
66R4482
|
Avnet Americas | Zero Ohm Resistor, Jumper, 1206 [3216 Metric], Thick Film, 250 mW, 2 A, Surface Mount - Tape and Reel (Alt: 66R4482) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 18 Weeks, 4 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
603-RC1206JR-070RL
|
Mouser Electronics | Thick Film Resistors - SMD 0 Ohms 250 mW 1206 5% RoHS: Compliant | 0 |
|
$0.0050 / $0.1000 | Order Now |
|
DISTI #
V36:1790_07099454
|
Arrow Electronics | Res Thick Film 1206 0 Ohm Pad SMD T/R Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks Date Code: 2326 | Americas - 515000 |
|
$0.0035 / $0.0060 | Buy Now |
|
|
Future Electronics | RC Series 1206 0.25 W 0 Ohm Jumper Surface Mount SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 18 Weeks Container: Reel | 20325000Reel |
|
$0.0033 / $0.0038 | Buy Now |
|
|
Future Electronics | RC Series 1206 0.25 W 0 Ohm Jumper Surface Mount SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks Container: Reel | 10000Reel |
|
$0.0035 / $0.0039 | Buy Now |
|
|
Future Electronics | RC Series 1206 0.25 W 0 Ohm Jumper Surface Mount SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 25000 Package Multiple: 5000 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.0035 / $0.0039 | Buy Now |
Part Details for RC1206JR-070RL
RC1206JR-070RL CAD Models
RC1206JR-070RL Part Data Attributes
|
|
RC1206JR-070RL
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
RC1206JR-070RL
YAGEO Corporation
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks, 4 Days | |
| Samacsys Manufacturer | YAGEO | |
| Additional Feature | LASER TRIMMABLE; RATED CURRENT: 2A | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.1 mm | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Resistance | ||
| Resistor Type | JUMPER | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND |
Alternate Parts for RC1206JR-070RL
This table gives cross-reference parts and alternative options found for RC1206JR-070RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC1206JR-070RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NRC-AS12ZOTRF | NIC Components Corp | $0.0034 | Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs NRC-AS12ZOTRF |
| CRG1206ZR | TE Connectivity | $0.0055 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP, ROHS COMPLIANT | RC1206JR-070RL vs CRG1206ZR |
| CR1206-J/-000ELF | Bourns Inc | $0.0076 | Fixed Resistor, Ruthenium Oxide, 0.25W, 0ohm, 5% +/-Tol, Surface Mount, 1206, CHIP, ROHS COMPLIANT | RC1206JR-070RL vs CR1206-J/-000ELF |
| CRCW12060000Z0EAC | Vishay Intertechnologies | $0.0098 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs CRCW12060000Z0EAC |
| RC1206JR-130RL | YAGEO Corporation | $0.0119 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs RC1206JR-130RL |
| CRCW12060000Z0EBC | Vishay Intertechnologies | $0.0225 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs CRCW12060000Z0EBC |
| RCG12060000Z0EA | Vishay Intertechnologies | $0.0418 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs RCG12060000Z0EA |
| RC1206JR-070RP | YAGEO Corporation | $0.0485 | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs RC1206JR-070RP |
| AR1206JR-070RL | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 0ohm, Surface Mount, 1206, CHIP | RC1206JR-070RL vs AR1206JR-070RL |
RC1206JR-070RL Frequently Asked Questions (FAQ)
-
The thermal resistance of the RC1206JR-070RL is typically around 200-250°C/W, but this value can vary depending on the specific application and operating conditions.
-
Yes, the RC1206JR-070RL is suitable for high-frequency applications up to several hundred MHz due to its low inductance and high-frequency stability.
-
Yes, the RC1206JR-070RL is rated for operation up to 155°C, making it suitable for high-temperature environments. However, derating may be necessary for extended operation at high temperatures.
-
Yes, the RC1206JR-070RL is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The RC1206JR-070RL has a moisture sensitivity level (MSL) of 1, indicating that it can withstand normal humidity levels without special handling or storage precautions.
