Part Details for RC0S2CA10R0JET by Ohmite Mfg Co
Results Overview of RC0S2CA10R0JET by Ohmite Mfg Co
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RC0S2CA10R0JET Information
RC0S2CA10R0JET by Ohmite Mfg Co is a Carbon Composition Resistor.
Carbon Composition Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RC0S2CA10R0JET
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51M1656
|
Newark | Resistor, carbon Composition,10Ohms,250Wv,5+/-% Tol,-400,400Ppm-Tc,3916-Case |Ohmite RC0S2CA10R0JET RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
|
Onlinecomponents.com | Res Carbon Composition 10 Ohm 5% 0.25W(1/4W) ±400ppm/°C J-Lead SMD T/R RoHS: Compliant | Alternative Product Available |
|
$0 | Buy Now |
Part Details for RC0S2CA10R0JET

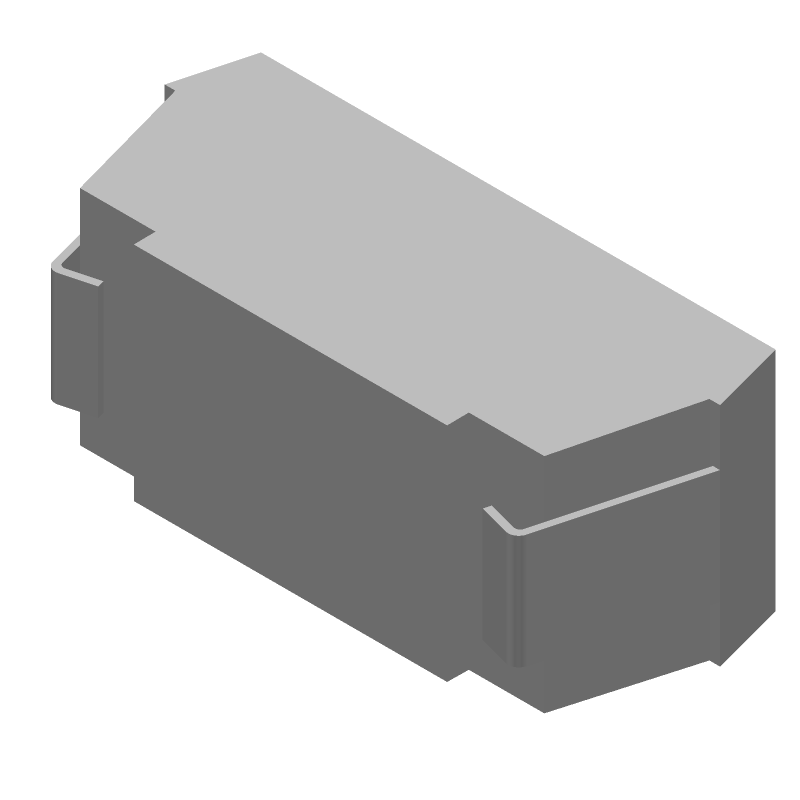

RC0S2CA10R0JET CAD Models
RC0S2CA10R0JET Part Data Attributes
|
|
RC0S2CA10R0JET
Ohmite Mfg Co
Buy Now
Datasheet
|
Compare Parts:
RC0S2CA10R0JET
Ohmite Mfg Co
RESISTOR, CARBON COMPOSITION, 0.25W, 5%, 400ppm, 10ohm, SURFACE MOUNT, 3916, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | OHMITE MANUFACTURING CO | |
| Package Description | CHIP, ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.10.00.42 | |
| Samacsys Manufacturer | Ohmite | |
| Manufacturer Series | RC | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | TR, 13 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 25 °C | |
| Resistance | 10 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 3916 | |
| Surface Mount | YES | |
| Technology | CARBON COMPOSITION | |
| Temperature Coefficient | 400 ppm/°C | |
| Terminal Shape | J BEND | |
| Tolerance | 5% | |
| Working Voltage | 250 V |
Alternate Parts for RC0S2CA10R0JET
This table gives cross-reference parts and alternative options found for RC0S2CA10R0JET. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0S2CA10R0JET, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RC0S2CA10R0JE | Ohmite Mfg Co | Check for Price | RESISTOR, CARBON COMPOSITION, 0.25W, 5%, 400ppm, 10ohm, SURFACE MOUNT, 3916, CHIP, ROHS COMPLIANT | RC0S2CA10R0JET vs RC0S2CA10R0JE |
