Resistors / Metal Glaze/Thick Film Resistors / RC0805JR-07110KL
Datasheets
RC0805JR-07110KL by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RC0805JR-07110KL by YAGEO Corporation

Results Overview of RC0805JR-07110KL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0805JR-07110KL Information

RC0805JR-07110KL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0805JR-07110KL

Part # Distributor Description Stock Price Buy
DISTI # 311-110KARCT-ND
DigiKey RES 110K OHM 5% 1/8W 0805 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 52133
In Stock
  • 1 $0.1000
  • 10 $0.0130
  • 50 $0.0112
  • 100 $0.0092
  • 500 $0.0087
  • 1,000 $0.0082
  • 5,000 $0.0051
  • 10,000 $0.0041
  • 15,000 $0.0036
  • 25,000 $0.0031
$0.0031 / $0.1000 Buy Now
DISTI # RC0805JR-07110KL
Avnet Americas SMD Chip Resistor, 110 kOhm, ? 5%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC0805JR-07110KL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0019
  • 10,000 $0.0019
  • 20,000 $0.0018
  • 30,000 $0.0018
  • 40,000 $0.0018
$0.0018 / $0.0019 Buy Now
DISTI # 603-RC0805JR-07110KL
Mouser Electronics Thick Film Resistors - SMD 110 kOhms 125 mW 0805 5% RoHS: Compliant 10337
  • 1 $0.1000
  • 10 $0.0110
  • 100 $0.0080
  • 5,000 $0.0050
  • 10,000 $0.0040
  • 100,000 $0.0030
$0.0030 / $0.1000 Buy Now
DISTI # V72:2272_07092449
Arrow Electronics Res Thick Film 0805 110K Ohm 5% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1823 Container: Cut Strips Americas - 8167
  • 1 $0.0040
  • 10 $0.0036
  • 25 $0.0032
  • 100 $0.0028
  • 250 $0.0023
  • 500 $0.0019
  • 1,000 $0.0015
  • 3,000 $0.0011
$0.0011 / $0.0040 Buy Now
DISTI # RC0805JR-07110KL
TTI Thick Film Resistors - SMD 110 kOhms 125 mW 0805 5% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 75000
In Stock
  • 5,000 $0.0049
$0.0049 Buy Now
DISTI # RC0805JR-07110K
TME Resistor: thick film, SMD, 0805, 110kΩ, 0.125W, ±5%, -55÷155°C Min Qty: 100 4400
  • 100 $0.0072
  • 1,000 $0.0028
  • 5,000 $0.0022
$0.0022 / $0.0072 Buy Now
DISTI # RC0805JR-07110KL
Avnet Abacus SMD Chip Resistor 110 kOhm 5 125 mW 0805 2012 Metric Thick Film General Purpose - Tape and Reel (Alt: RC0805JR-07110KL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # RMC0805-110K-Y
Maritex Chip Resistor, SMD, 0805, 110K, 5%, 1/8W Min Qty: 100 Package Multiple: 100 26620
  • 1 $0.0140
  • 10 $0.0120
  • 100 $0.0080
  • 500 $0.0080
  • 1,000 $0.0070
  • 5,000 $0.0040
  • 10,000 $0.0040
  • 25,000 $0.0030
$0.0030 / $0.0140 Buy Now
Vyrian Resistors 29794
RFQ

Part Details for RC0805JR-07110KL

RC0805JR-07110KL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

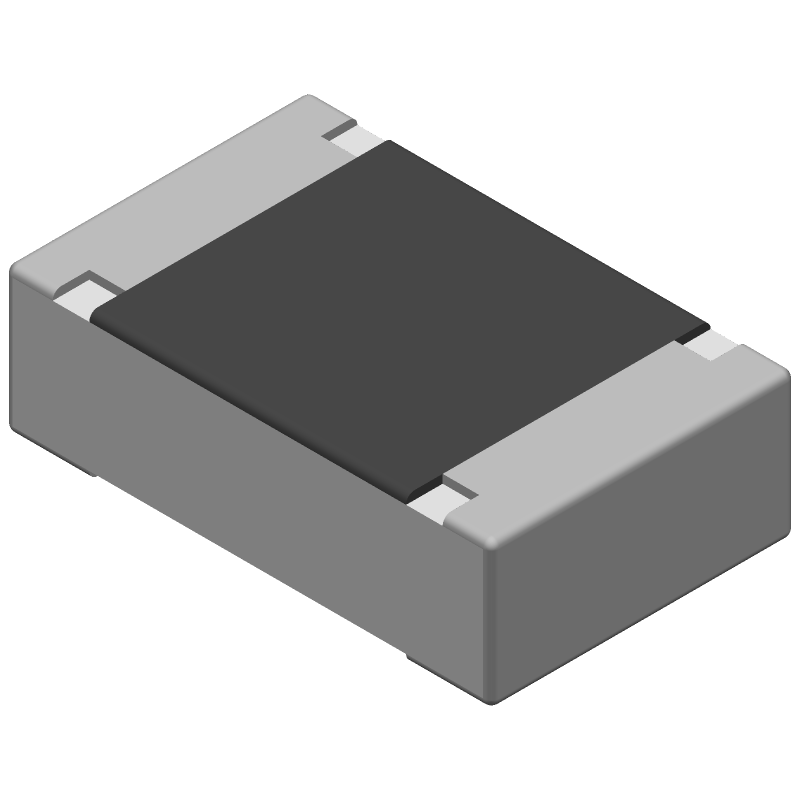

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0805JR-07110KL Part Data Attributes

Parametric Data
RC0805JR-07110KL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0805JR-07110KL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 28 Weeks
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 110000 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 150 V

Alternate Parts for RC0805JR-07110KL

This table gives cross-reference parts and alternative options found for RC0805JR-07110KL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0805JR-07110KL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RS05K114JTG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 110000ohm, 200V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC0805JR-07110KL vs RS05K114JTG
CTTKFR0805JTE1103 Central Technologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RC0805JR-07110KL vs CTTKFR0805JTE1103
NRC-AS10J114TRQYF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, RC0805JR-07110KL vs NRC-AS10J114TRQYF
RTT05114JP3 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RC0805JR-07110KL vs RTT05114JP3
RS05K1103JBG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 110000ohm, 200V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC0805JR-07110KL vs RS05K1103JBG
RS05K114JBG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 110000ohm, 200V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC0805JR-07110KL vs RS05K114JBG
232273011114 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RC0805JR-07110KL vs 232273011114
RS05K1103JBL Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 110000ohm, 200V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC0805JR-07110KL vs RS05K1103JBL
RC0805J114-07-T70 Taitron Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-07110KL vs RC0805J114-07-T70
CR-05JLB--110K Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 110000ohm, 150V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-07110KL vs CR-05JLB--110K

RC0805JR-07110KL Related Parts

RC0805JR-07110KL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RC0805JR-07110KL is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, RC0805JR-07110KL is compatible with lead-free soldering and is RoHS compliant.

  • The MSL of RC0805JR-07110KL is level 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment.

  • While RC0805JR-07110KL is a general-purpose resistor, it is not recommended for high-frequency applications above 100 MHz due to its construction and materials.

  • The power rating of RC0805JR-07110KL decreases with temperature. At 70°C, the power rating is 0.125W, and at 50°C, it is 0.25W.
